Component Locations

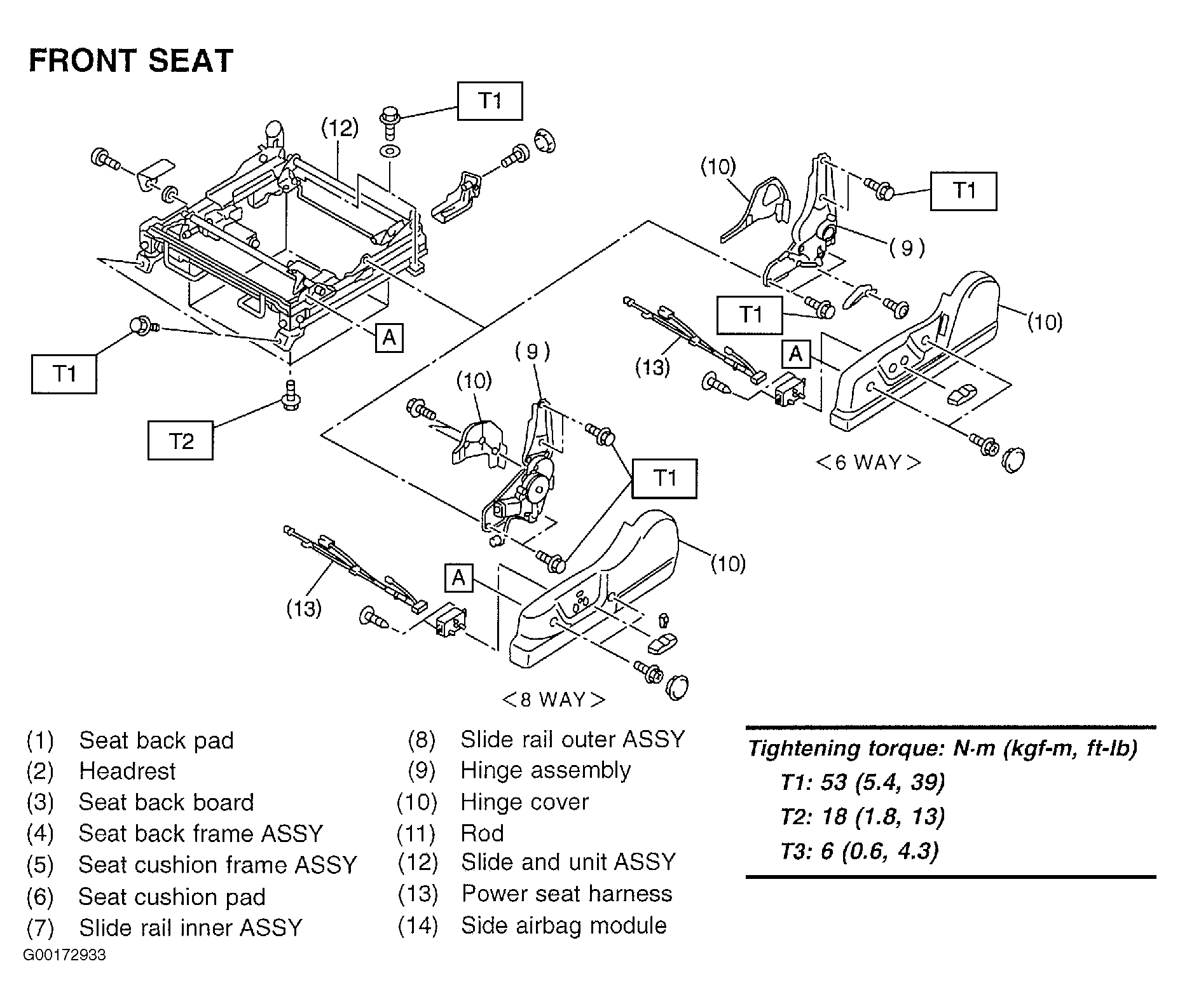

Fig 1: Locating Front Seat Components (Power Seats)
G00172933Courtesy of SUBARU OF AMERICA, INC.
