Check Door Lock Switch And Circuit
Check Door Lock Switch And Circuit

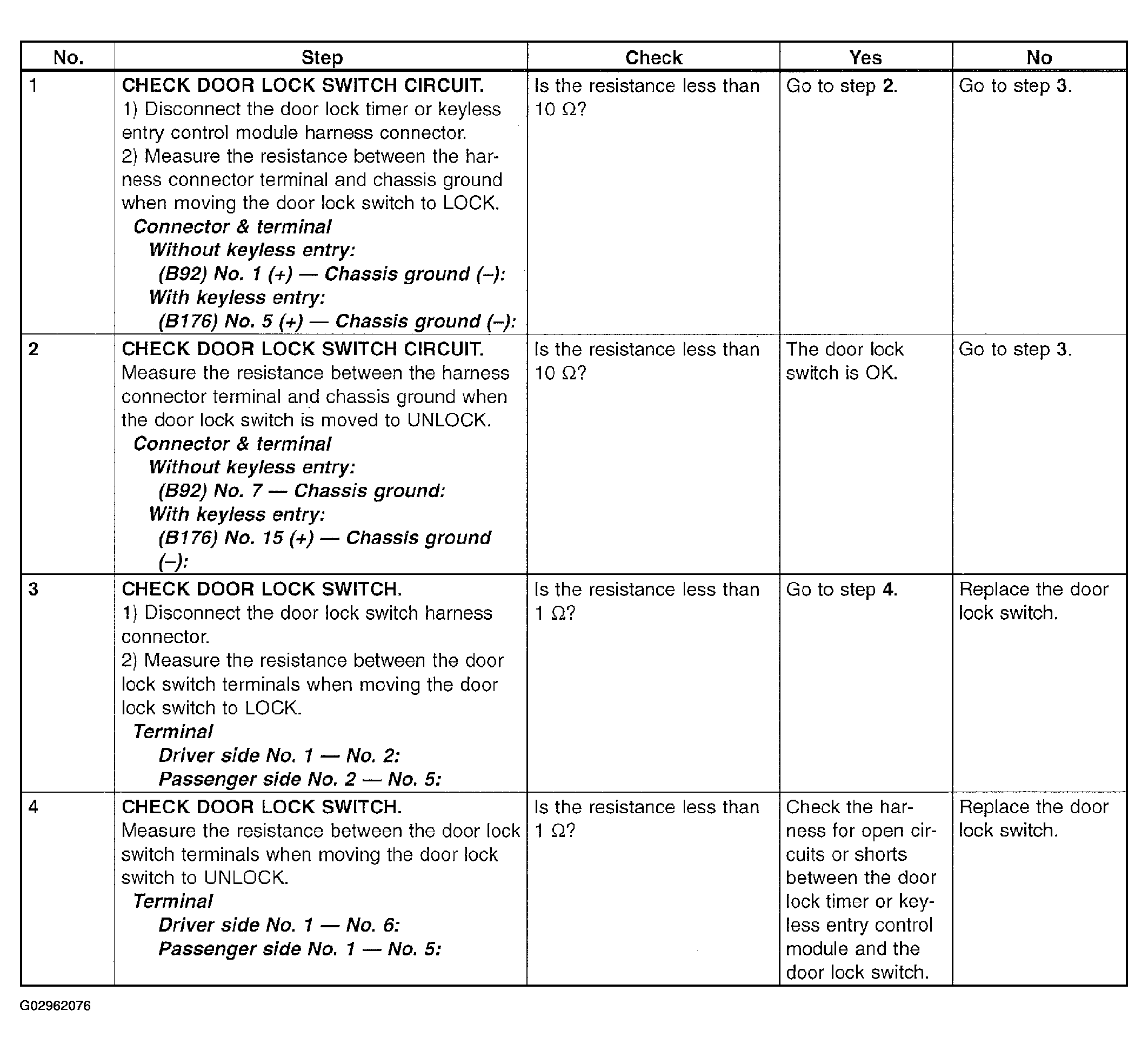

Fig 1: Checking Door Lock Switch & Circuit Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
