Symptom Chart

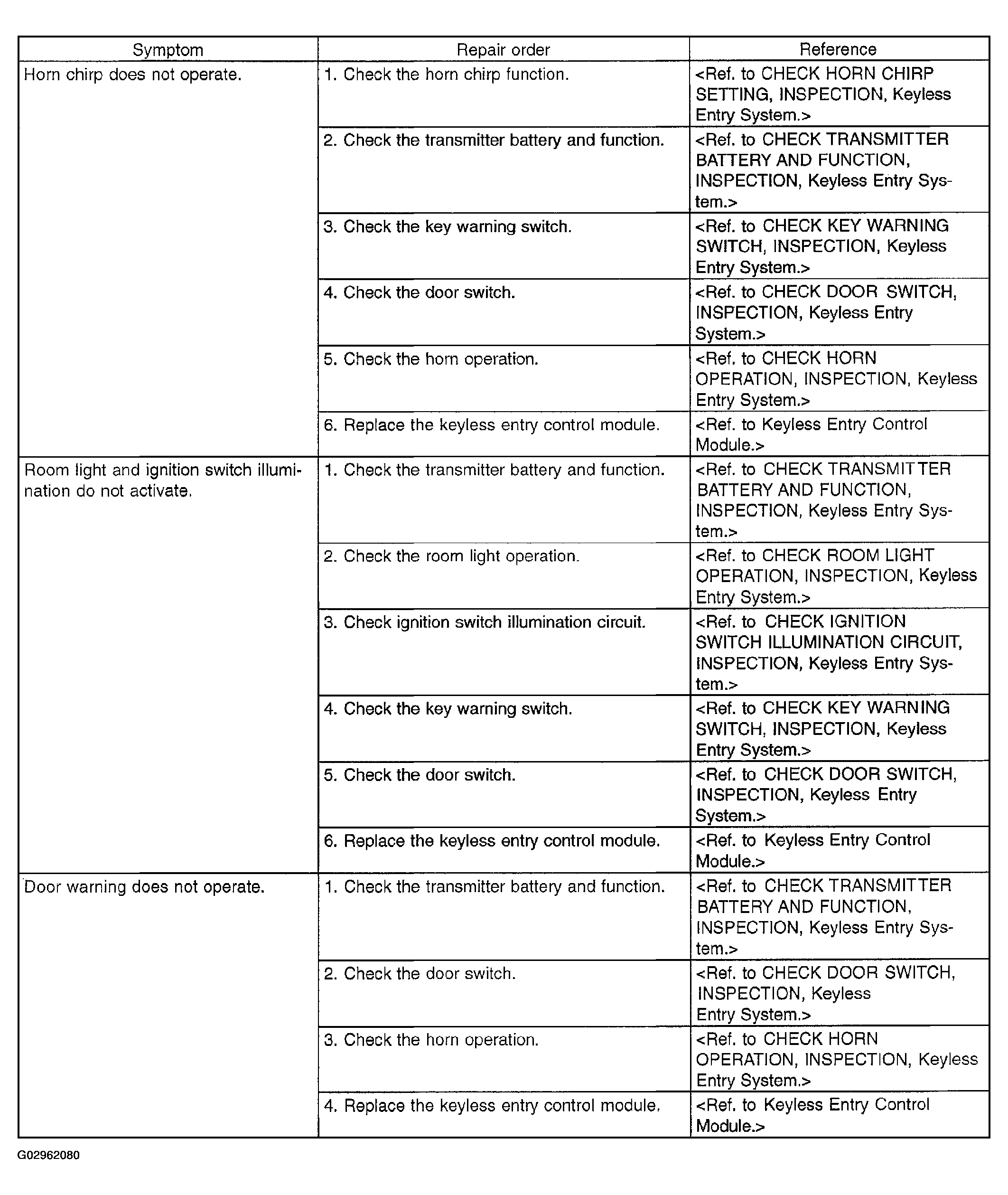

Fig 1: Inspection Symptom Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

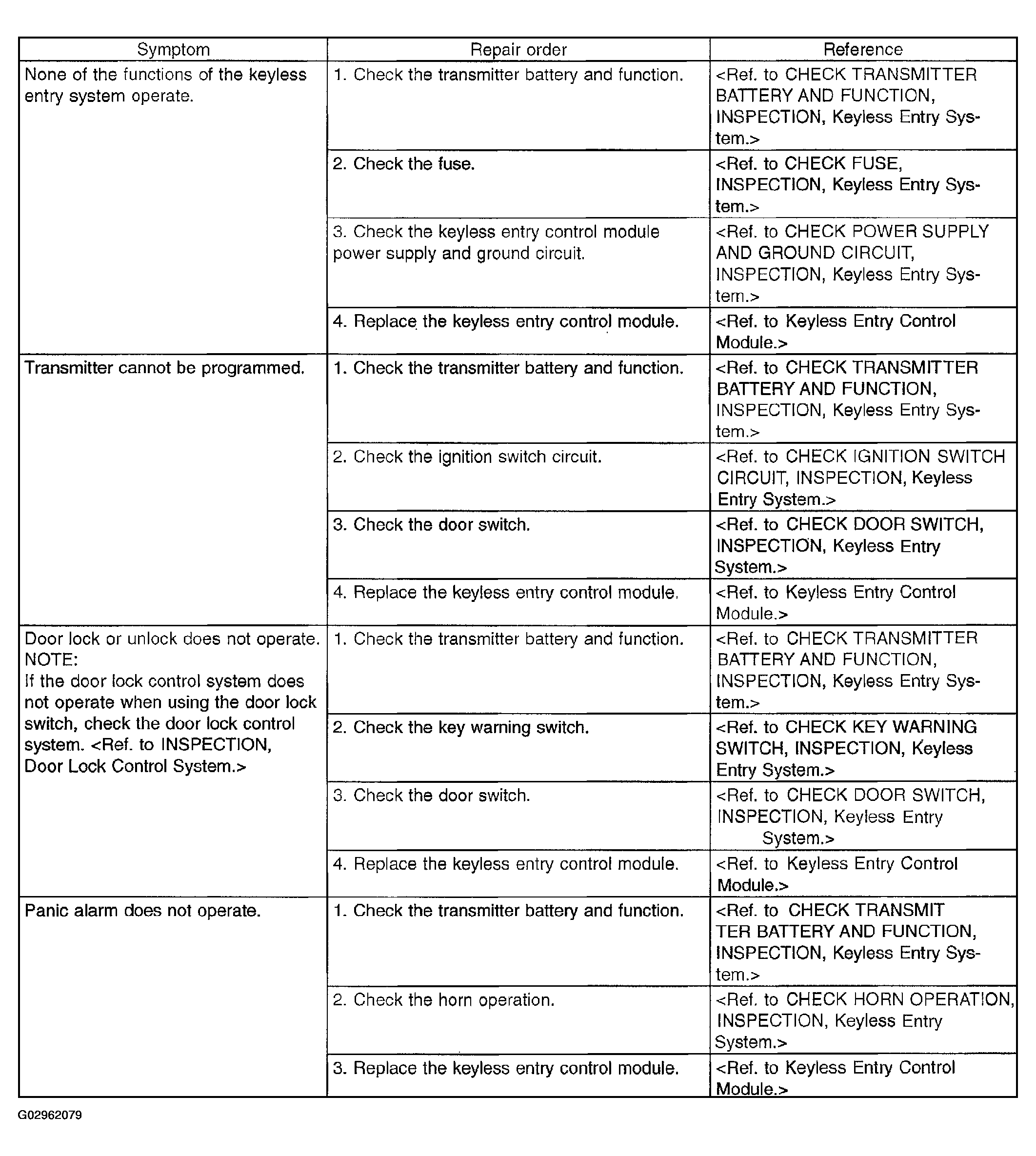

Fig 2: Inspection Symptom Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
