Control Module I/O Signal: Schematic

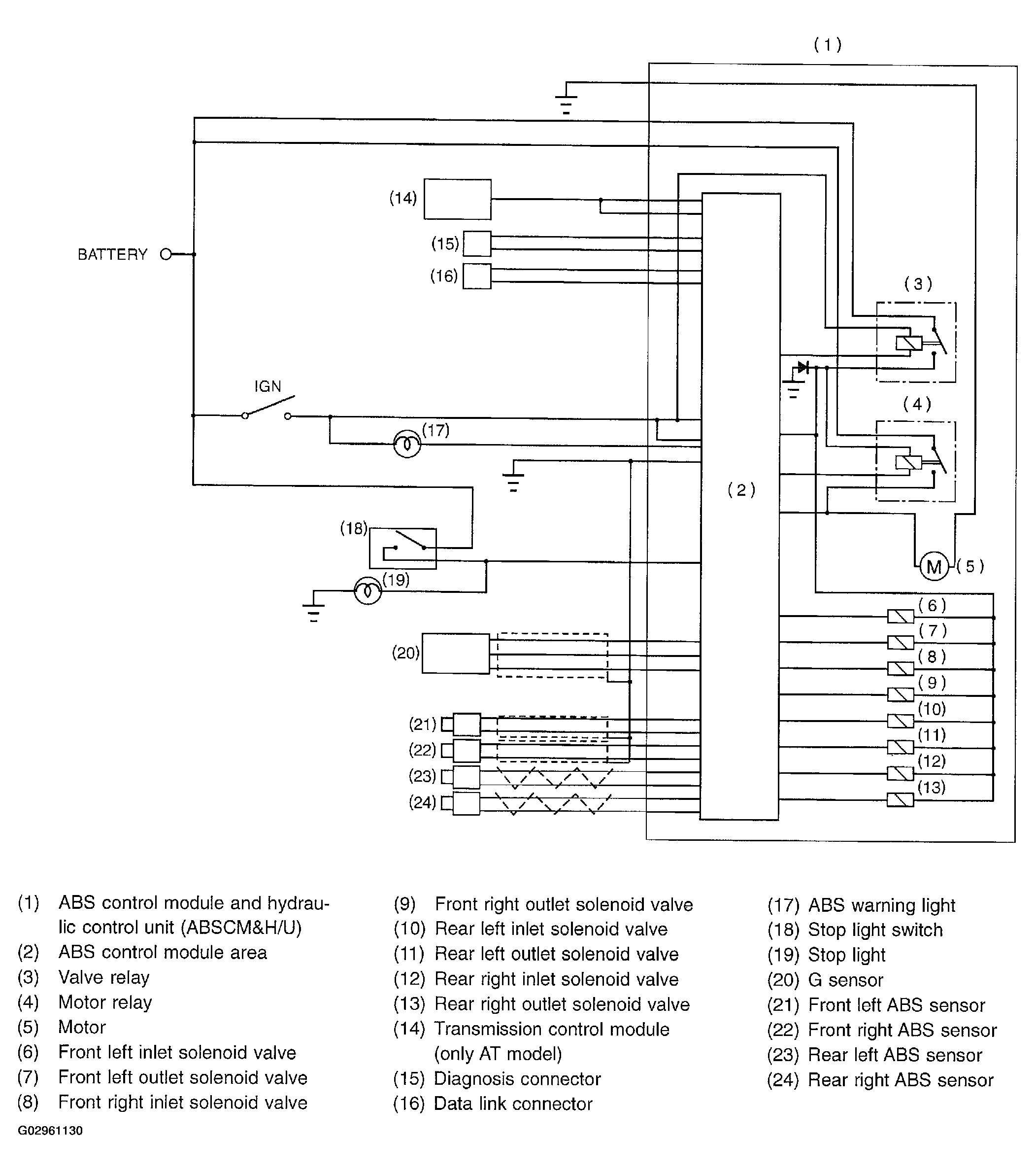

Fig 1: Control Module I/O Signal Schematic Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
