G Sensor: Removal

  1. Disconnect battery ground cable.

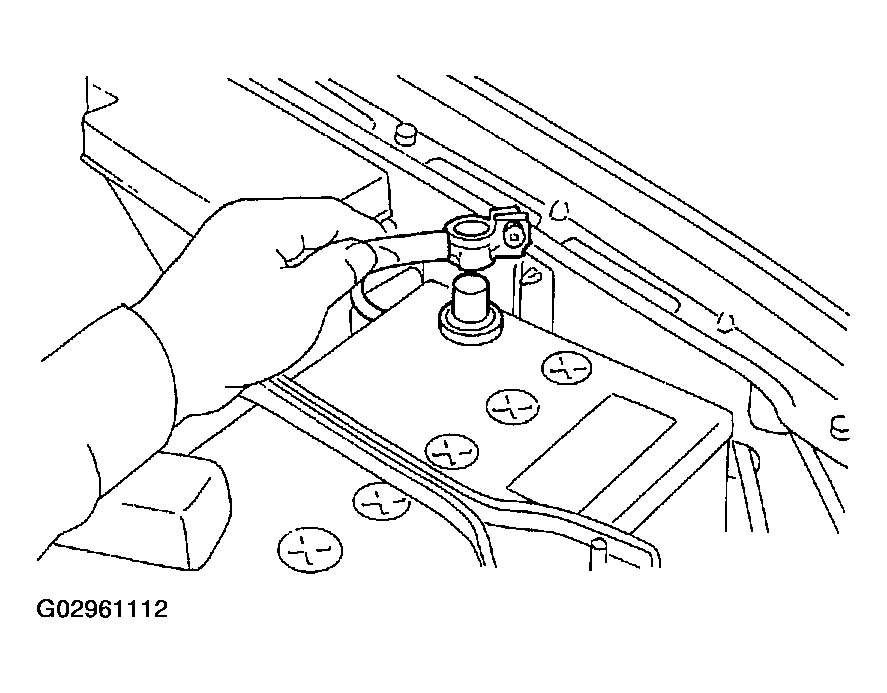

    Fig 1: Disconnecting Battery Ground Cable
    G02961112Courtesy of SUBARU OF AMERICA, INC.
  2. Remove console cover. Refer to CONSOLE BOX .
  3. Disconnect connector from G sensor.
  4. Remove G sensor from body.
    CAUTION: Do not drop or bump G sensor.
    Fig 2: Disconnecting Connector From G Sensor
    G02961113Courtesy of SUBARU OF AMERICA, INC.
