Rack Housing Assembly

  1. Disconnect four pipes from gearbox.
  2. Secure gearbox removed from vehicle in vise using ST.

    ST 926200000 STAND

    CAUTION: Secure the gearbox in a vise using the ST as shown. Do not attempt to secure it without this ST.
    Fig 1: Disassembling Rack Housing Assembly
    G02964654Courtesy of SUBARU OF AMERICA, INC.
  3. Remove tie-rod end and lock nut from gearbox.
  4. Remove small clip from boot using pliers, and move boot to tie-rod end side.
    Fig 2: Removing Boot Clip
    G02964655Courtesy of SUBARU OF AMERICA, INC.
  5. Remove boot with large clips.
    Fig 3: Removing Boot With Large Clips
    G02964656Courtesy of SUBARU OF AMERICA, INC.
  6. Extend rack approximately 40 mm (1.57 in) out. Unlock lock wire at lock washer on each side of tie-rod end using a standard screwdriver.
    CAUTION: Be careful not to scratch rack surface as oil leaks may result.
    Fig 4: Removing Lock Washer
    G02964657Courtesy of SUBARU OF AMERICA, INC.
  7. Using ST, loosen lock nut.

    ST 926230000 SPANNER

    Fig 5: Loosening Lock Nut Using ST
    G02964658Courtesy of SUBARU OF AMERICA, INC.
  8. Tighten adjusting screw until it no longer tightens.
    Fig 6: Tightening Adjusting Screw
    G02964659Courtesy of SUBARU OF AMERICA, INC.
  9. Using a wrench [32 mm (1.26 in) width across flats] or adjustable wrench, remove tie-rod.
    CAUTION:
    • Check ball joint for free play, and tie-rod for bends. Replace if necessary.
    • Check dust seals used with tie-rod end ball joint for damage or deterioration. Replace if necessary.

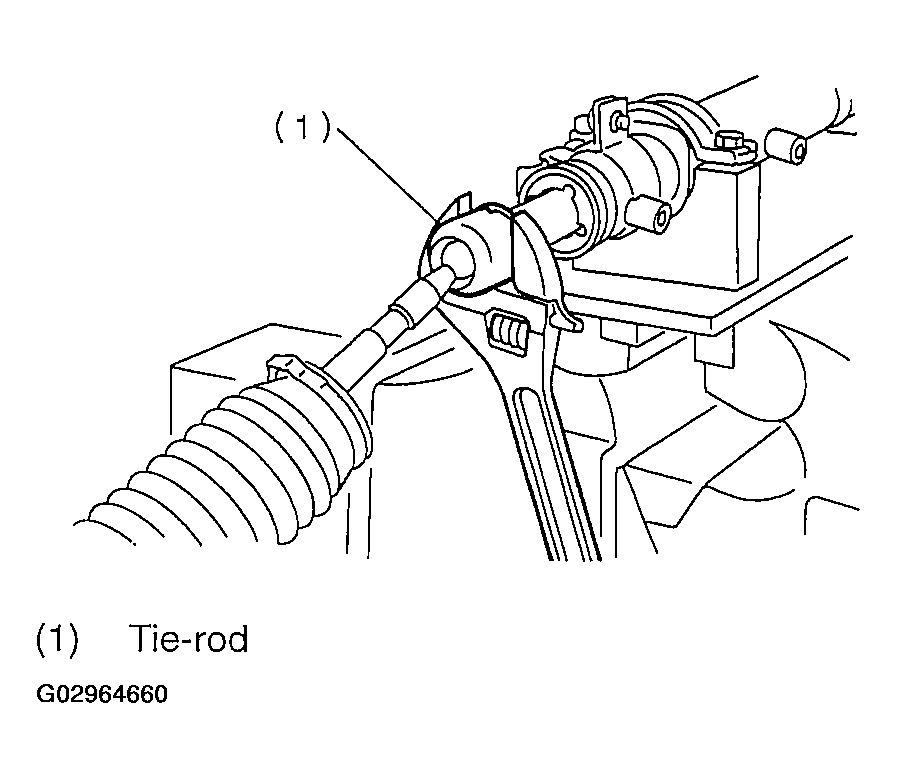

    Fig 7: Removing Tie-Rod
    G02964660Courtesy of SUBARU OF AMERICA, INC.
  10. Loosen adjusting screw and remove spring and sleeve.
    CAUTION: Replace spring and/or sleeve if damaged.
    Fig 8: Removing Spring & Sleeve
    G02964661Courtesy of SUBARU OF AMERICA, INC.
  11. Remove two bolts securing valve assembly.
    Fig 9: Removing Bolts Securing Valve Assembly
    G02964662Courtesy of SUBARU OF AMERICA, INC.
  12. Carefully draw out input shaft and remove valve assembly.
    Fig 10: Removing Valve Assembly
    G02964663Courtesy of SUBARU OF AMERICA, INC.
  13. Using a sharp pointed pliers, rotate the rack stopper in the direction of the arrow until the end of the circlip comes out of the stopper. Rotate the circlip in the opposite direction and pull it out.

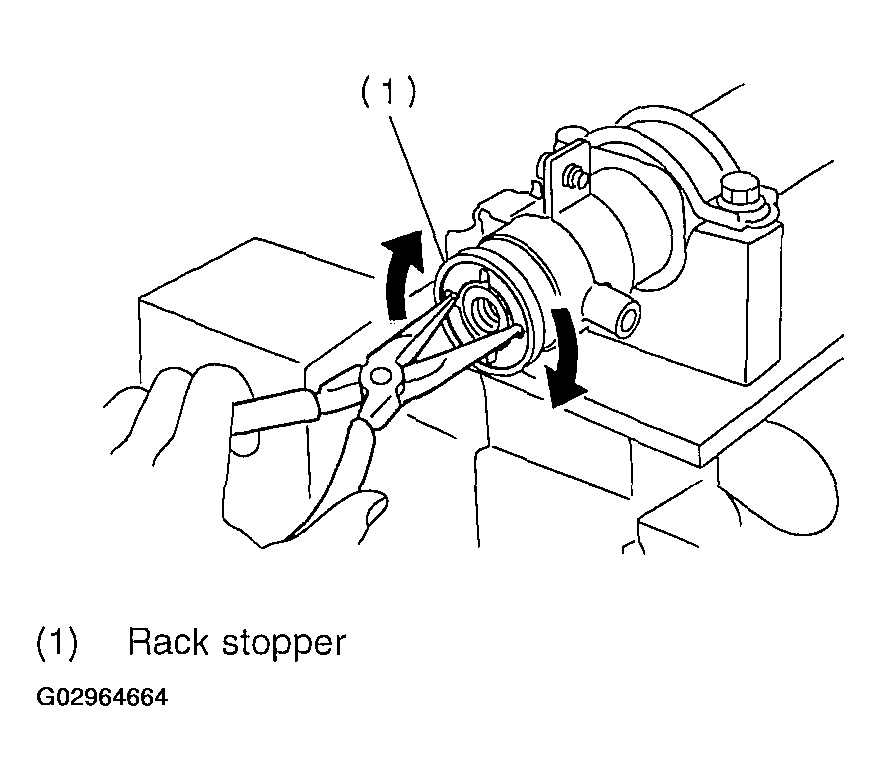

    Fig 11: Rotating Rack Stopper
    G02964664Courtesy of SUBARU OF AMERICA, INC.
  14. Pull rack assembly from cylinder side, and draw out rack bushing and rack stopper together with rack assembly.
    CAUTION: Be careful not to contact rack to inner wall of cylinder when drawing out. Any scratch on cylinder inner wall will cause oil leakage.
    Fig 12: Pulling Rack Assembly From Cylinder Side
    G02964665Courtesy of SUBARU OF AMERICA, INC.
  15. Remove rack bushing and rack stopper from rack assembly.
    CAUTION: Do not reuse removed rack bushing and circlip.
  16. Insert ST from pinion housing side and remove oil seal using a press.

    ST 34199AE050 OIL SEAL REMOVER

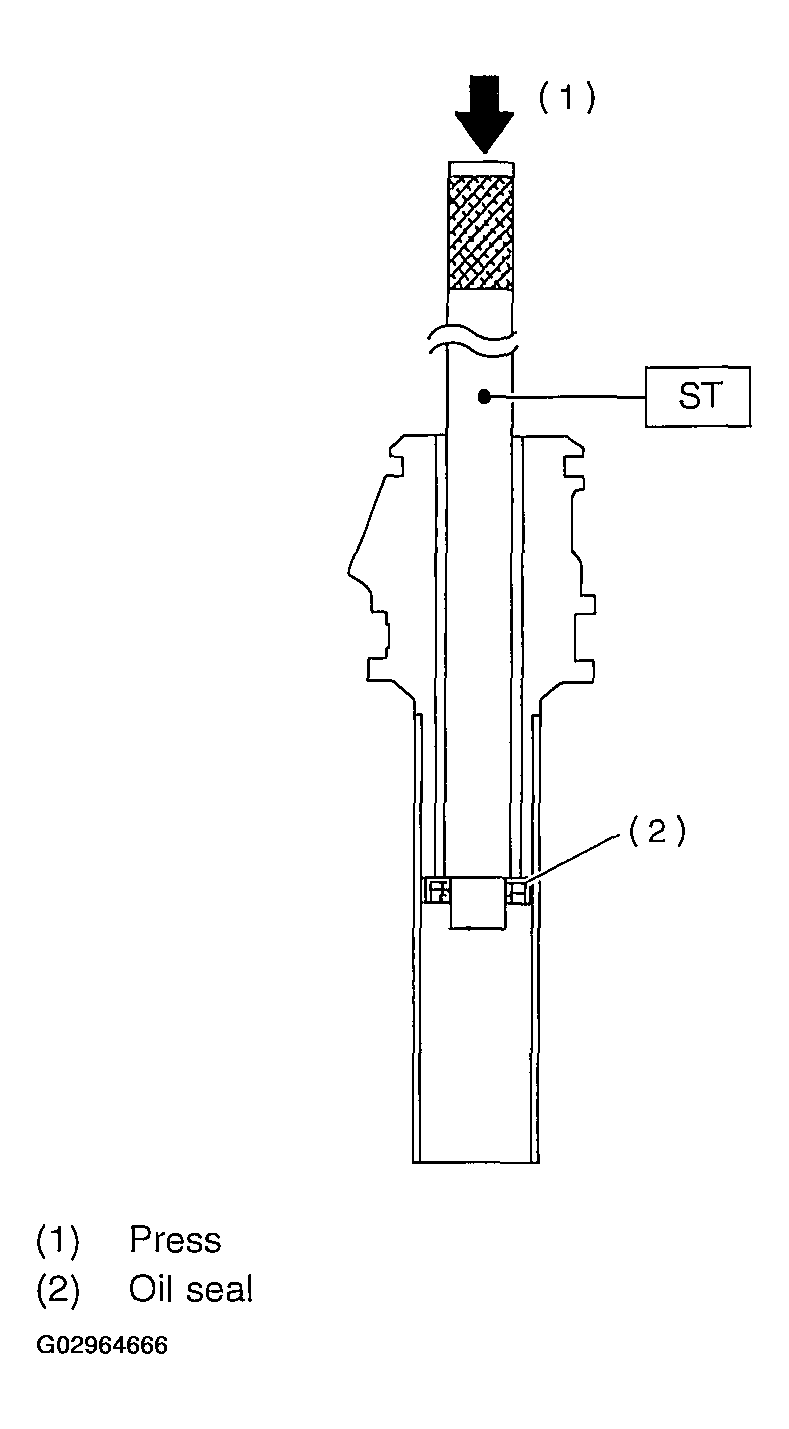

    Fig 13: Removing Oil Seal Using Press
    G02964666Courtesy of SUBARU OF AMERICA, INC.
NOTE: Discard removed oil seal.
