Dropping Resistor: Inspection

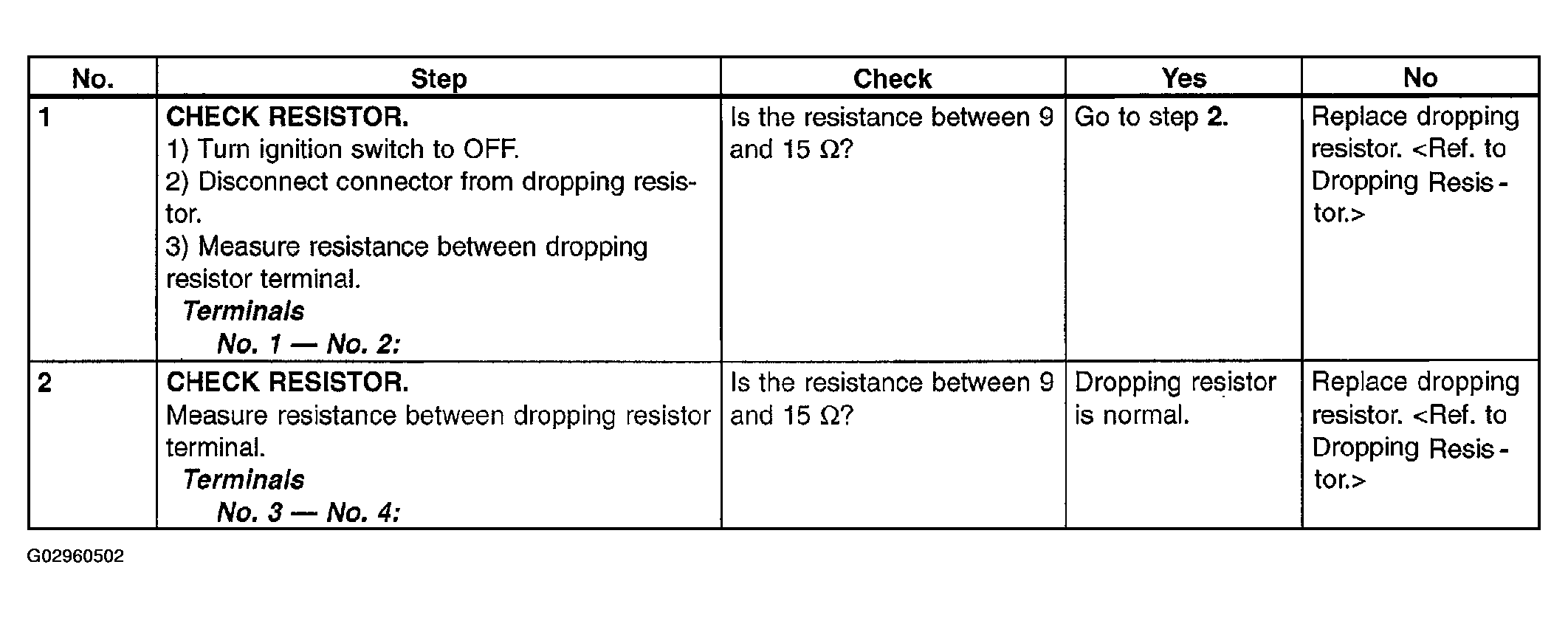

Fig 1: Dropping Resistor Inspection Chart
G02960502Courtesy of SUBARU OF AMERICA, INC.
