At Shift Lock Control Module Power Supply And Ground Line

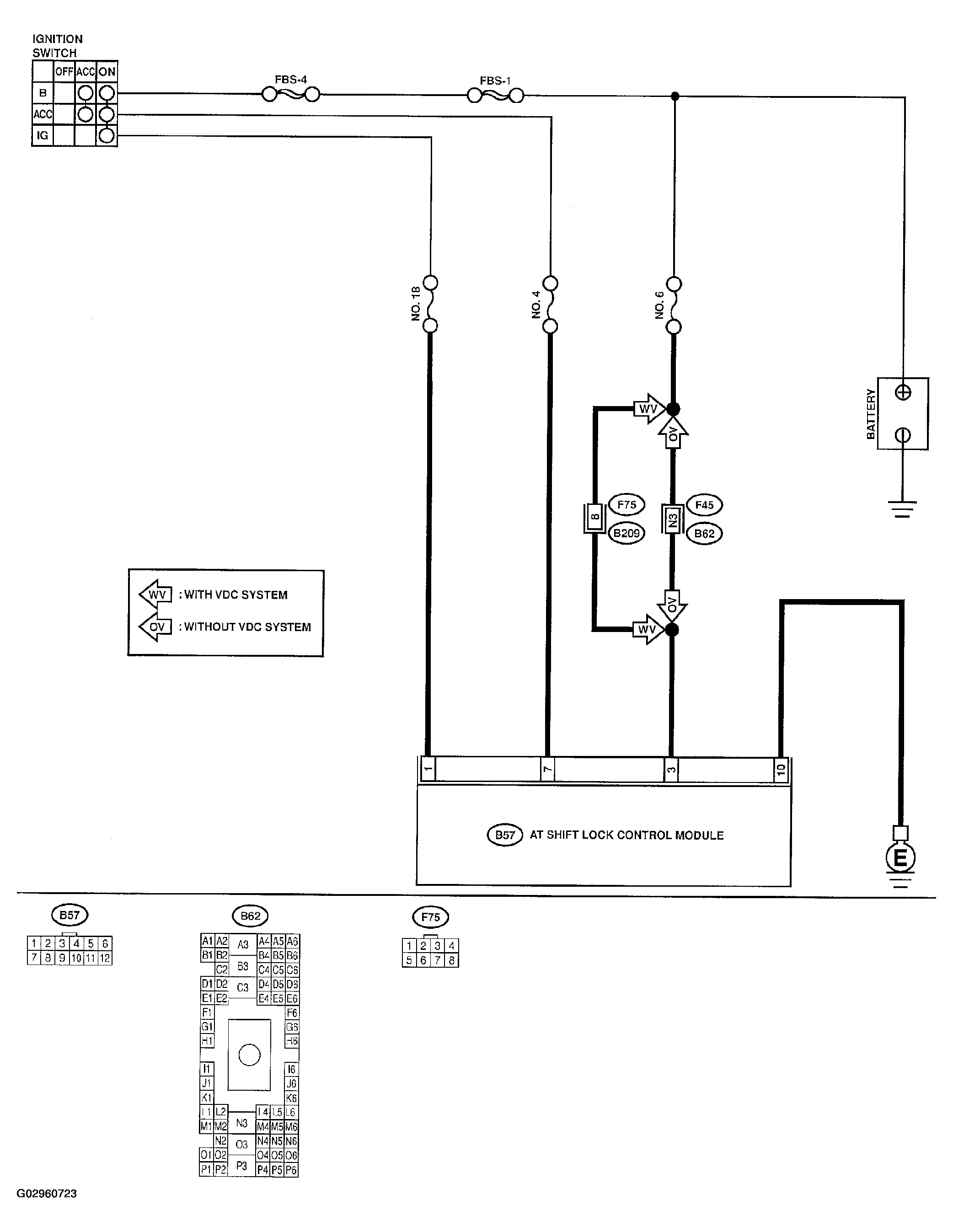

Fig 1: AT Shift Lock Control Module Power Supply & Ground Line Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

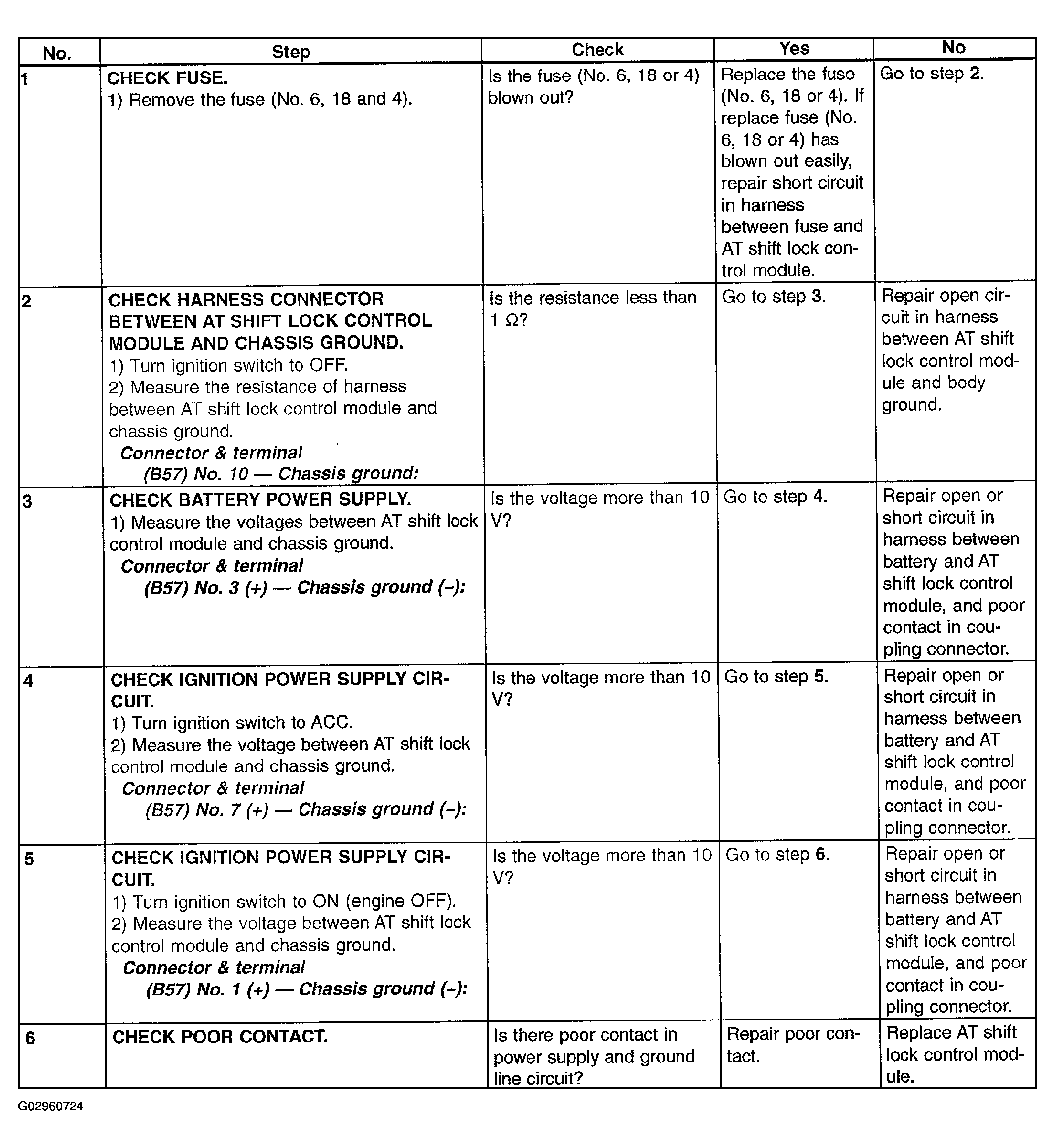

Fig 2: AT Shift Lock Control Module Power Supply & Ground Line Inspection Chart

Courtesy of SUBARU OF AMERICA, INC.
