Select Lever Cannot Be Shift Locked

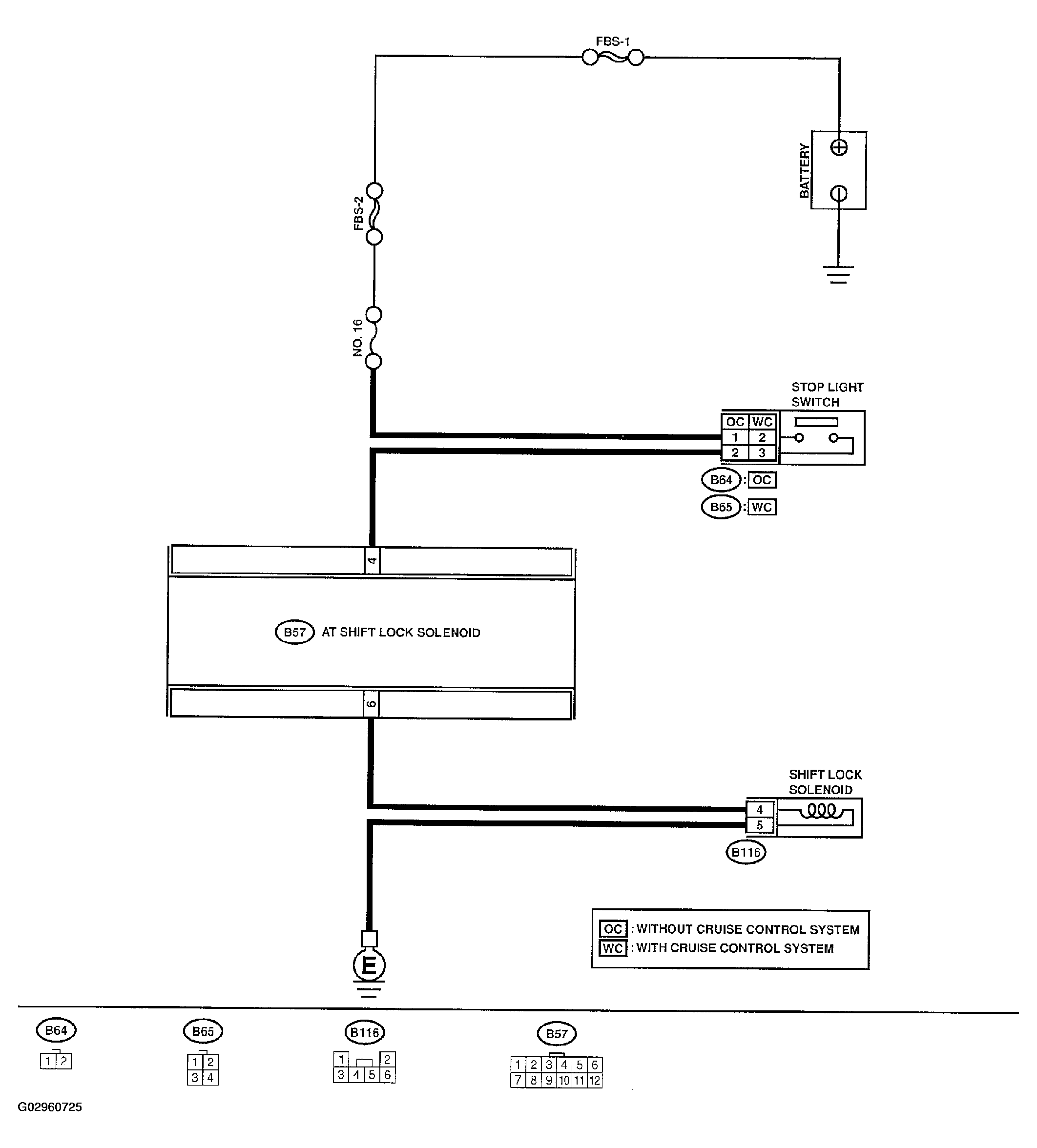

Fig 1: Select Lever Cannot Be Shift Locked Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

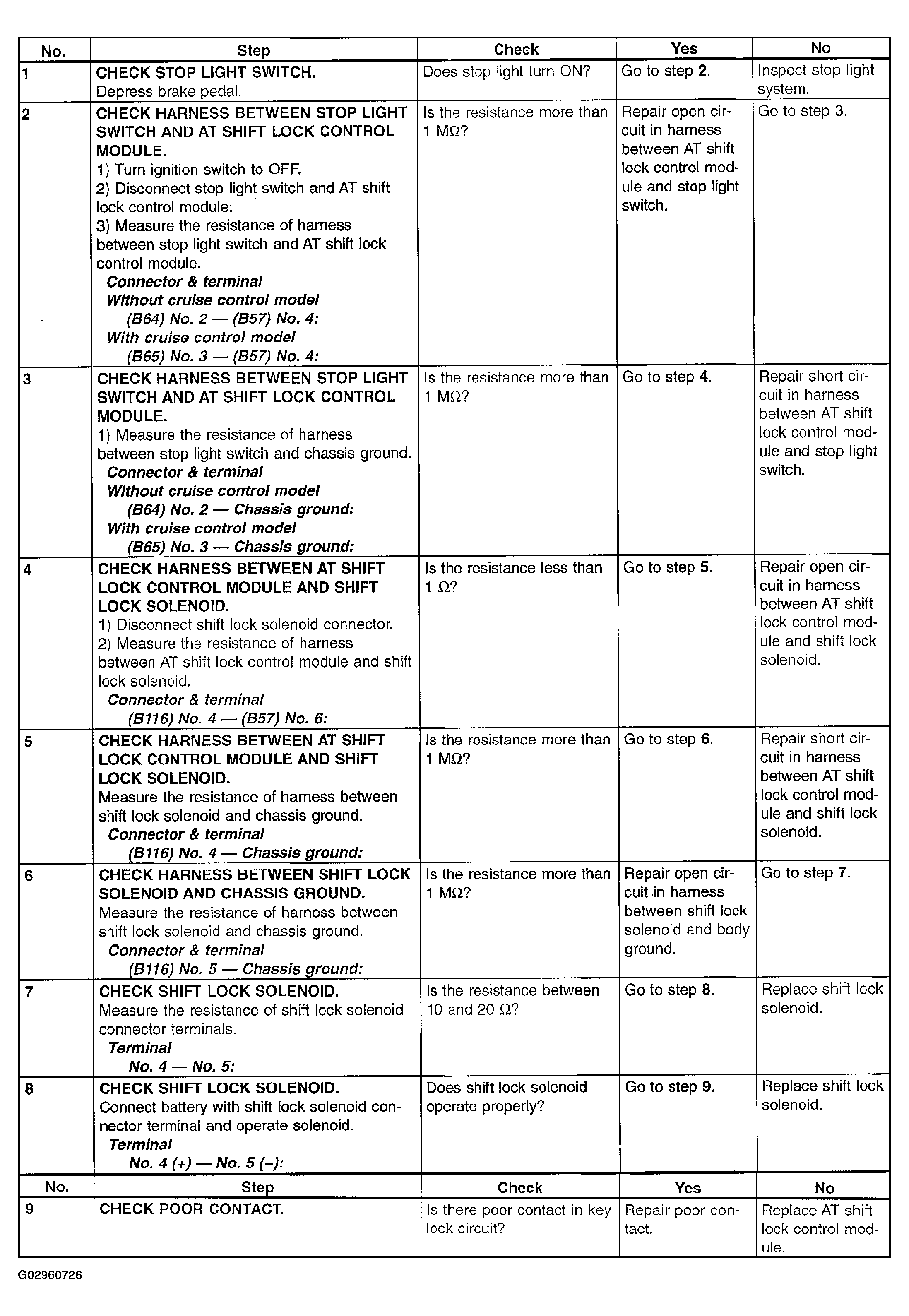

Fig 2: Select Lever Cannot Be Shift Locked Inspection Chart

Courtesy of SUBARU OF AMERICA, INC.
