Check Output Signal To Integrated Module

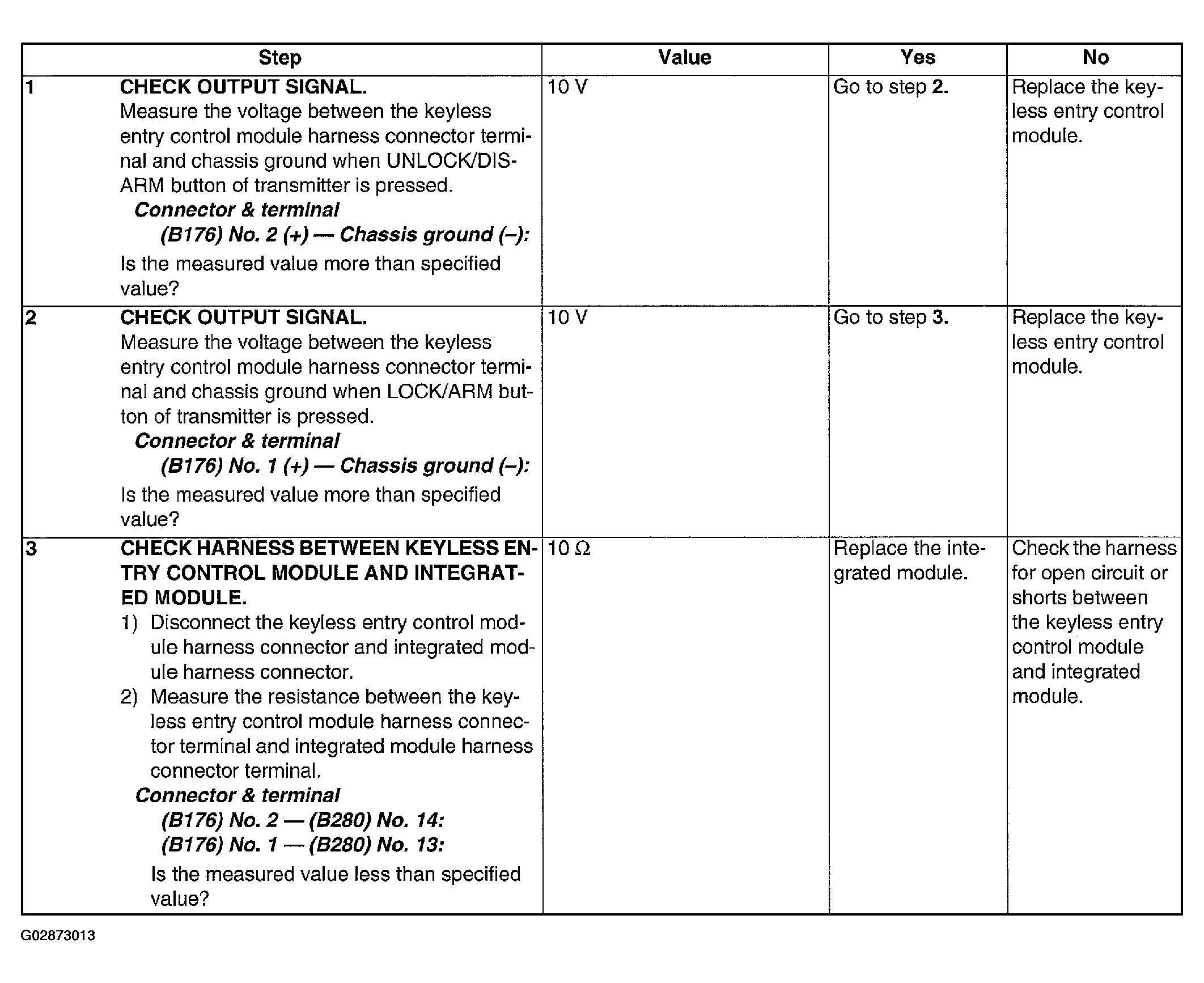

Fig 1: Checking Output Signal To Integrated Module Chart
G02873013Courtesy of SUBARU OF AMERICA, INC.
