Main Switch

  1. Remove two hooks (A) of switch panel to remove power window main switch.

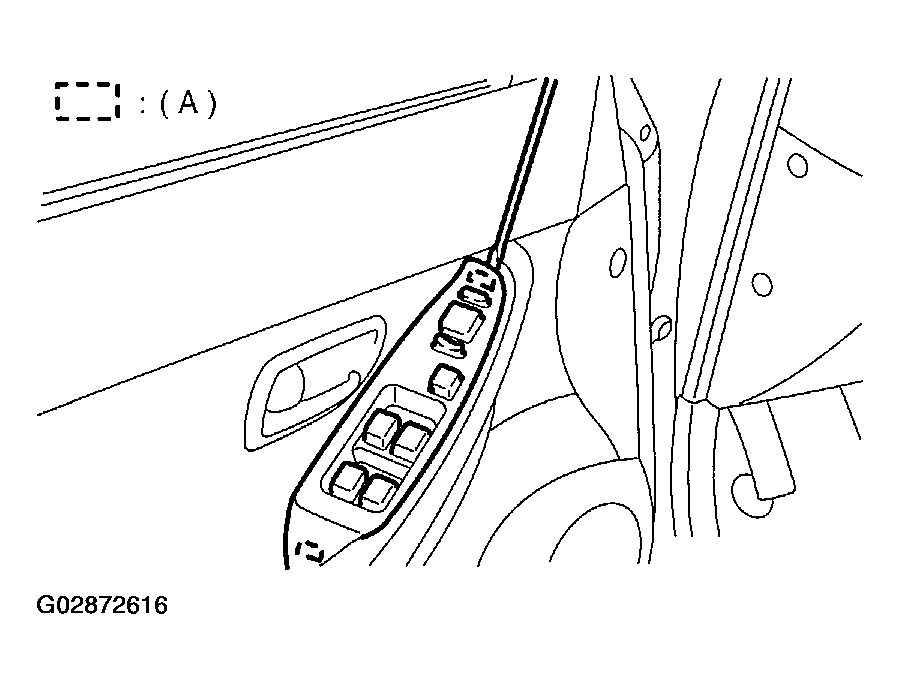

    Fig 1: Removing Two Hooks Of Switch Panel
    G02872616Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect electrical connectors from power window main switch and mirror switch.
    Fig 2: Disconnecting Electrical Connectors From Power Window Main Switch
    G02872617Courtesy of SUBARU OF AMERICA, INC.
