G Sensor: Removal

  1. Disconnect battery ground cable.

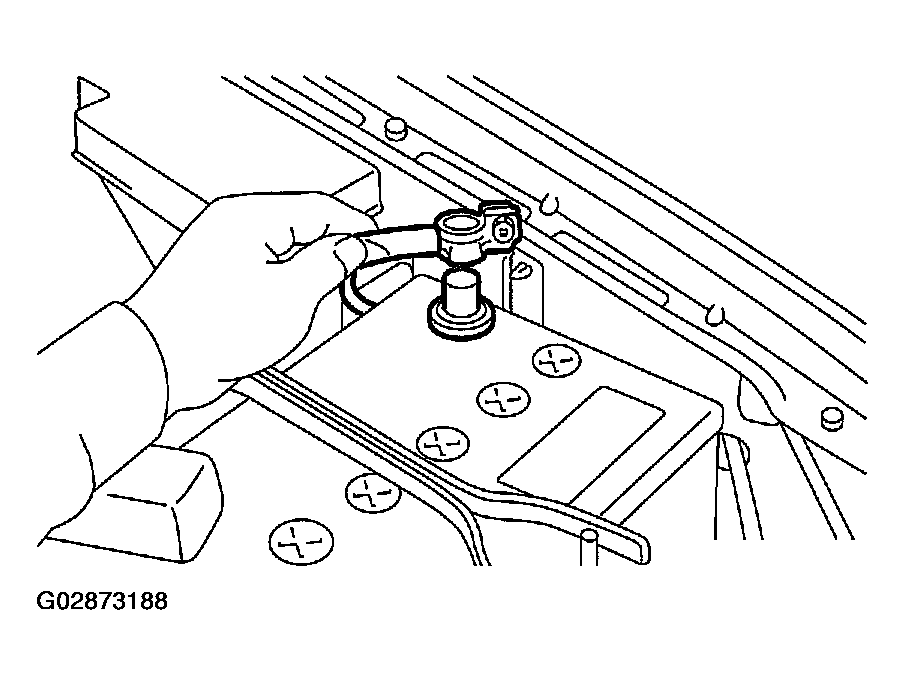

    Fig 1: Disconnecting Battery Ground Cable
    G02873188Courtesy of SUBARU OF AMERICA, INC.
  2. Remove console cover.

    < Ref. to REMOVAL , Console Box.>

  3. Disconnect connector from G sensor.
  4. Remove G sensor from body.
    CAUTION: Do not drop or bump G sensor.
    Fig 2: Removing G Sensor From Body
    G02873189Courtesy of SUBARU OF AMERICA, INC.
