System Components And Functions

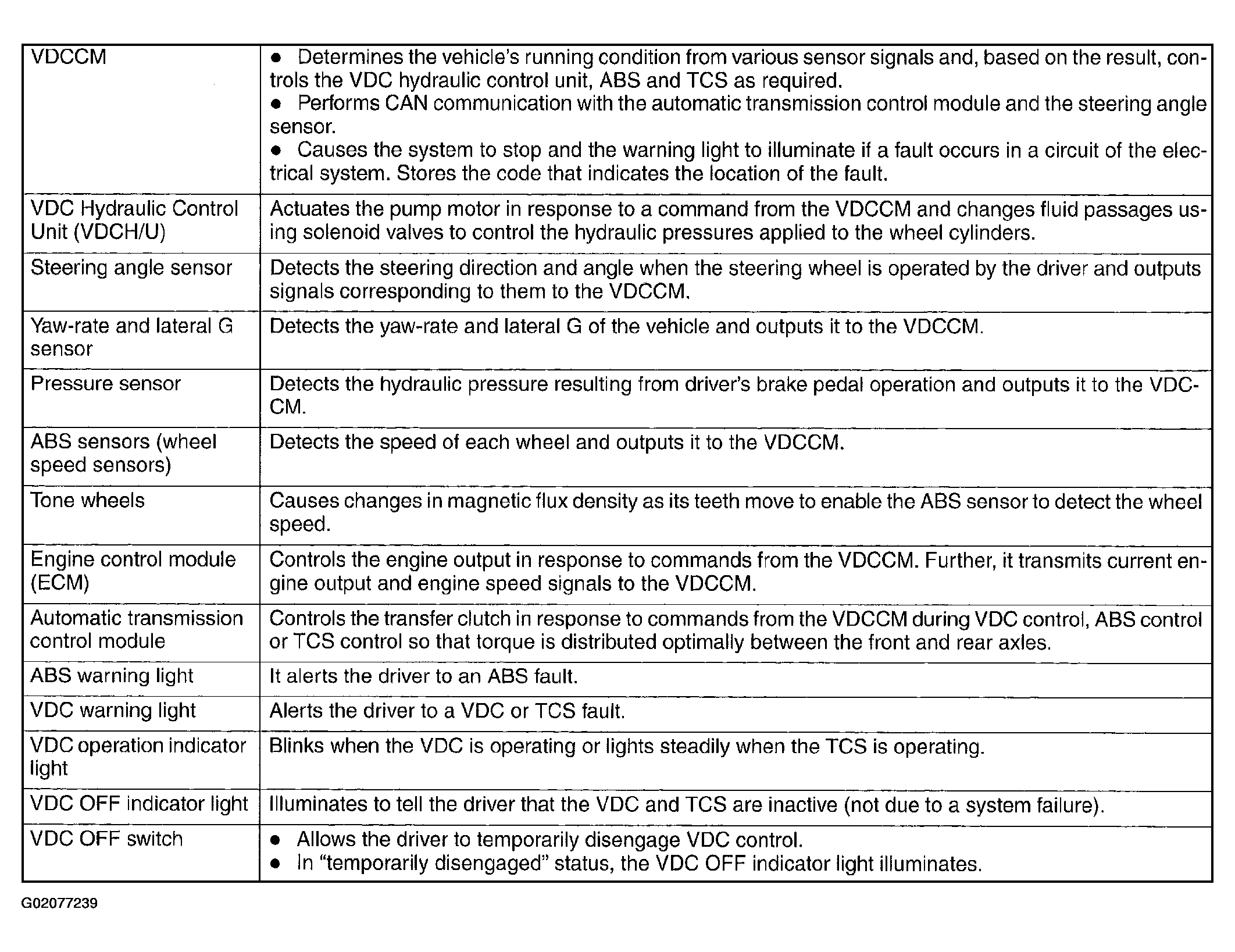

Fig 1: System Components & Functions Chart

Courtesy of SUBARU OF AMERICA, INC.

NOTE: CAN (Controller Area Network) communication refers to bi-directional multiplex high-speed communication.

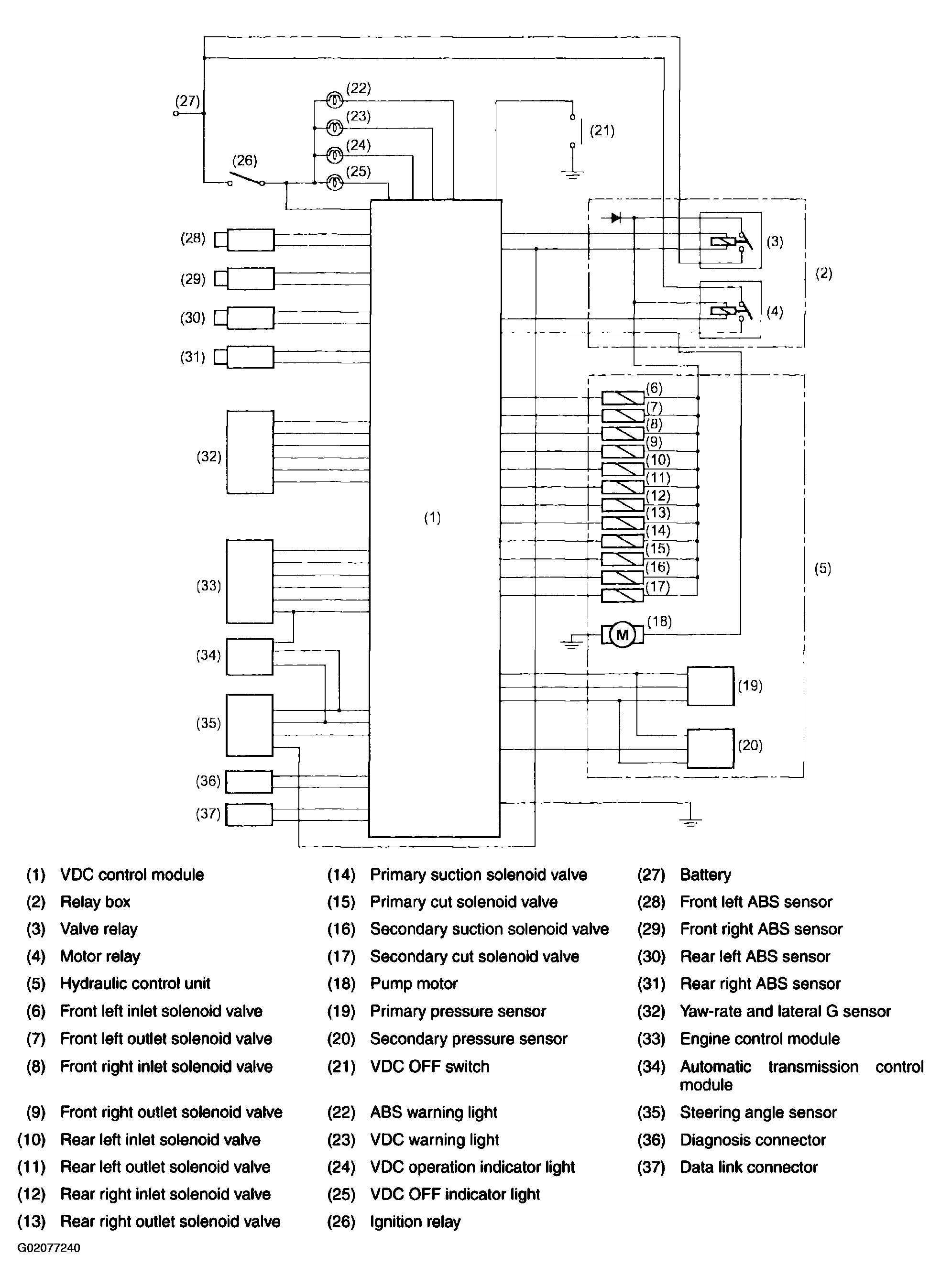

Fig 2: VDC System Circuit Diagram
