Generators & Regulators: Overhaul: Notes

CAUTION: To prevent rotor damage when holding rotor with vise, insert aluminum plates or wood pieces on vise's contact surfaces.

Do not apply a shock or load to IC regulator cooling fins.

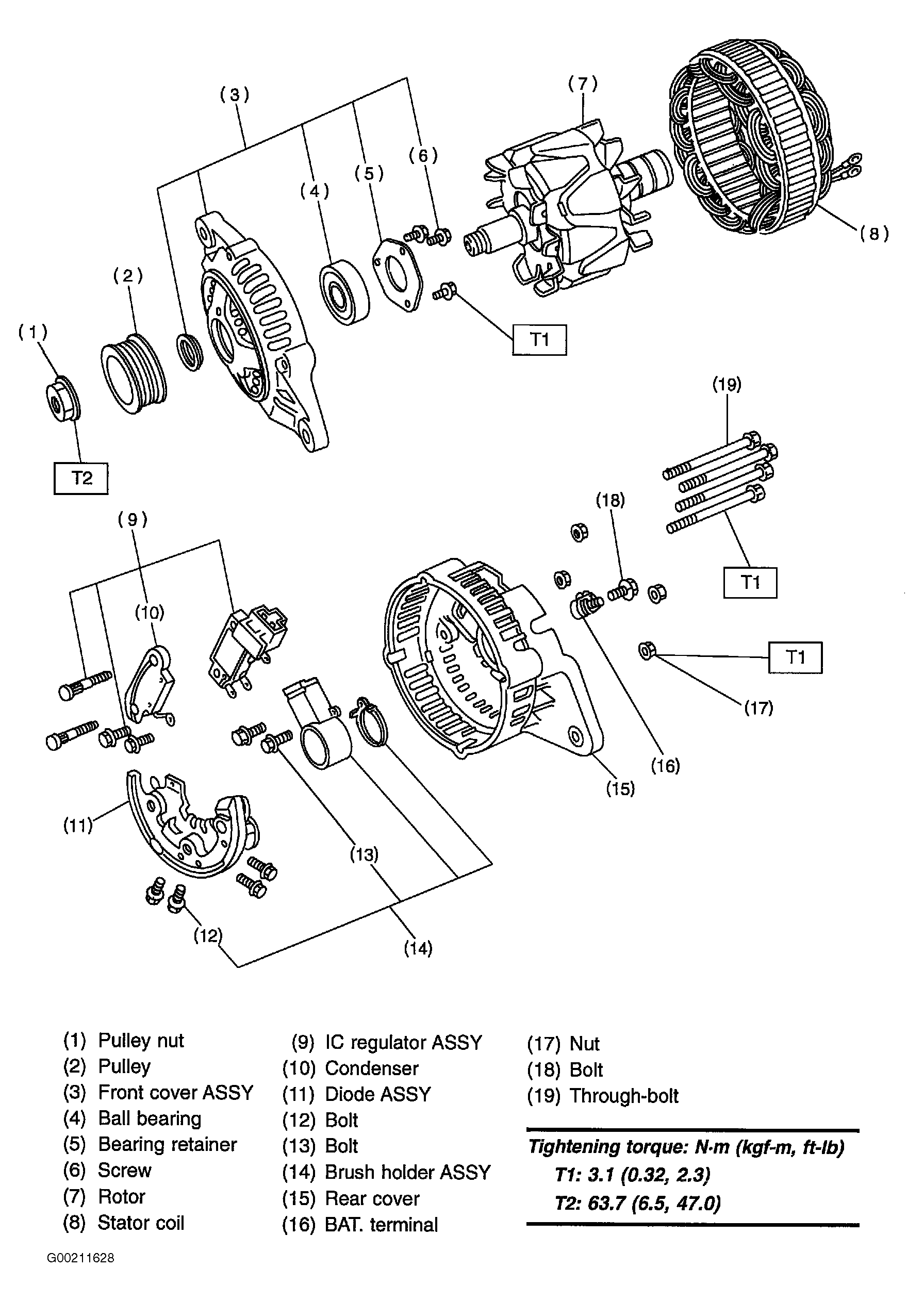

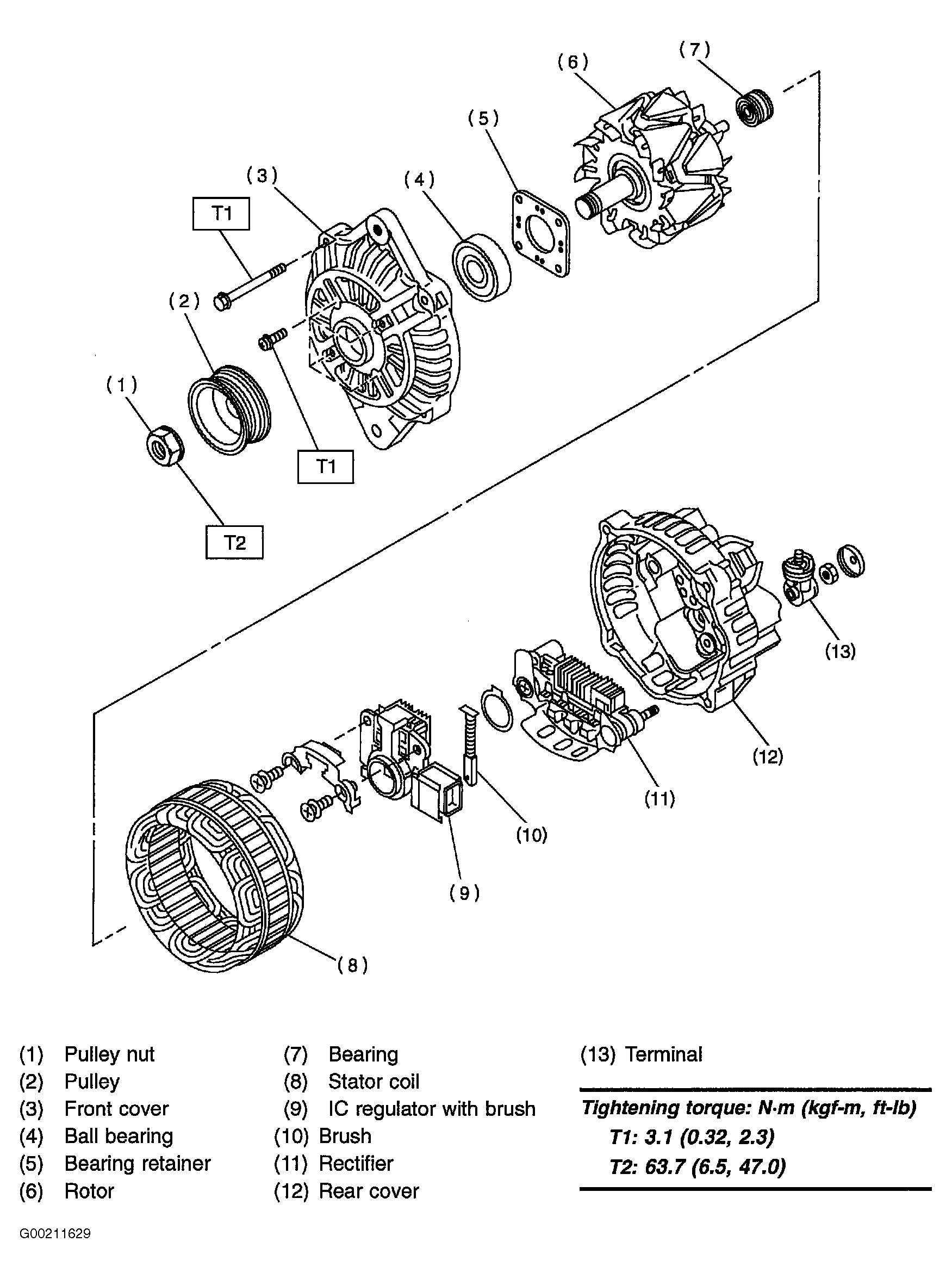

NOTE: See Figure for exploded view of Hitachi generator. See Figure for exploded view of Mitsubishi generator.
