Air Assist Injector Solenoid Valve: Removal

Disconnect battery ground cable.

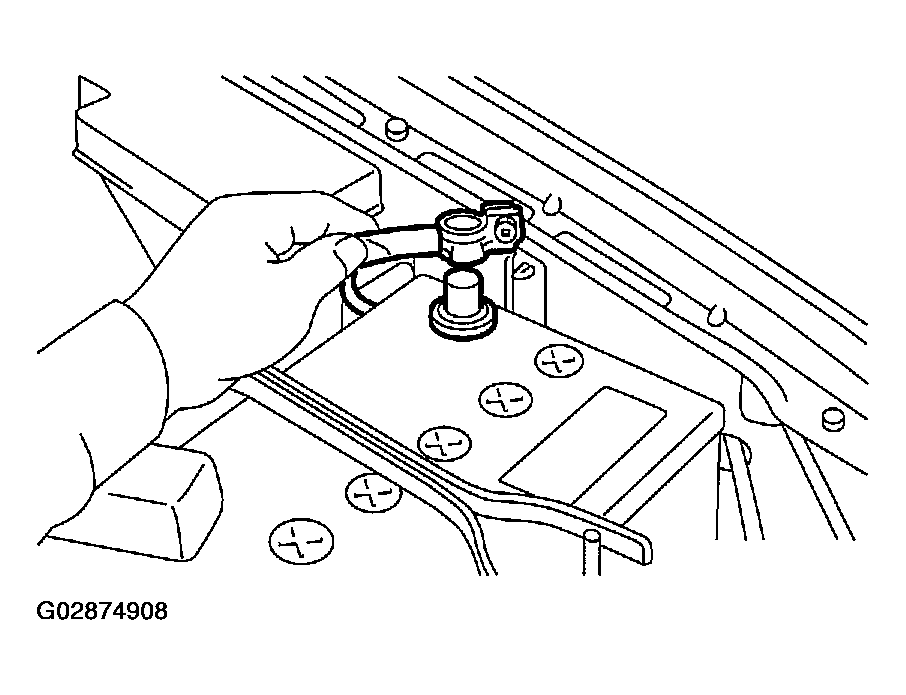

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from air assist injector solenoid valve and disconnect air by-pass hoses.

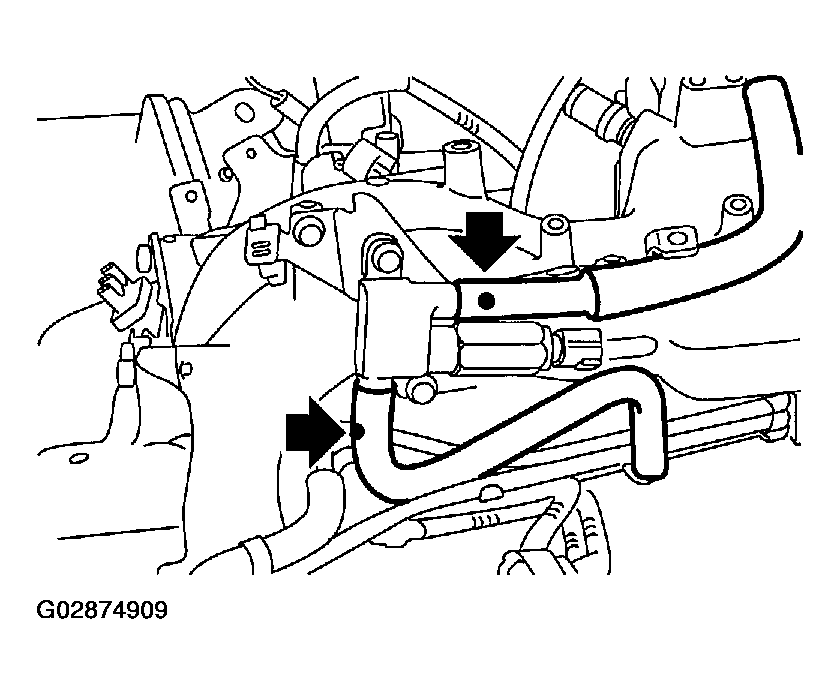

Fig 2: Disconnecting Connector From Air Assist Injector Solenoid Valve
Courtesy of SUBARU OF AMERICA, INC.
Remove air assist injector solenoid valve from intake manifold.

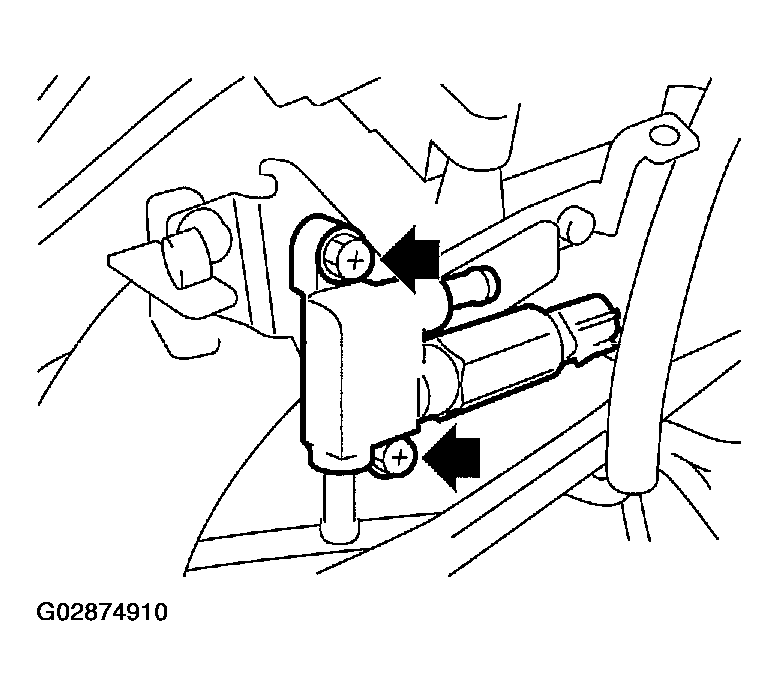

Fig 3: Removing Air Assist Injector Solenoid Valve From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
