Subaru
›
2003
›
Baja Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Fuel Injection (Fuel Systems, H4SO)
›
General Description
›
Component
›
Intake Manifold
Intake Manifold

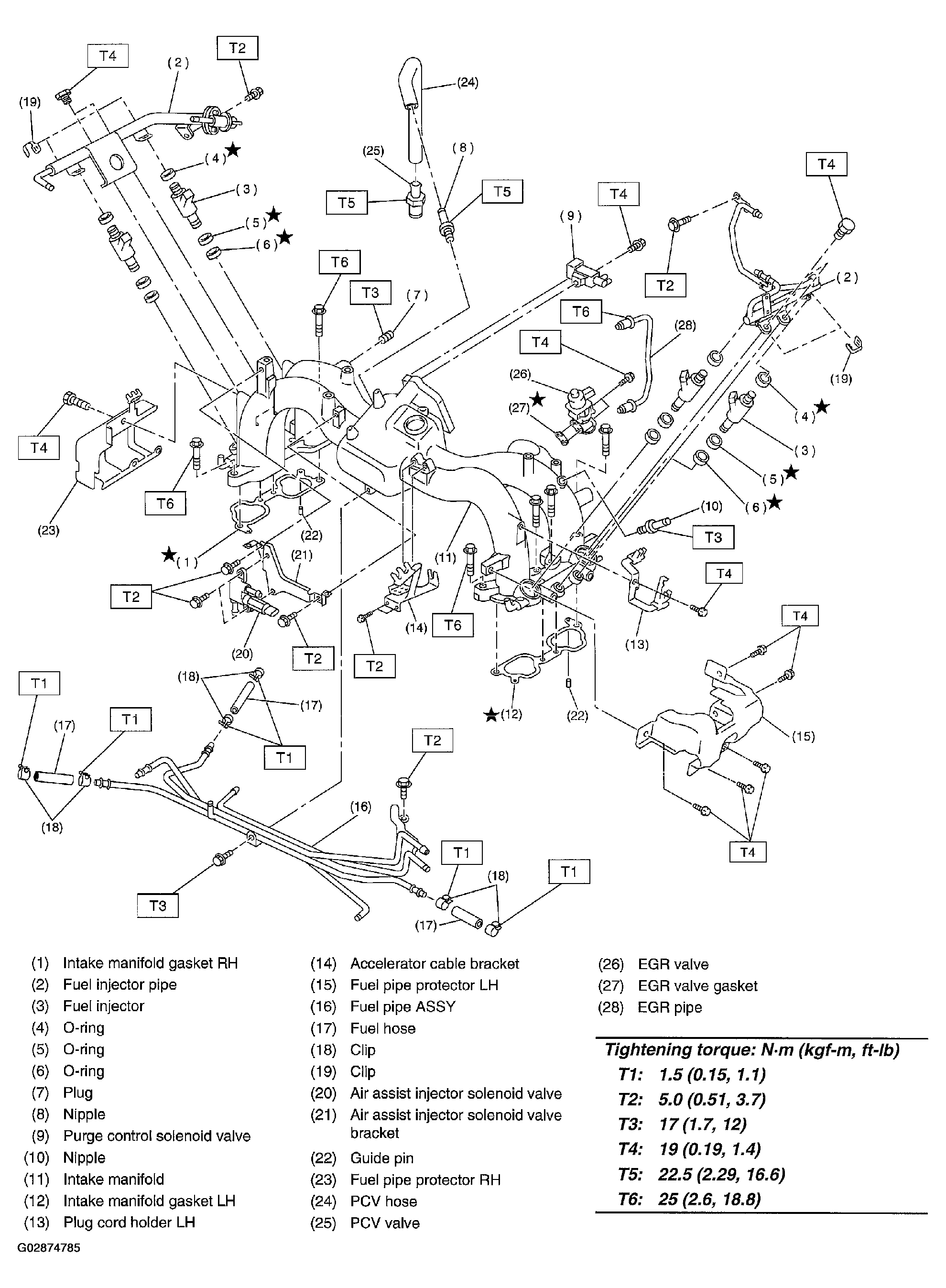

Fig 1: Exploded View Of Intake Manifold Component With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
