Pressure Sensor: Removal

  1. Disconnect battery ground cable.
    Fig 1: Disconnecting Battery Ground Cable
    G02874898Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector from pressure sensor.

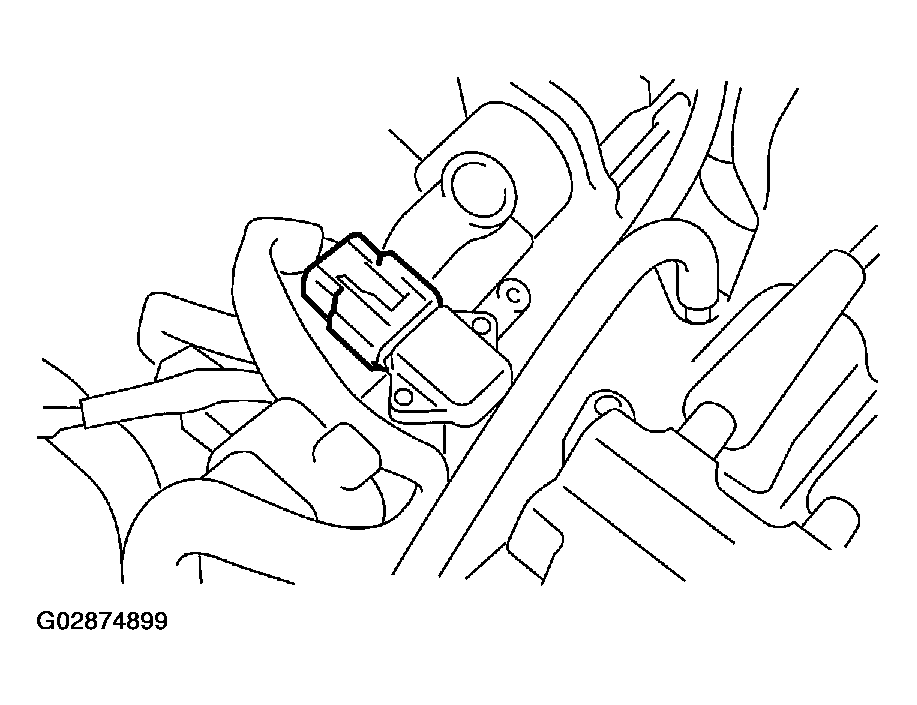

    Fig 2: Disconnecting Connector From Pressure Sensor
    G02874899Courtesy of SUBARU OF AMERICA, INC.
  3. Remove pressure sensor.

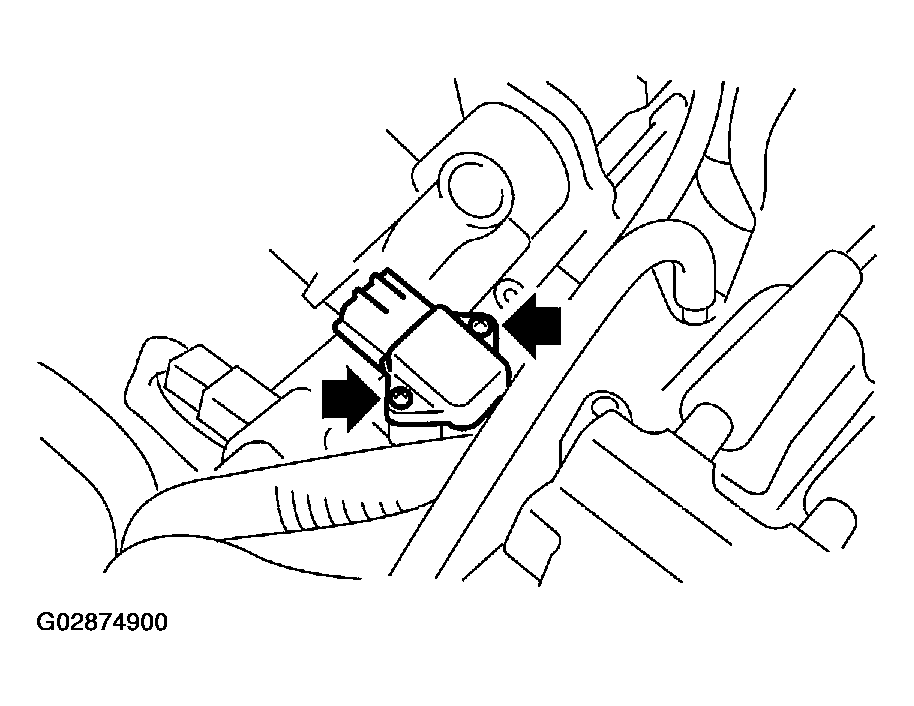

    Fig 3: Removing Pressure Sensor
    G02874900Courtesy of SUBARU OF AMERICA, INC.
