Section 2 (Clutch System): Flywheel: Inspection

WARNING: This page is about a different variant/trim than selected.

CAUTION: Since this bearing is grease sealed and is of a non-lubrication type, do not wash with gasoline or any solvent.

Damage of facing and ring gear If defective, replace the flywheel.

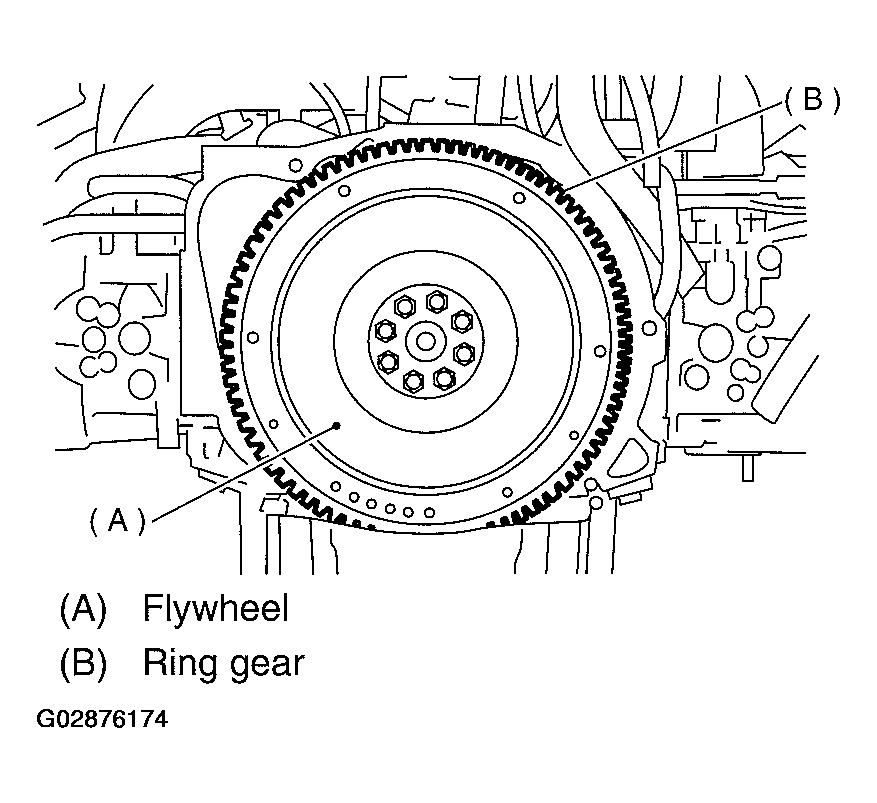

Fig 1: Inspecting Ring Gear & Flywheel
Courtesy of SUBARU OF AMERICA, INC.
Smoothness of rotation
Rotate the ball bearing applying pressure in thrust direction.
If noise or excessive play is noted, replace the flywheel.
