Electrical Components Location
›
Location
›
Control Module
Control Module

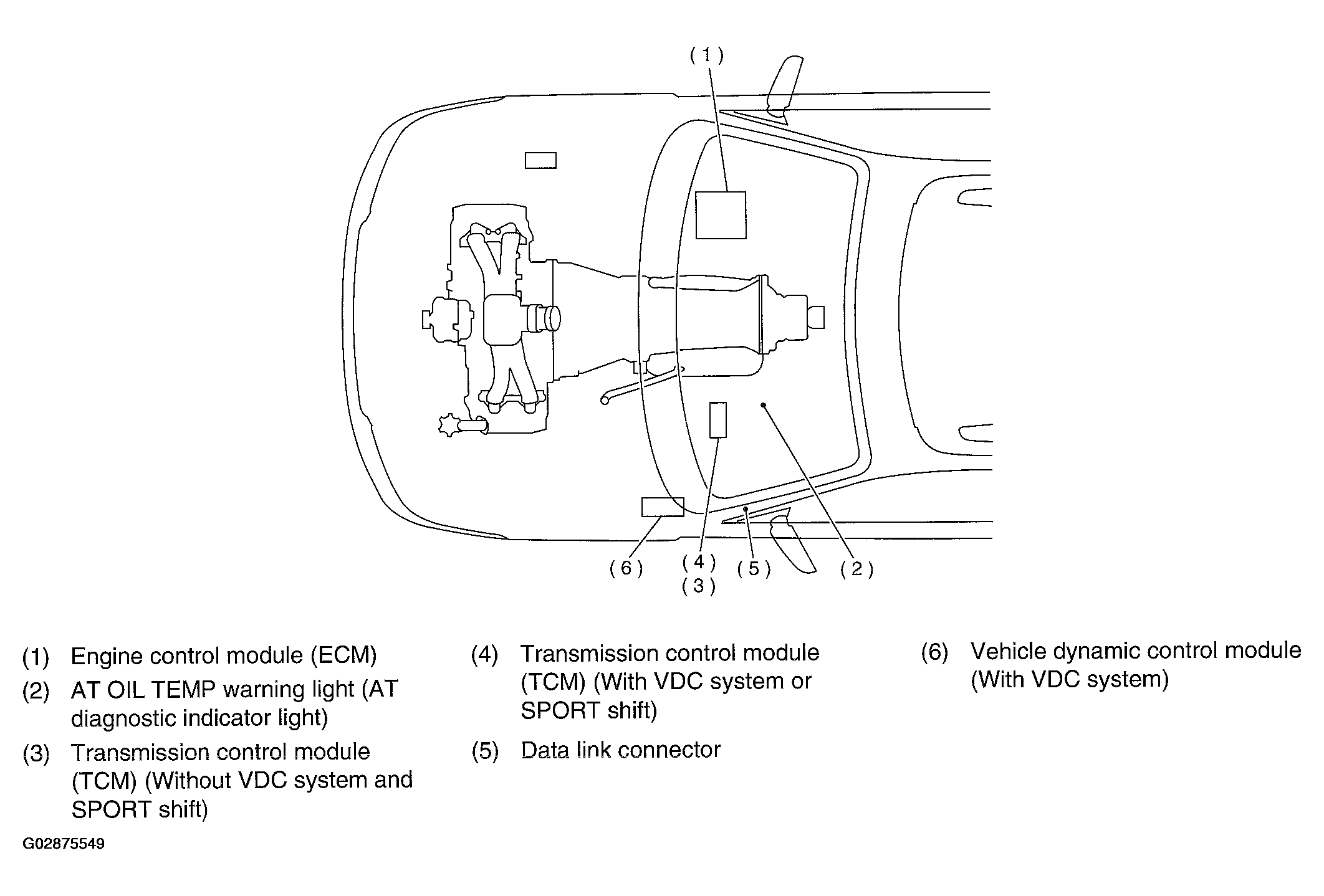

Fig 1: Locating Electrical Components Of Control Module (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

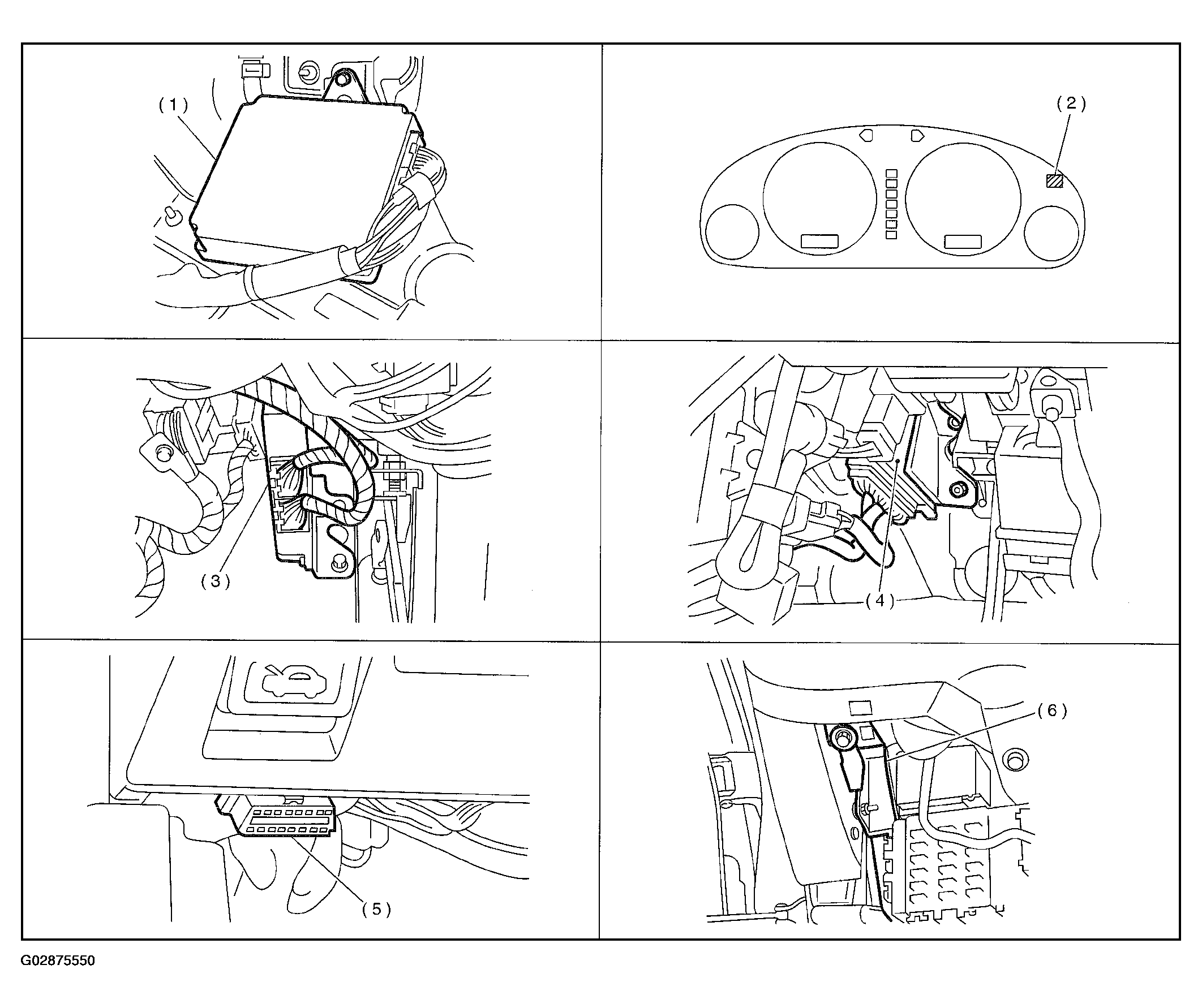

Fig 2: Locating Electrical Components Of Control Module (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
