ELECTROHYDRAULIC Control System
›
Control Items
›
VTD Models
VTD Models

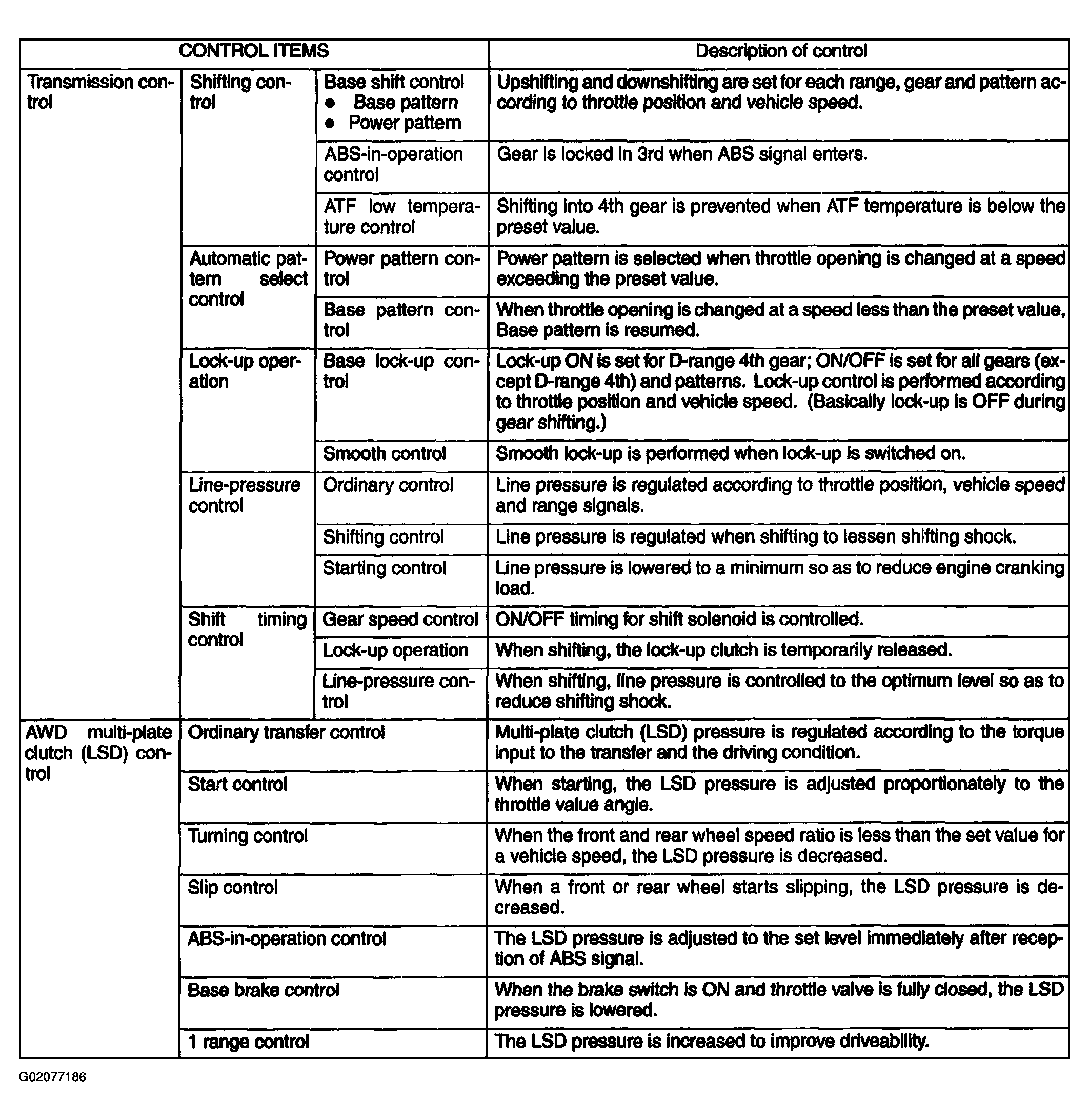

Fig 1: Electrohydraulic Control System Control Item Description Chart (VTD Models)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
