ELECTROHYDRAULIC Control System
›
Input Signals
Input Signals

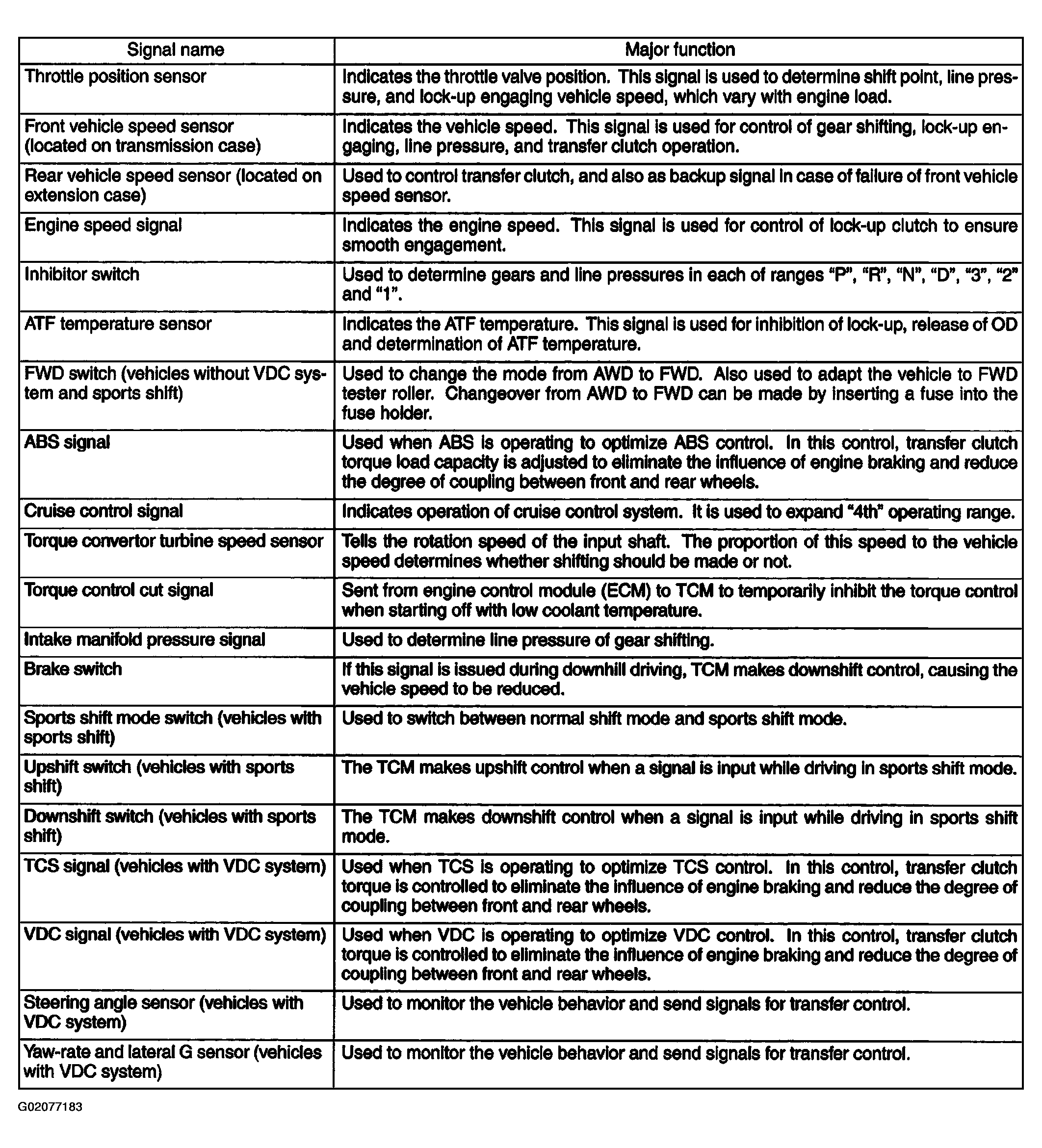

Fig 1: Electrohydraulic Control System - Input Signals Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
