Hydraulic Control Valve
›
Construction
Hydraulic Control Valve: Construction

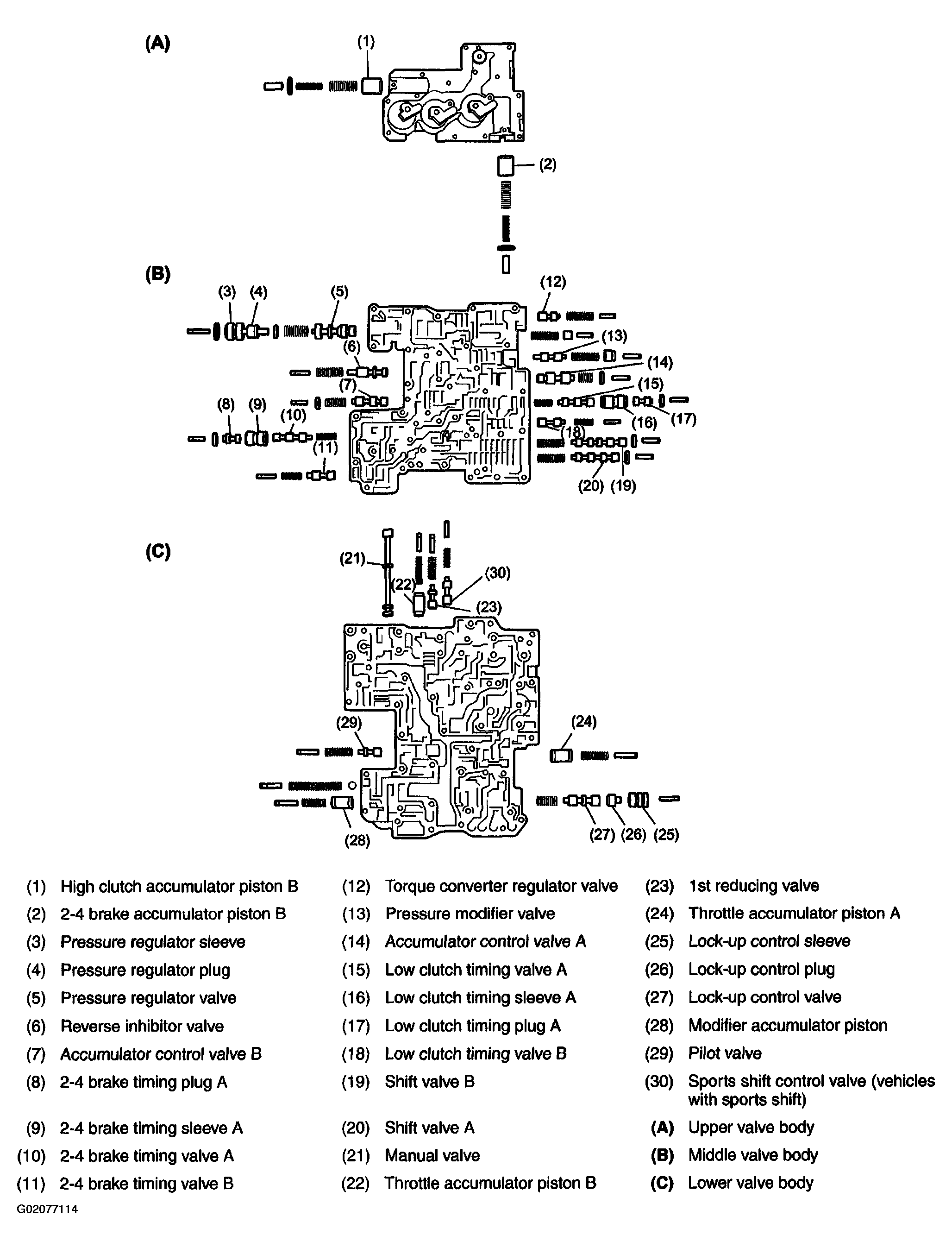

Fig 1: Identifying Hydraulic Control Valve
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
