AT Shift Lock System
›
Electrical Specification
Electrical Specification

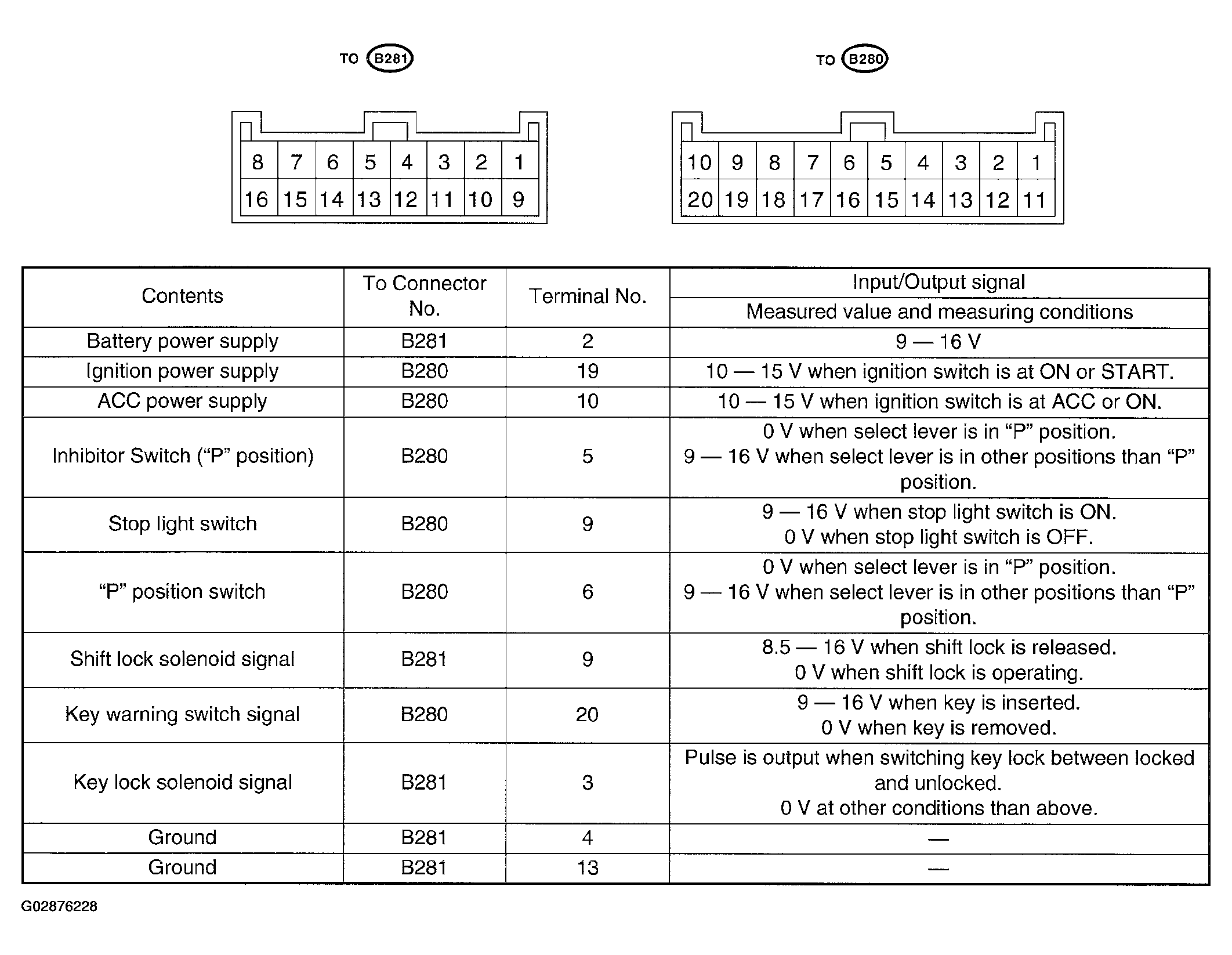

Fig 1: AT Shift Lock System Electrical Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
