AT Shift Lock System: Schematic

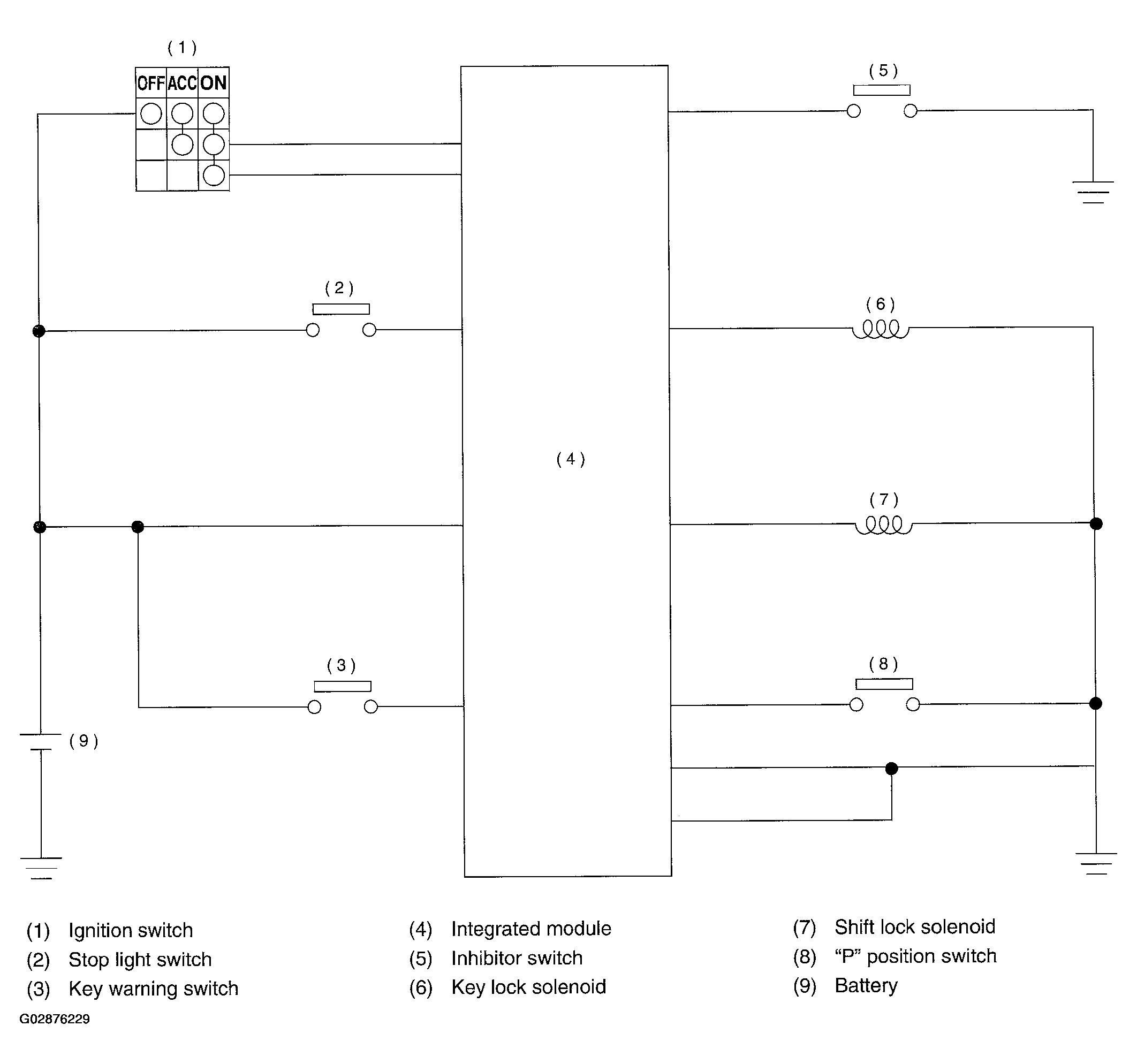

Fig 1: AT Shift Lock System Schematic
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
