Electrical Component: Location

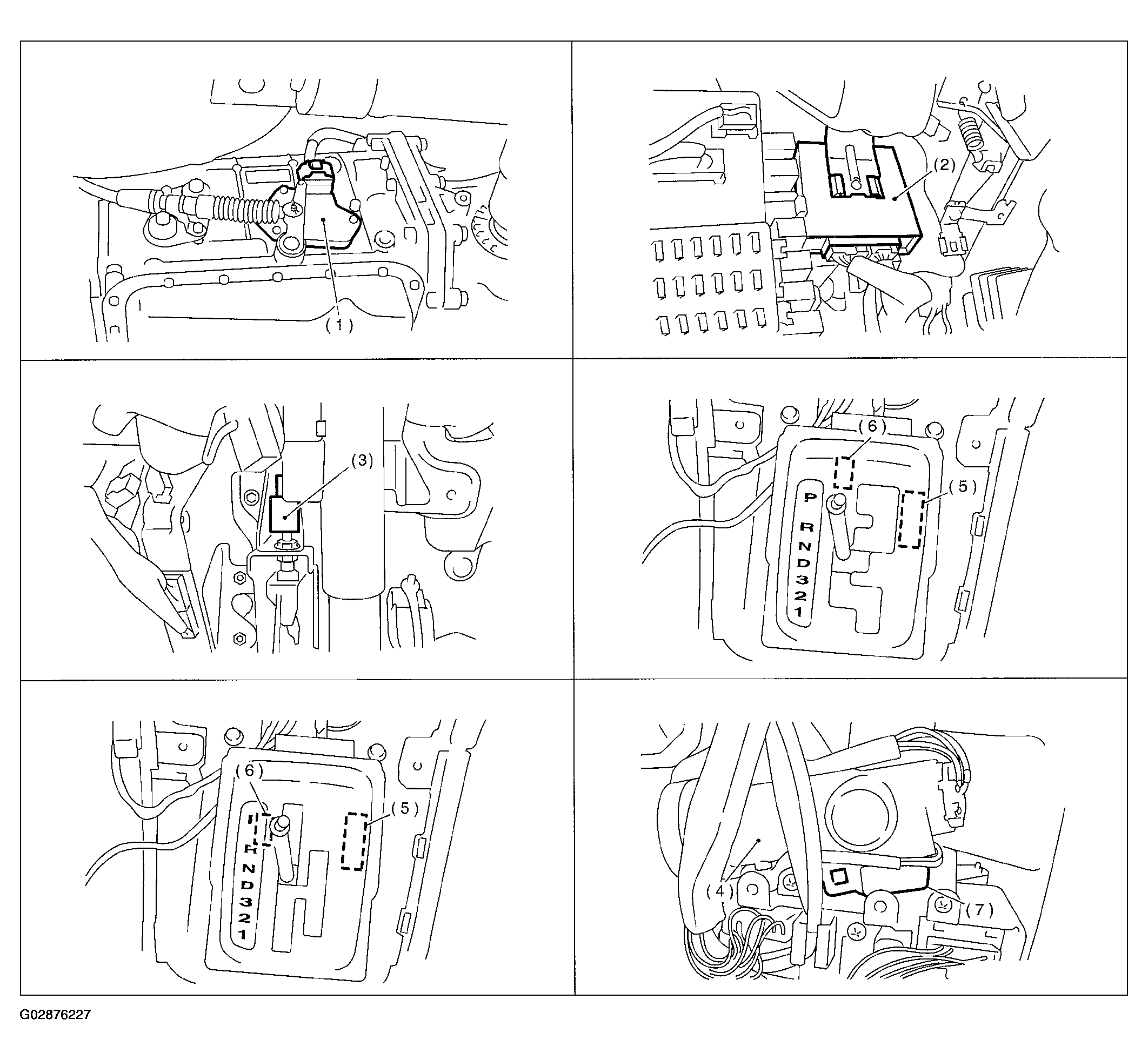

Fig 1: Identifying Location Of Electrical Component (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying Location Of Electrical Component (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
