Dropping Resistor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery.

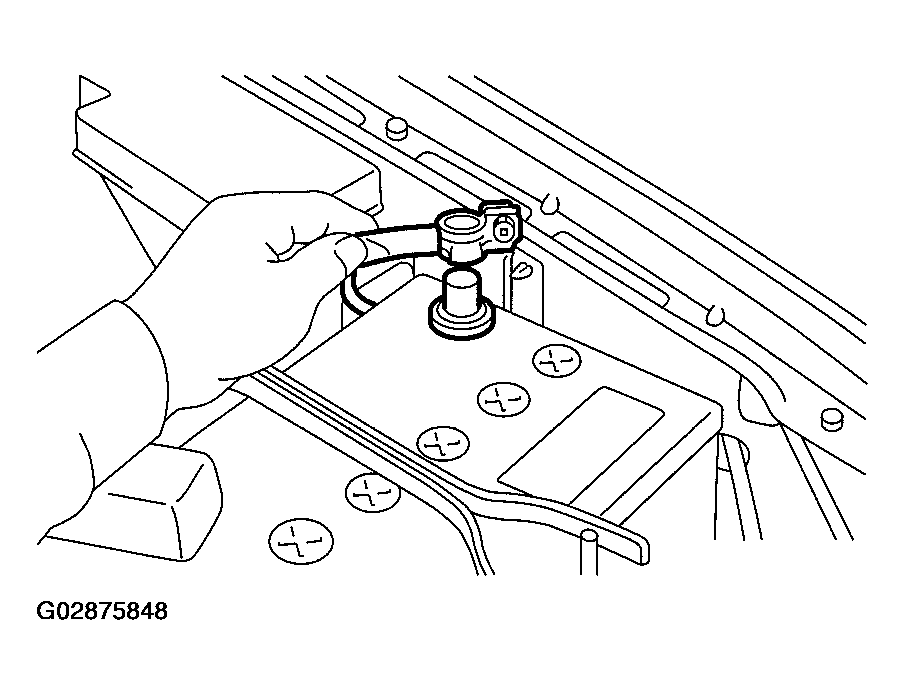

    Fig 1: Disconnecting Ground Terminal From Battery
    G02875848Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from dropping resistor.
  3. Remove the dropping resistor.
    Fig 2: Removing Dropping Resistor
    G02875849Courtesy of SUBARU OF AMERICA, INC.
