Extension Case: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the transmission assembly. < Ref. to REMOVAL , Automatic Transmission Assembly.>
Remove rear vehicle speed sensor.

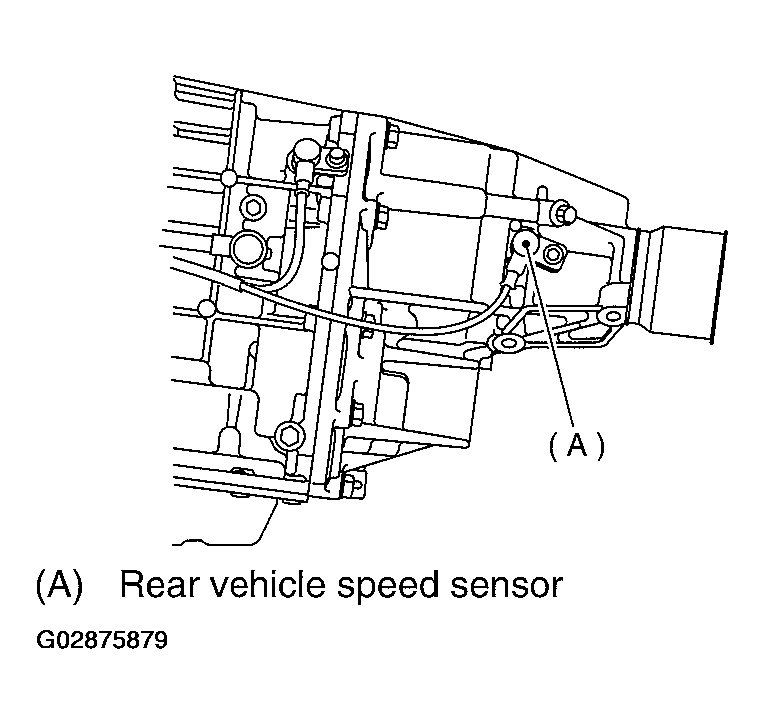

Fig 1: Removing Rear Vehicle Speed Sensor (MPT Model)
Courtesy of SUBARU OF AMERICA, INC.

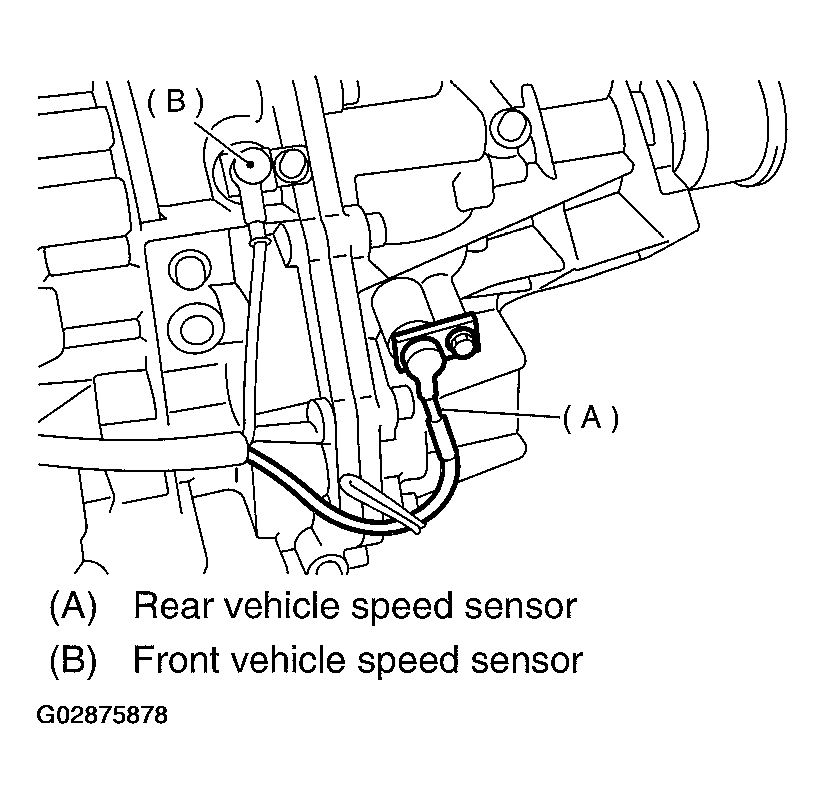

Fig 2: Removing Rear Vehicle Speed Sensor (VTD Model)
Courtesy of SUBARU OF AMERICA, INC.
Separate transmission case and extension case sections.

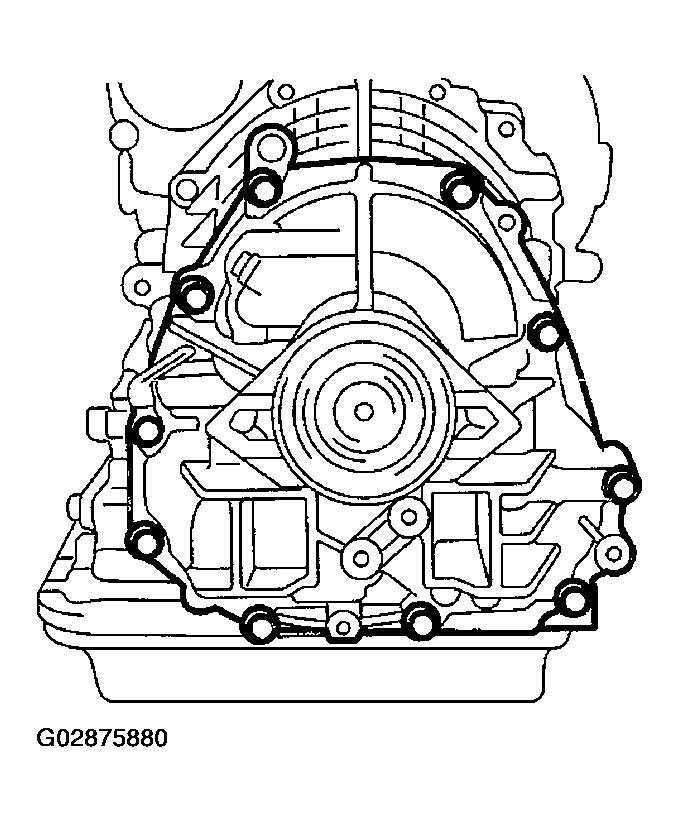

Fig 3: Separating Transmission Case & Extension Case Sections

Courtesy of SUBARU OF AMERICA, INC.
