Control Valve And Harness Routing

WARNING: This page is about a different variant/trim than selected.

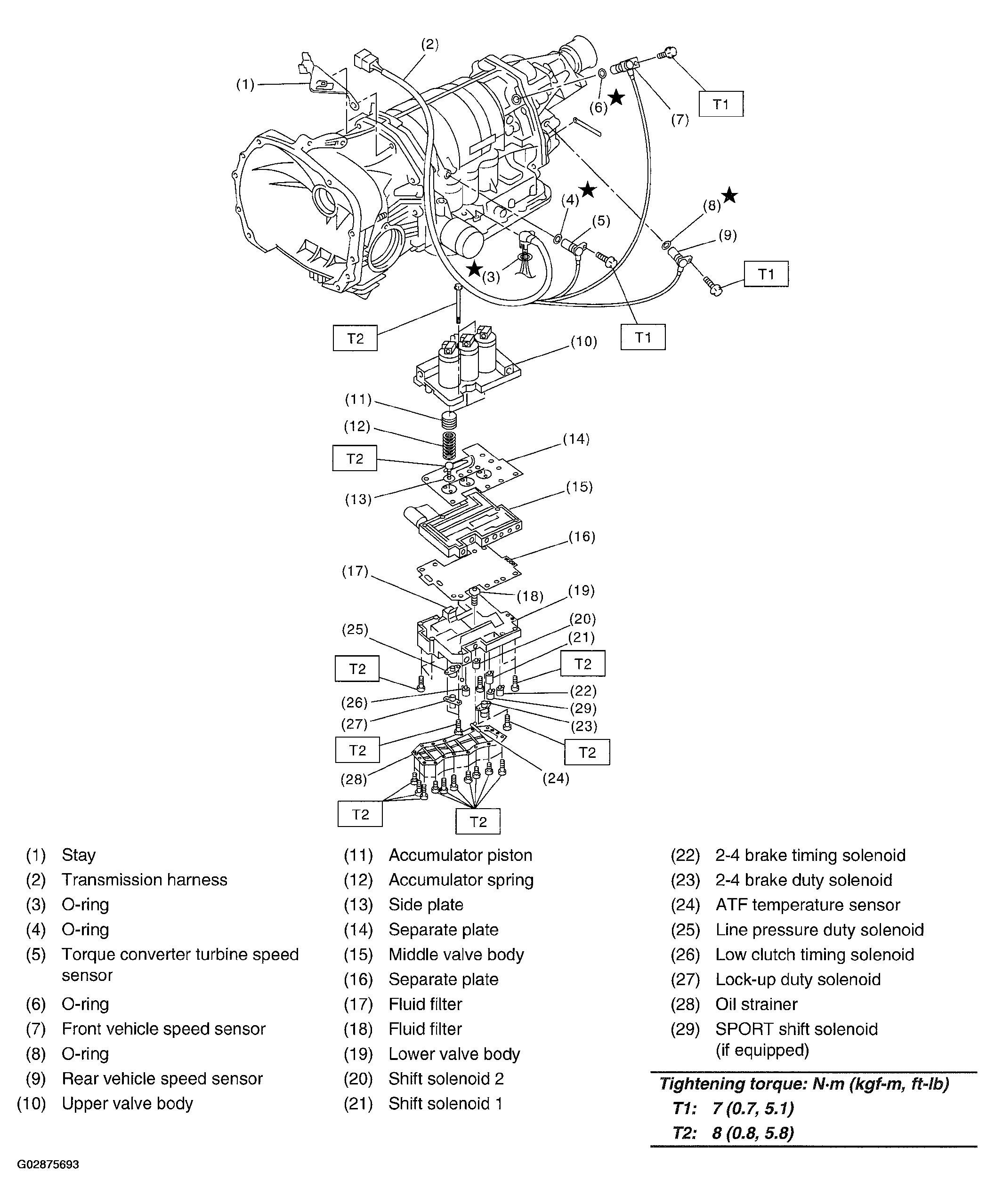

Fig 1: Exploded View Of Control Valve & Harness Routing With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.
