Center Differential: Assembly

Install ball bearing to center differential assembly.

NOTE: Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton).

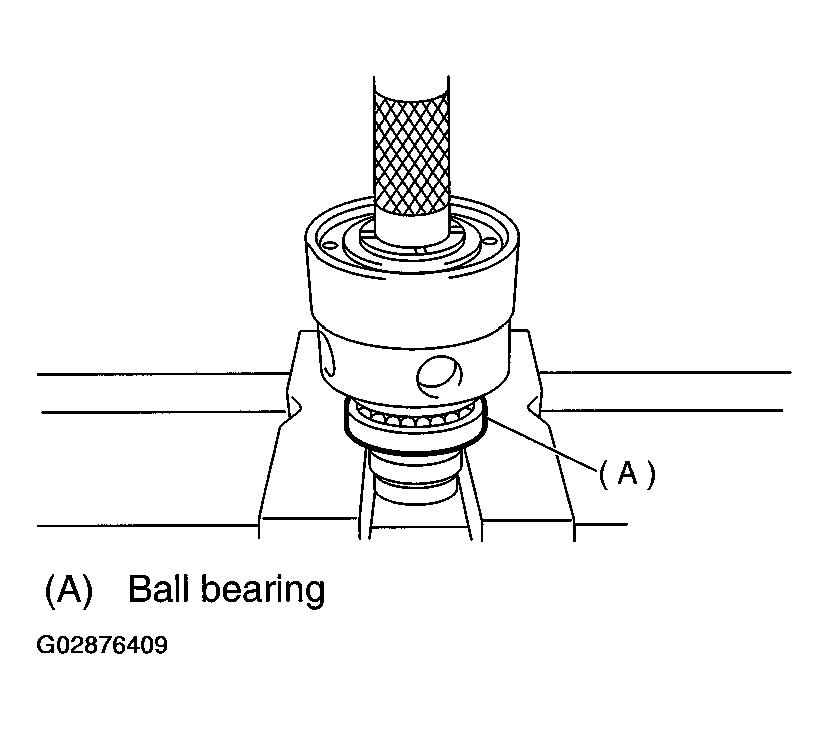

Fig 1: Installing Ball Bearing To Center Differential Assembly

Courtesy of SUBARU OF AMERICA, INC.
