Center Differential: Disassembly

NOTE:

• Do not disassemble center differential because it is a non-disassemble part.
• Remove ball bearing using ST.
• Do not reuse ball bearing.

1. ST 498077300 CENTER DIFFERENTIAL BEARING REMOVER

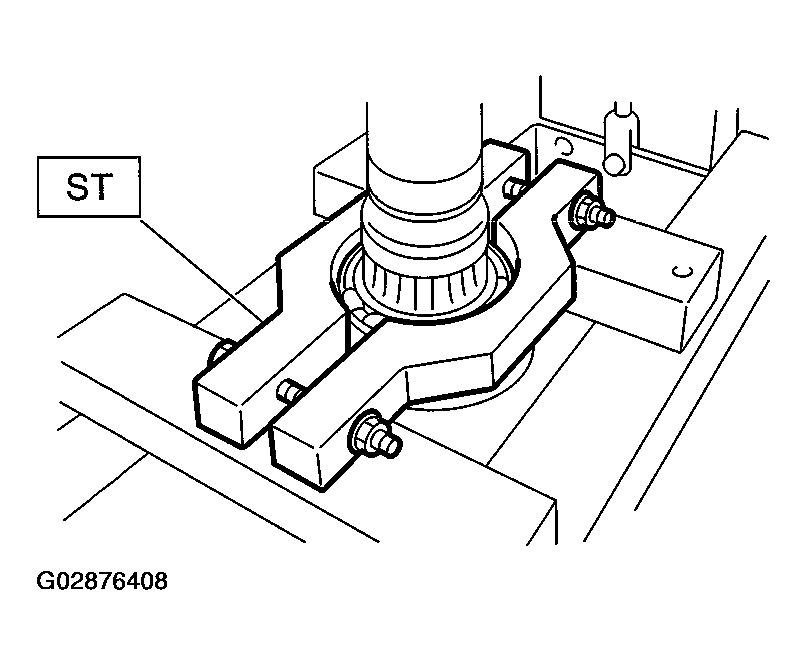

Fig 1: Removing Ball Bearing Using ST

Courtesy of SUBARU OF AMERICA, INC.
