Differential Case Assembly

Remove right and left snap rings from differential, and then remove two axle drive shafts.
NOTE: During reassembly, reinstall each axle drive shaft in the same place from which it was removed.
Loosen twelve bolts and remove hypoid driven gear.

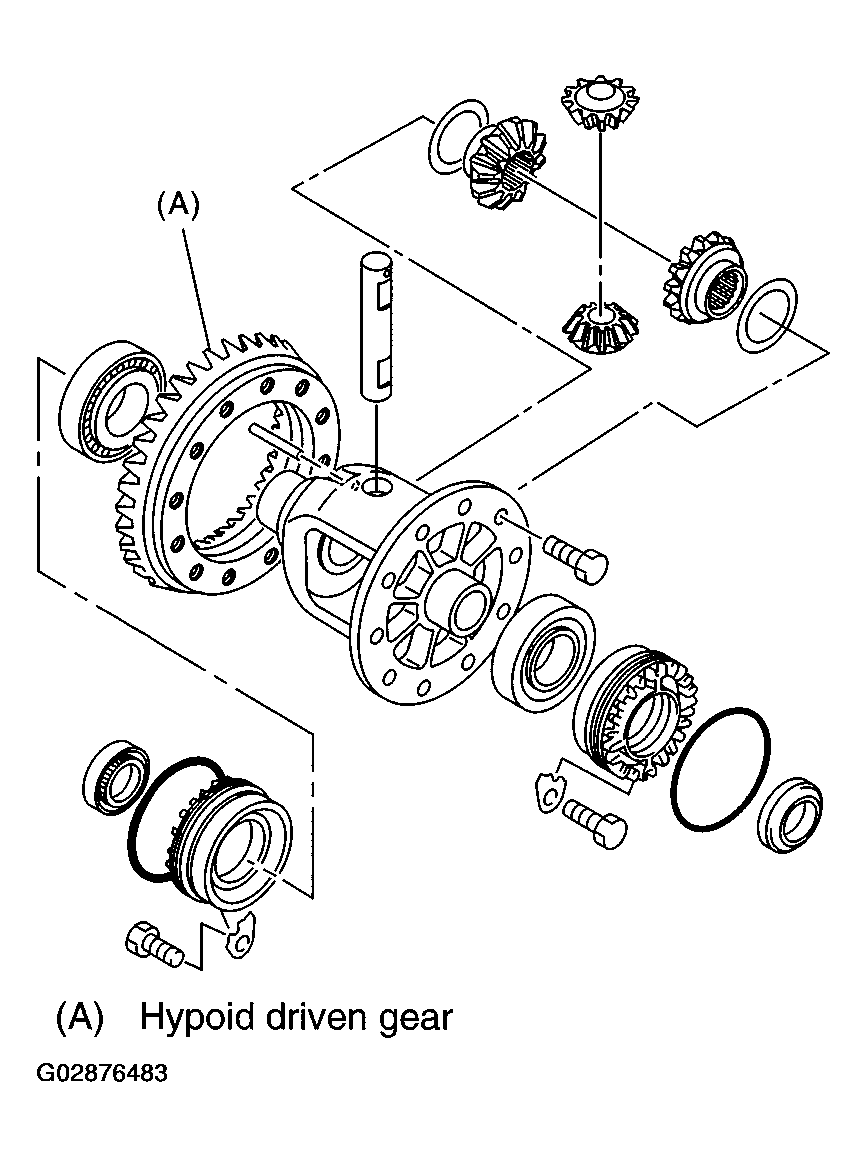

Fig 1: Removing Hypoid Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
Drive out straight pin from differential assembly toward hypoid driven gear.
1. ST 899904100 REMOVER
Fig 2: Driving Straight Pin From Differential Assembly
Courtesy of SUBARU OF AMERICA, INC.
Pull out pinion shaft, and remove differential bevel pinion, gear and washer.

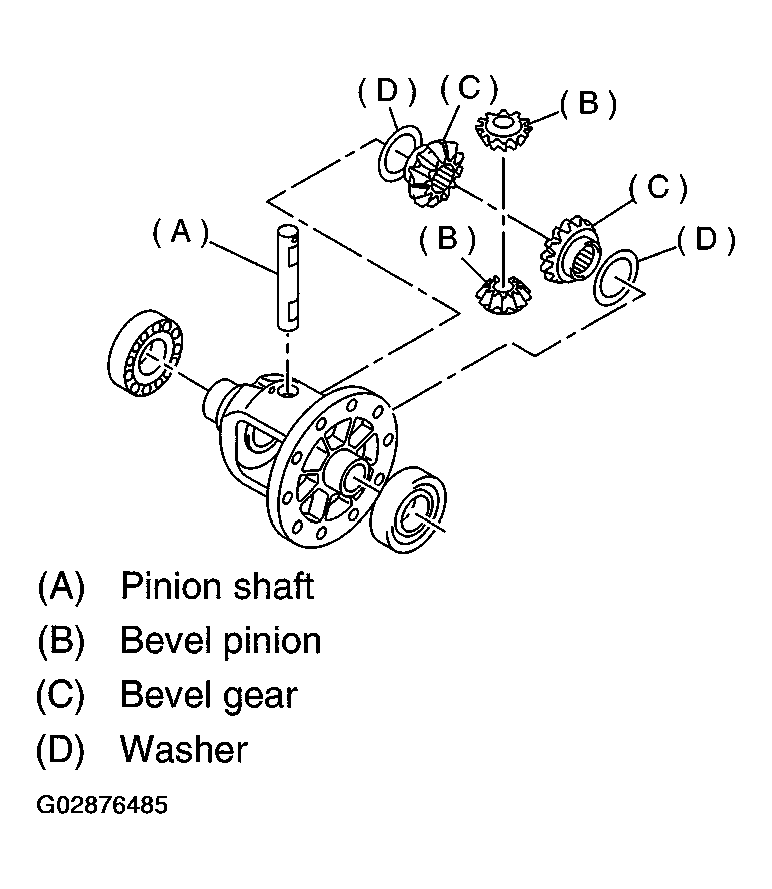

Fig 3: Removing Differential Bevel Pinion, Gear & Washer
Courtesy of SUBARU OF AMERICA, INC.
Remove roller bearing using ST.
1. ST 899524100 PULLER SET
Fig 4: Removing Roller Bearing
Courtesy of SUBARU OF AMERICA, INC.
