Speedometer Gear: Installation
- Install washer and speedometer shaft, and press fit new oil seal with ST.
- ST 899824100 or 499827000 PRESS
- Install vehicle speed sensor. < Ref. to
INSTALLATION , Vehicle Speed Sensor.>

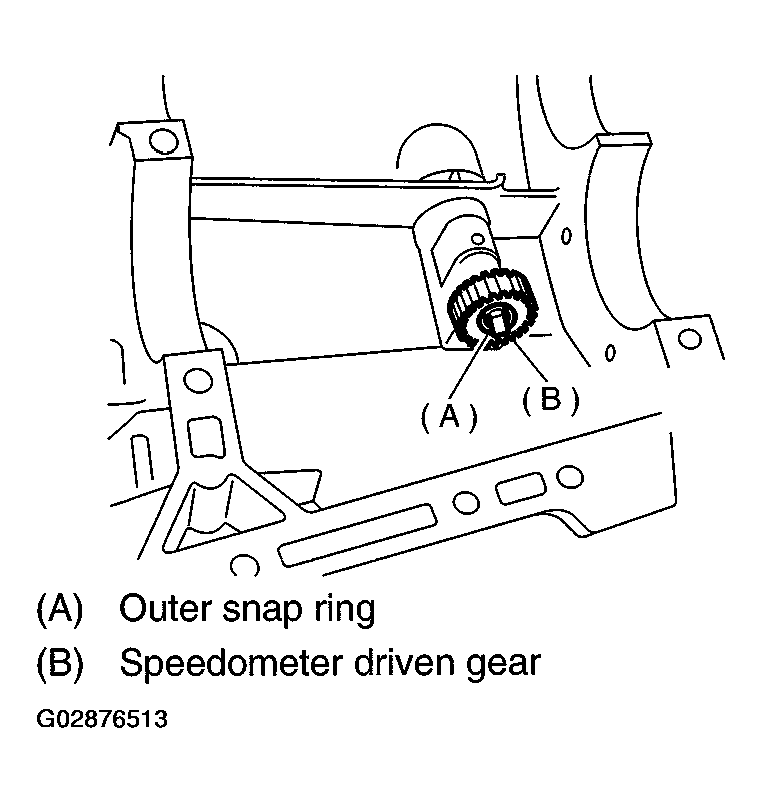

- Install speedometer driven gear and new snap ring.
Courtesy of SUBARU OF AMERICA, INC.
- Install transmission case. < Ref. to
INSTALLATION , Transmission Case.>
- Install transfer case with extension case assembly. < Ref. to
INSTALLATION , Transfer Case and Extension Case Assembly.>
- Install back-up light switch and neutral position switch. < Ref. to
INSTALLATION , Switches and Harness.>
- Install the manual transmission assembly to vehicle. < Ref. to
INSTALLATION , Manual Transmission Assembly.>
