Electrical Specification

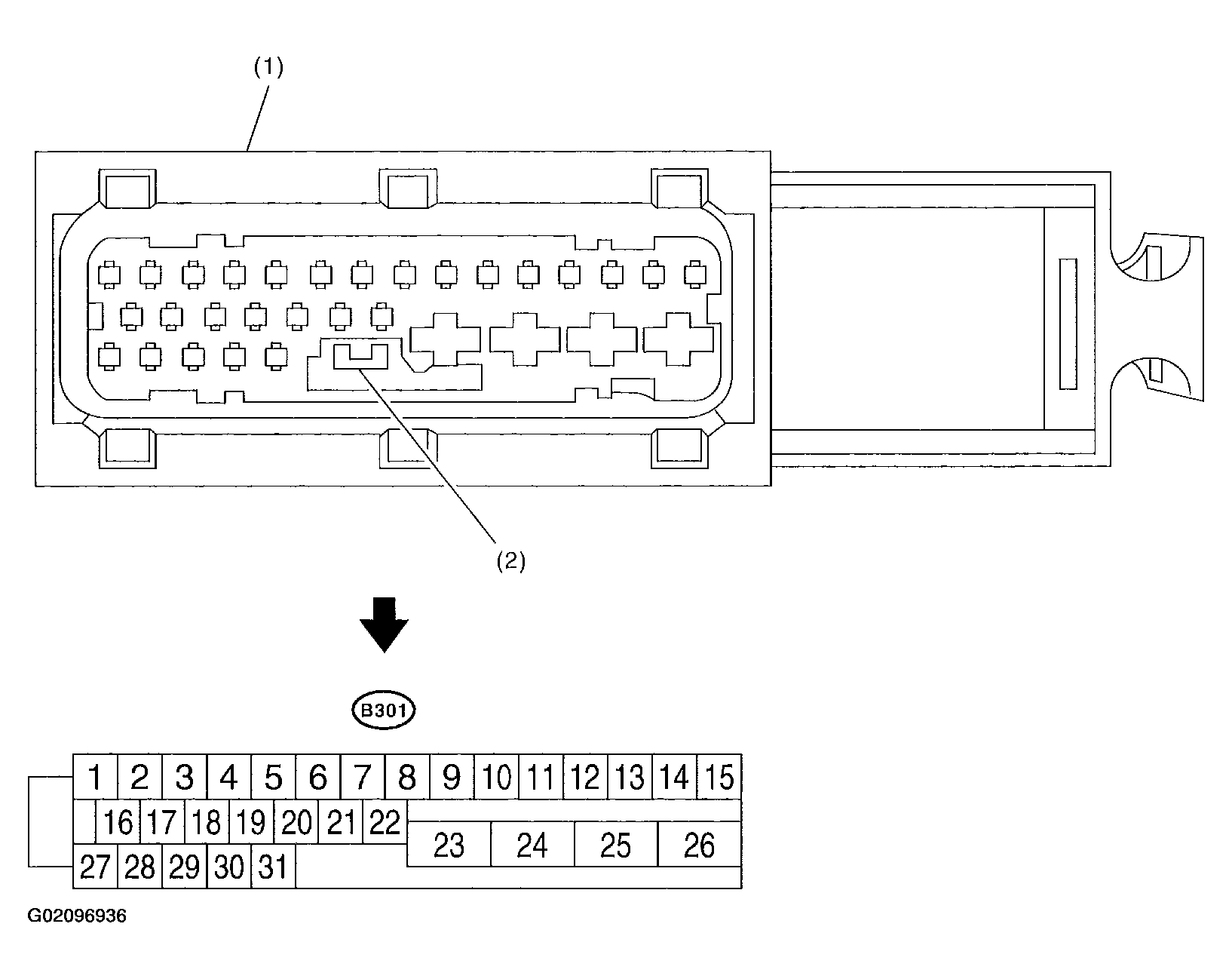

Fig 1: Identifying Control Module I/O Signal
G02096936Courtesy of SUBARU OF AMERICA, INC.
  1. ABS control module and hydraulic control unit connector
  2. Connector switch
NOTE:
  • The terminal numbers in ABS control module and hydraulic control unit connector are as shown in the figure.
  • When the connector is removed from ABSCM&H/U, the connector switch closes the circuit between terminal No. 22 and No. 23. The ABS warning light illuminates.

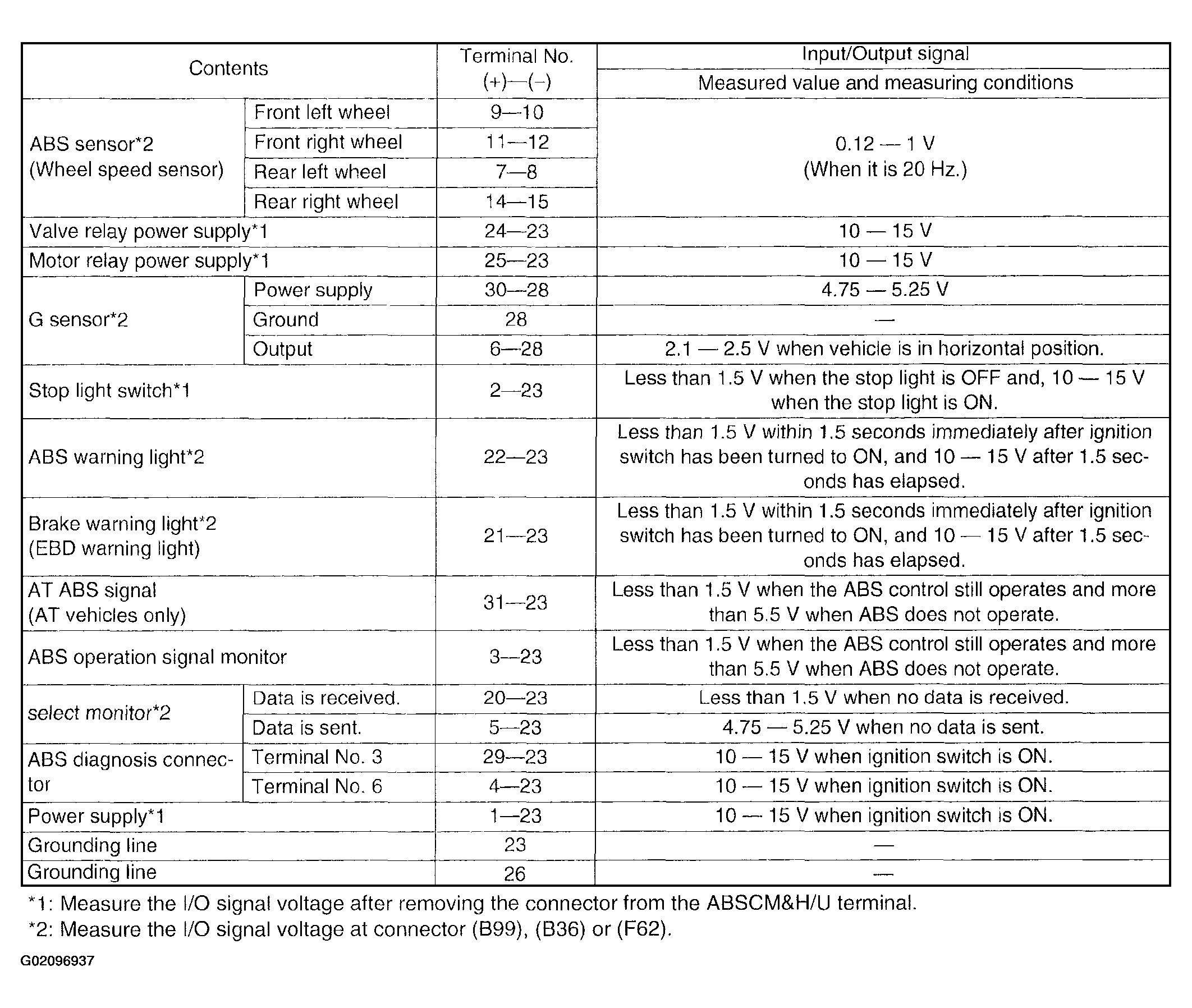

Fig 2: Control Module I/O Signal Specifications Chart
G02096937Courtesy of SUBARU OF AMERICA, INC.
