Differentials & Drive Axles: Differentials: General Description: Specifications: Notes

When replacing a rear differential assembly, select the correct one according to the following table.

NOTE: Using the different rear differential assembly causes the drive line and tires to "drag" or emit abnormal noise.

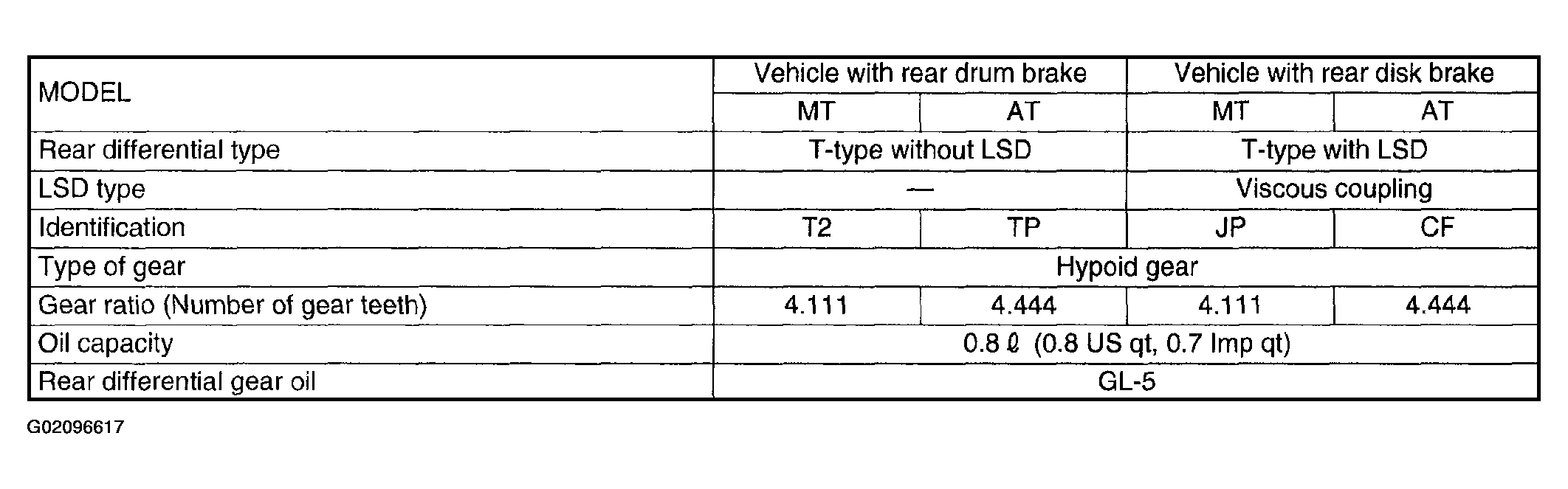

Fig 1: Rear Differential Assembly Specifications

Courtesy of SUBARU OF AMERICA, INC.

Identification

Fig 2: Identifying Rear Differential Assembly Identification
Courtesy of SUBARU OF AMERICA, INC.
Rear differential gear oil

Recommended oil

CAUTION: Each oil manufacturer has its base oil and additives. Thus, do not mix two or more brands.

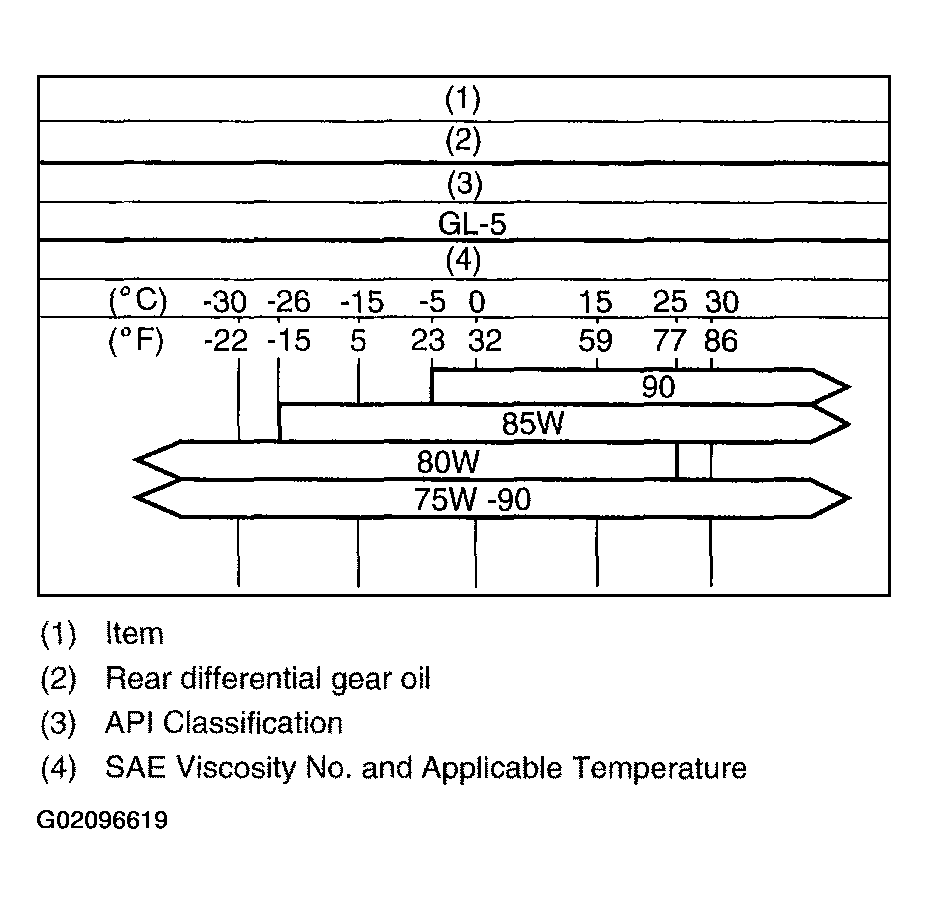

Fig 3: Rear Differential Gear Recommended Oil Chart

Courtesy of SUBARU OF AMERICA, INC.
