Combination Meter Assembly: Removal

  1. Disconnect the ground cable from battery.
  2. Set the tilt steering at lowest position.
  3. Remove the screws and detach meter visor.
    Fig 1: Removing Screws & Detaching Meter Visor
    G02089576Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the screws of combination meter and pull out the meter toward you.

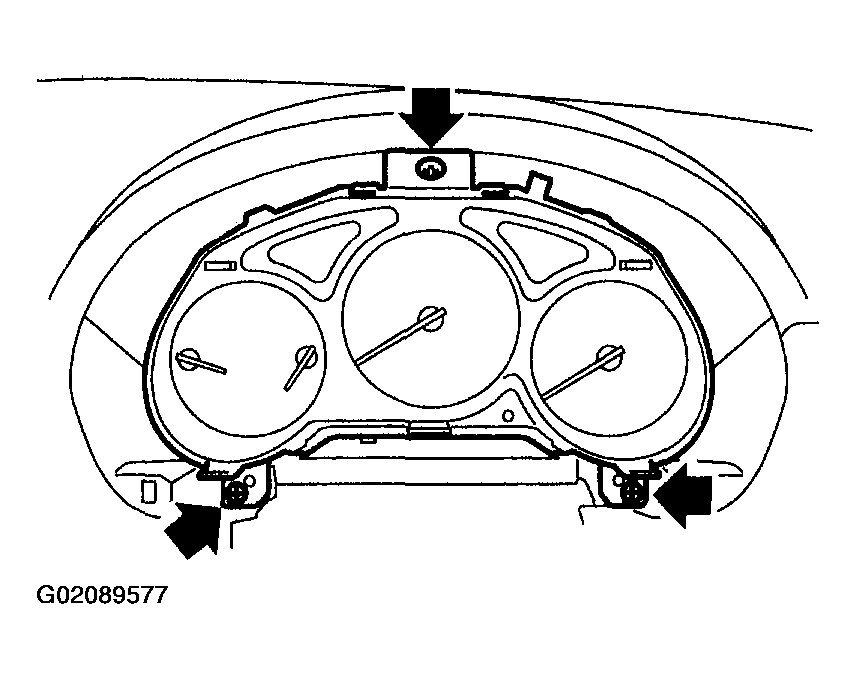

    Fig 2: Removing Screws Of Combination Meter Assembly
    G02089577Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the connector in the upper area of combination meter to remove meter.
CAUTION:
  • Be careful not to damage the meter or instrument panel.
  • Pay particular attention to avoid damaging the meter glass.
