Radiator Fan System: Inspection

DETECTING CONDITION:

TROUBLE SYMPTOM:

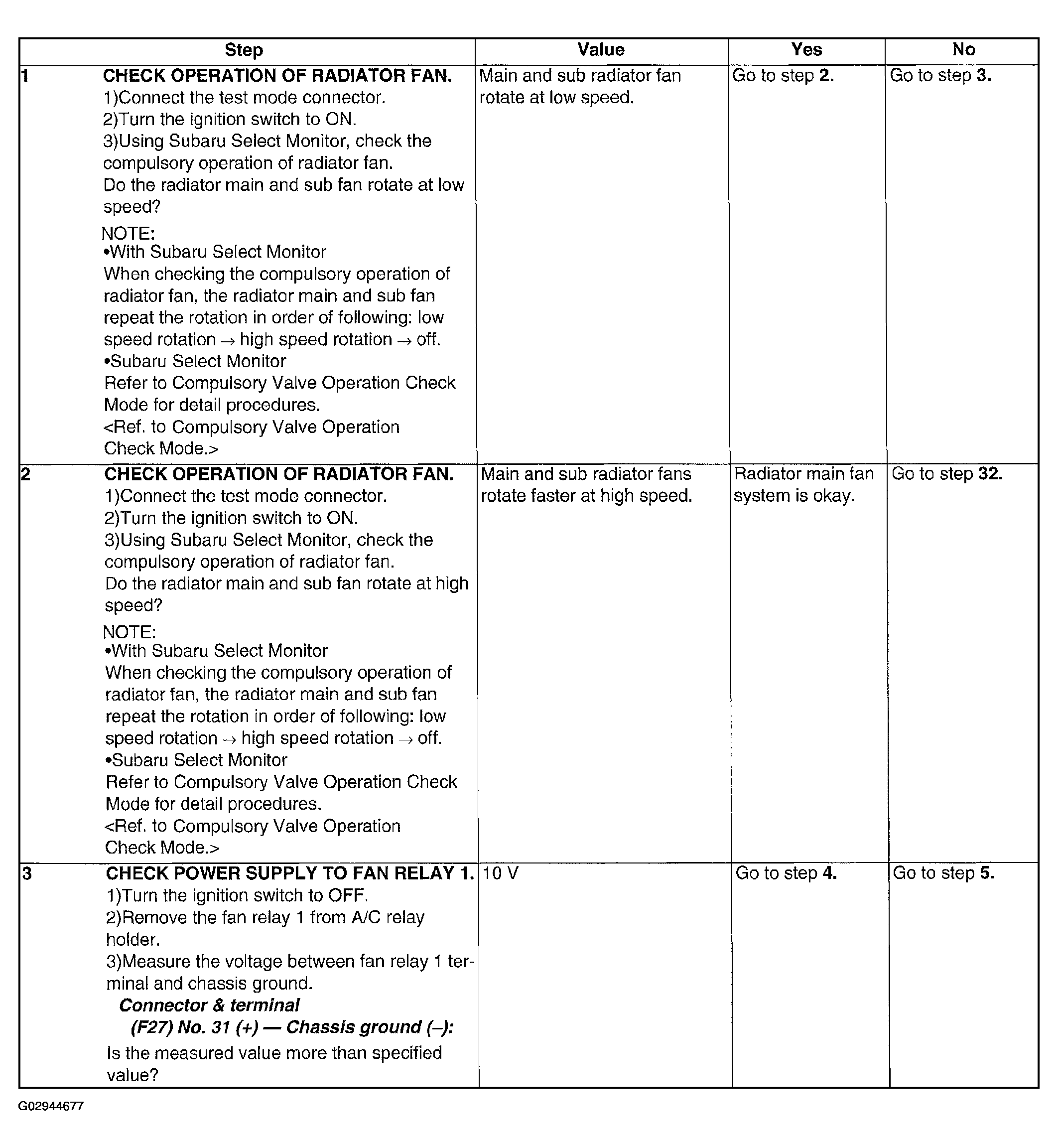

Fig 1: Radiator Fan System Inspection Procedure (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

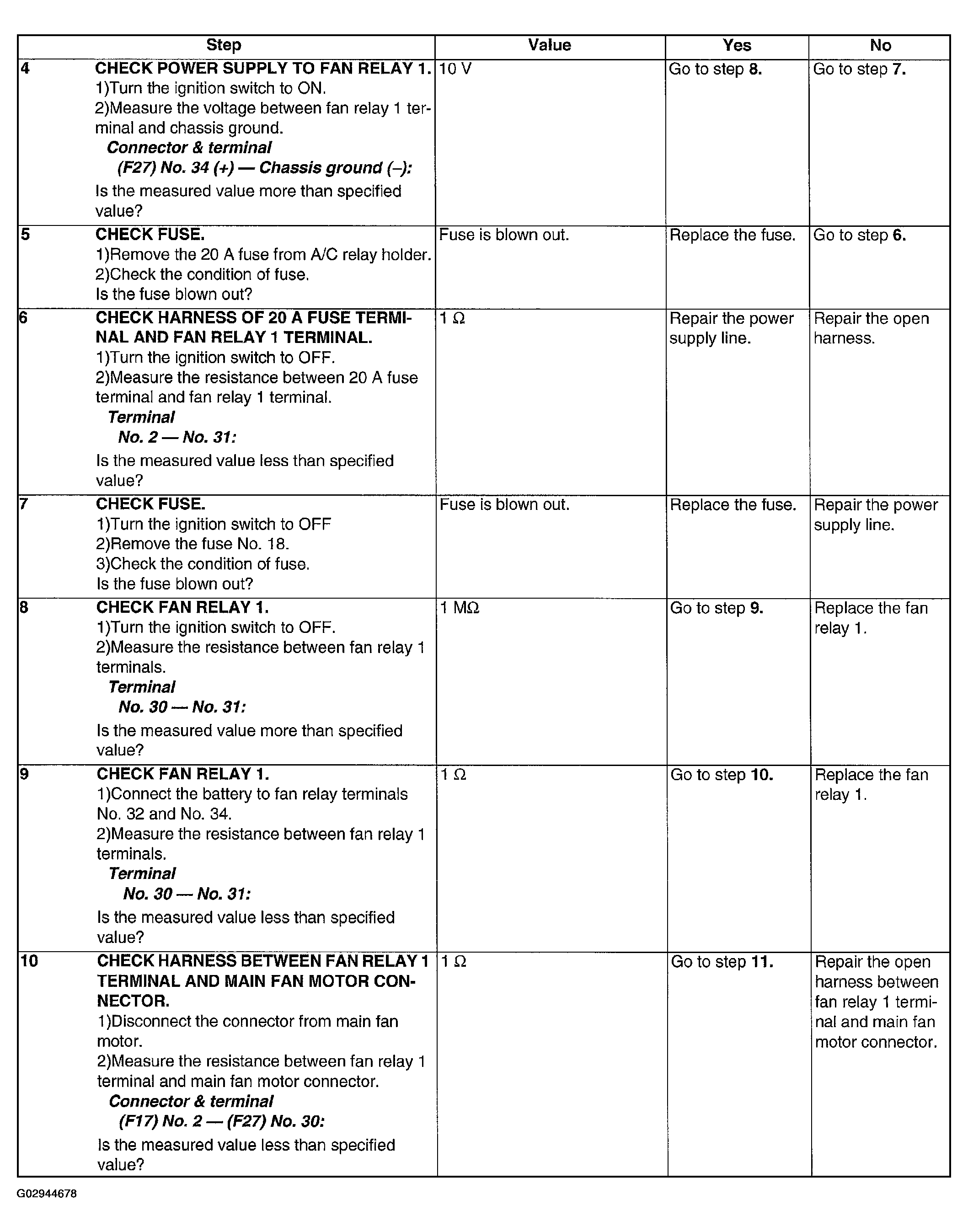

Fig 2: Radiator Fan System Inspection Procedure (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

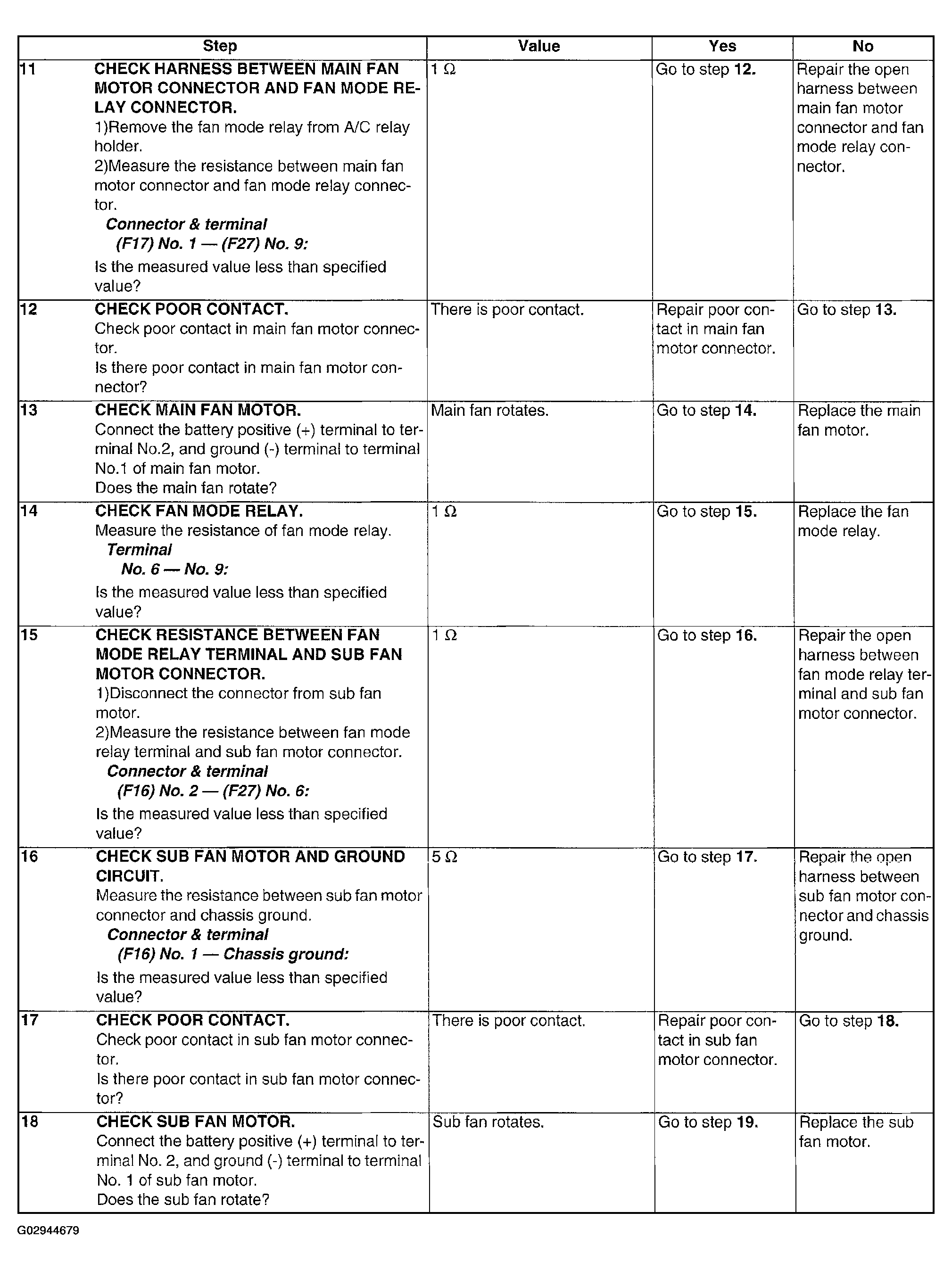

Fig 3: Radiator Fan System Inspection Procedure (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

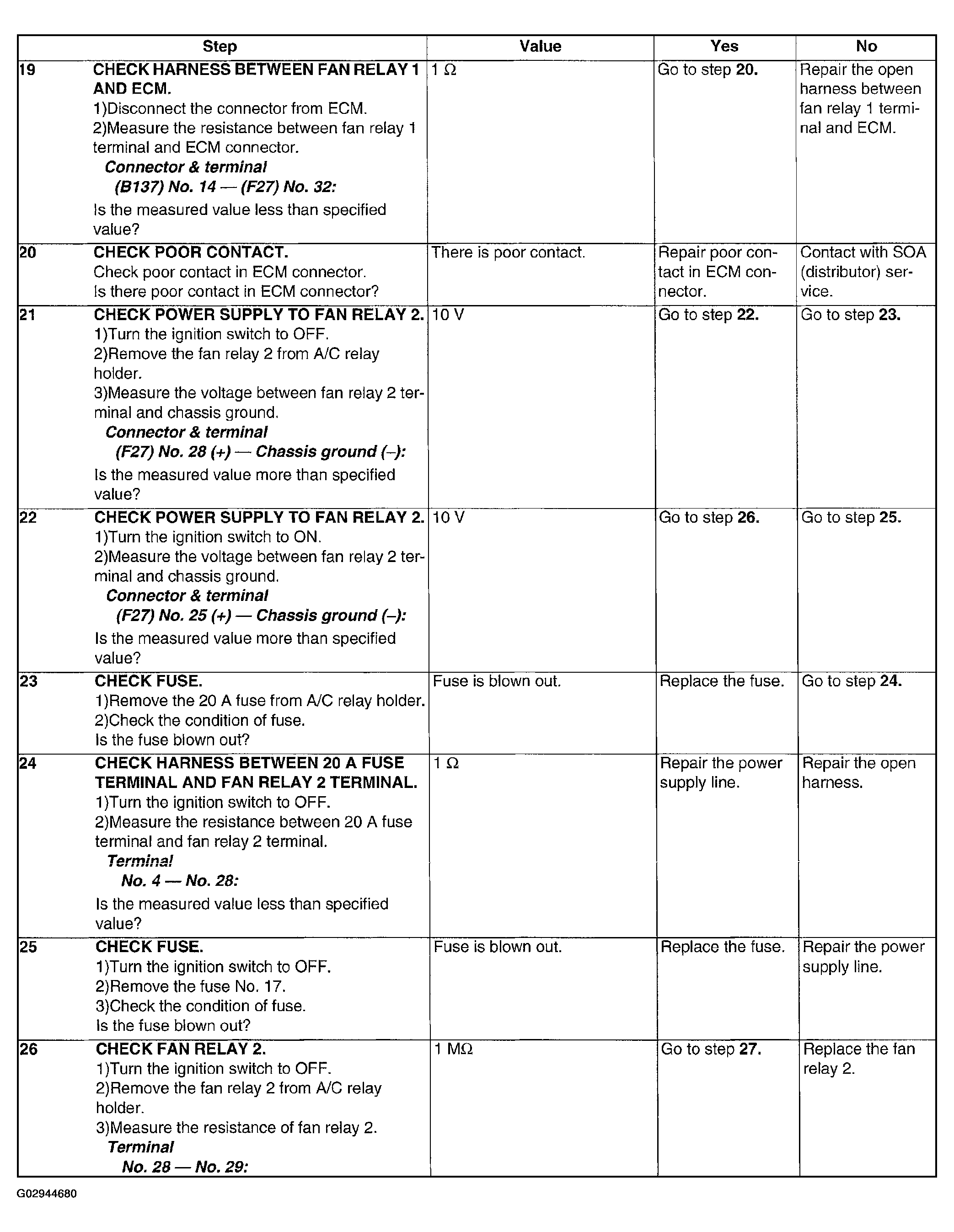

Fig 4: Radiator Fan System Inspection Procedure (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

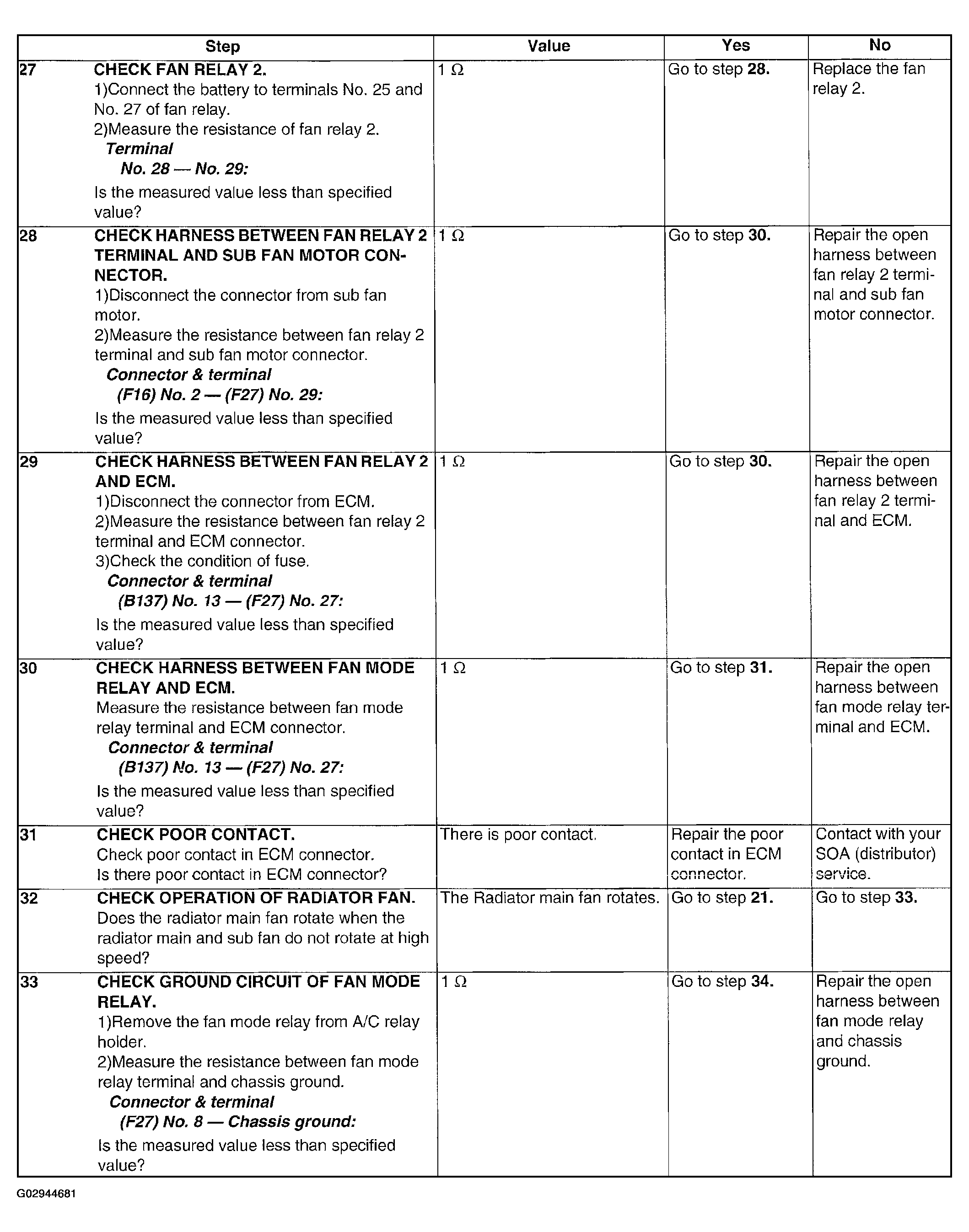

Fig 5: Radiator Fan System Inspection Procedure (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

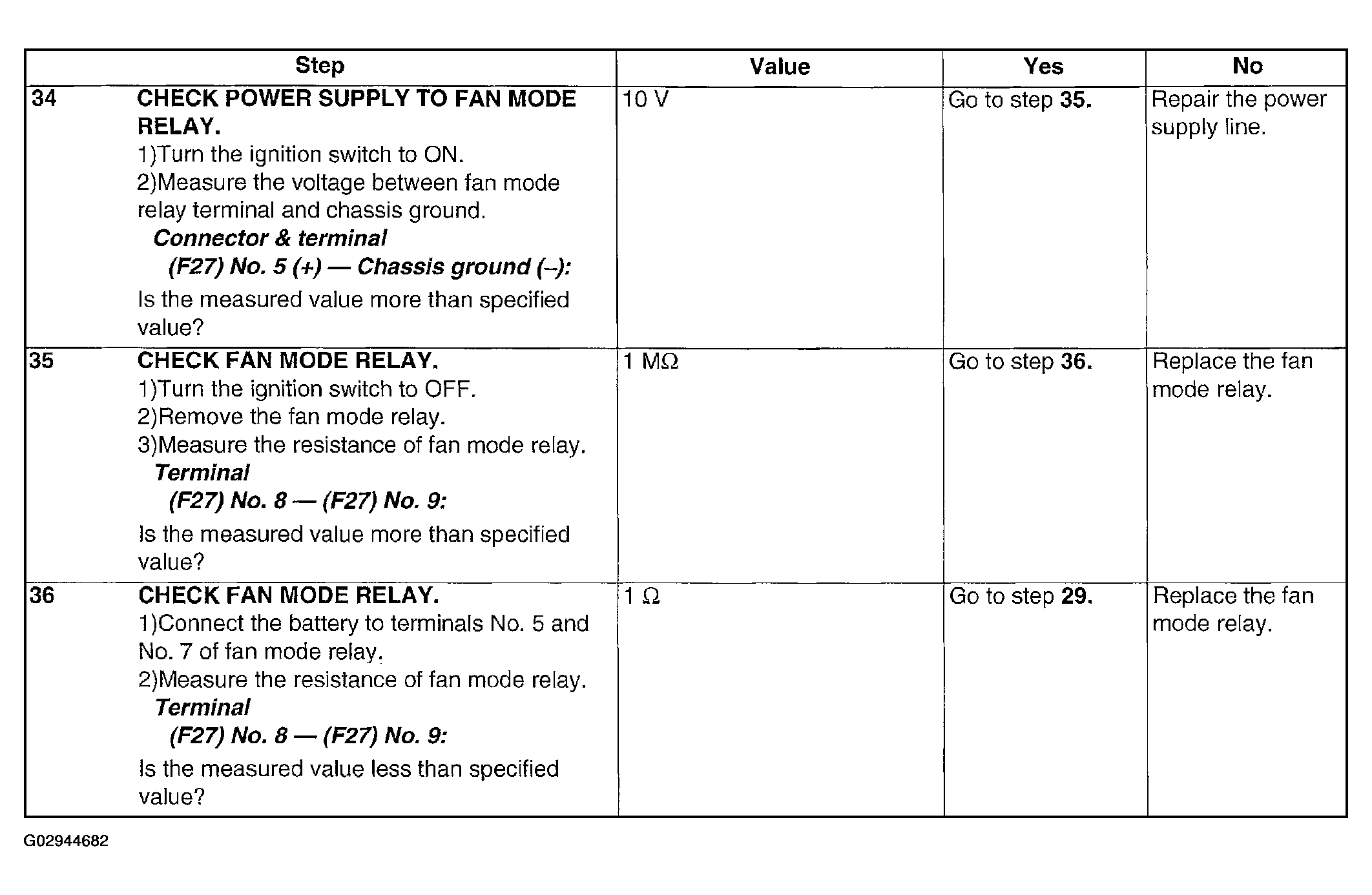

Fig 6: Radiator Fan System Inspection Procedure (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Inspection by your Subaru distributor is required, because probable cause is deterioration of multiple parts.
