Forester X, Automatic
›
Repair and Diagnosis
›
Engine Mechanical
›
Cooling Fan
›
Cooling
›
Radiator Fan System
›
Schematic
Radiator Fan System: Schematic

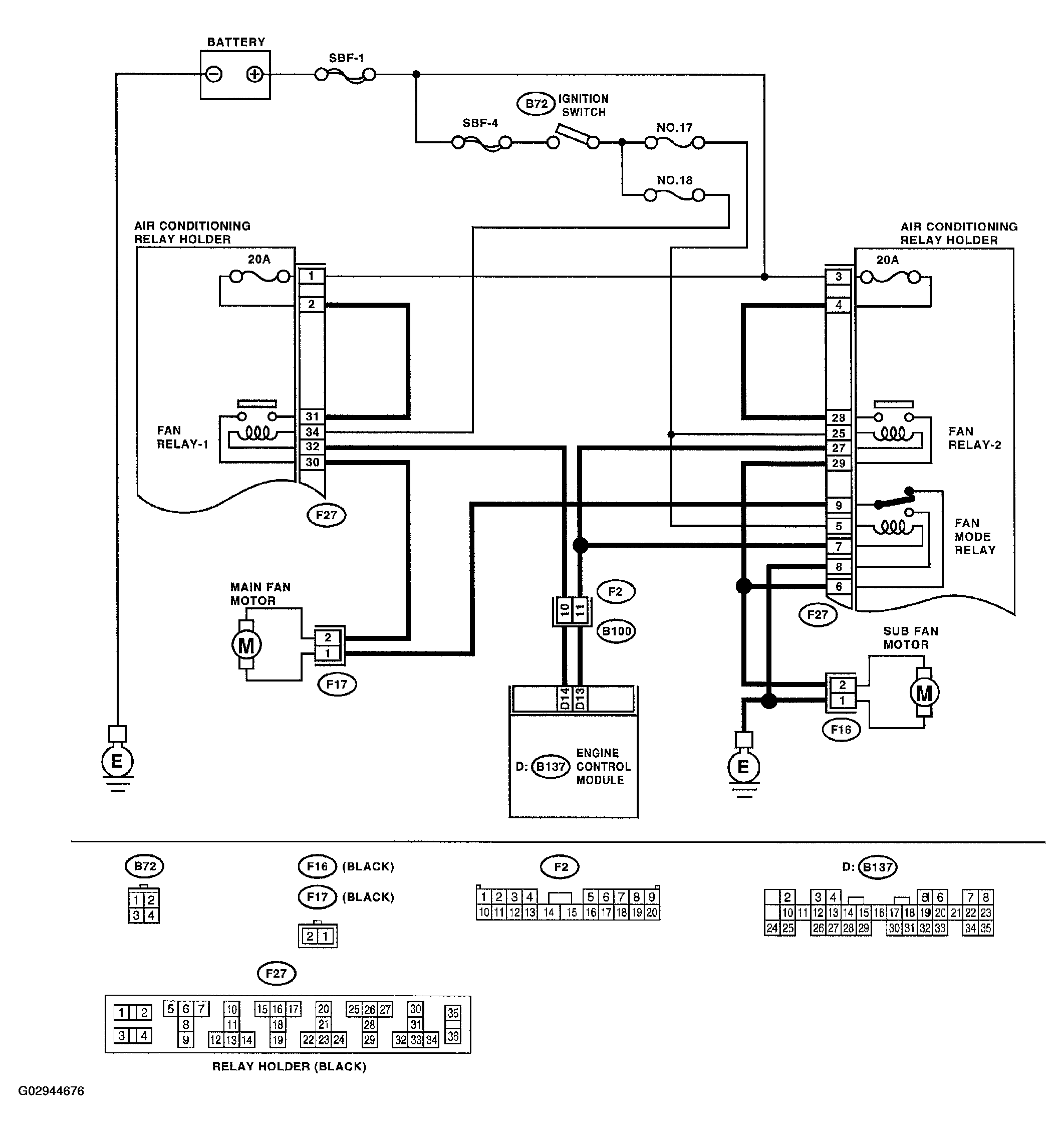

Fig 1: Radiator Fan System Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
