Cooling Fan: Cooling: Radiator: Removal

Set the vehicle on a lift.
Disconnect the ground cable from battery.

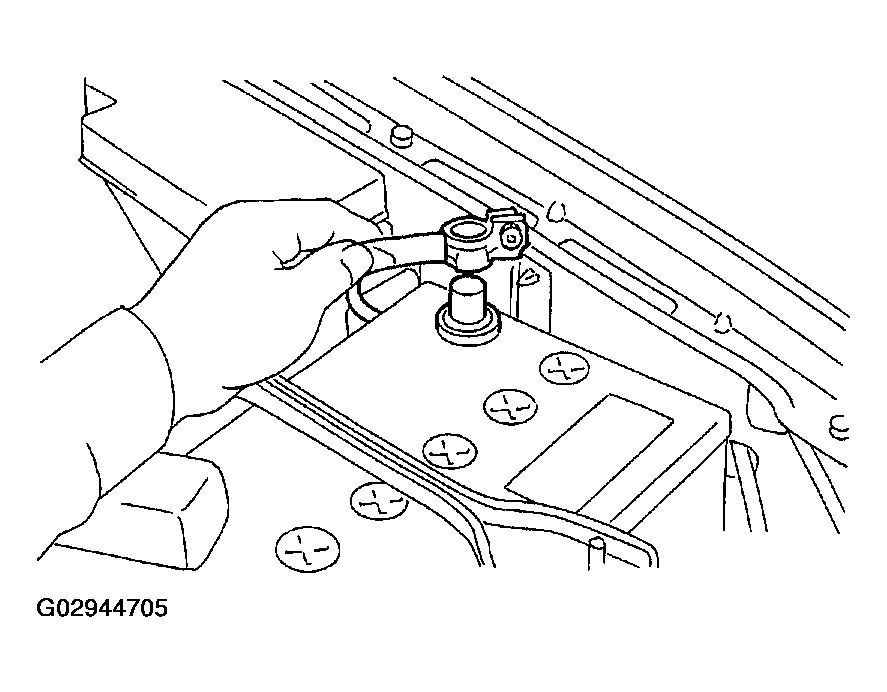

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the under cover.
Drain the engine coolant completely. Refer to DRAINING OF ENGINE COOLANT , Engine Coolant.
Disconnect the connectors of radiator main fan motor (A) and sub fan motor (B).

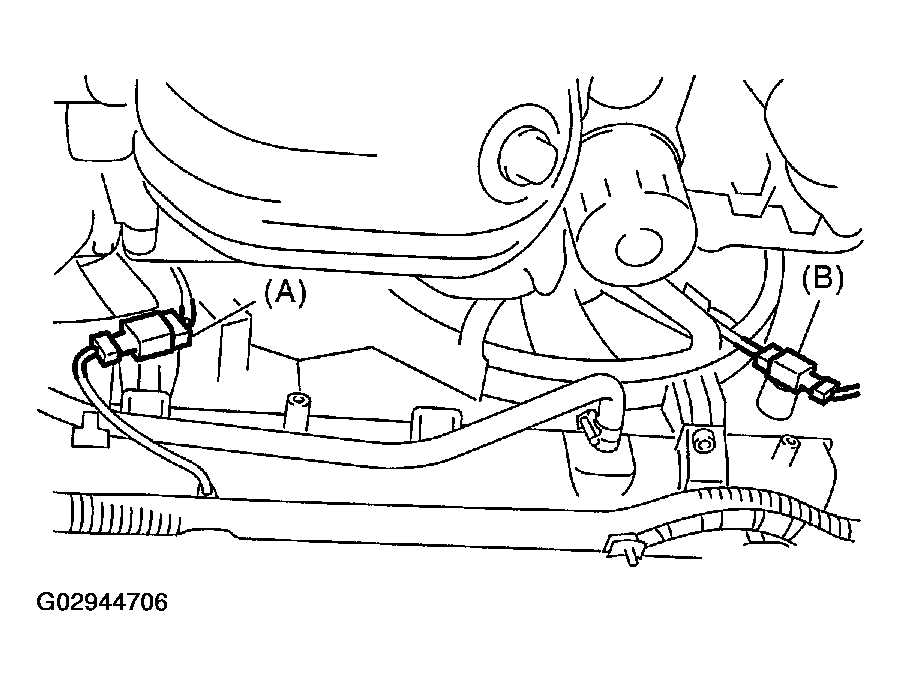

Fig 2: Disconnecting Connectors
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the radiator outlet hose from water pump.

Fig 3: Disconnecting Radiator Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ATF cooler hoses from radiator. (AT vehicles)
Cap the hose and pipe ends to prevent ATF from leaking.

Fig 4: Disconnecting ATF Cooler Hoses
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Disconnect the over flow hose.
Remove the reservoir tank.

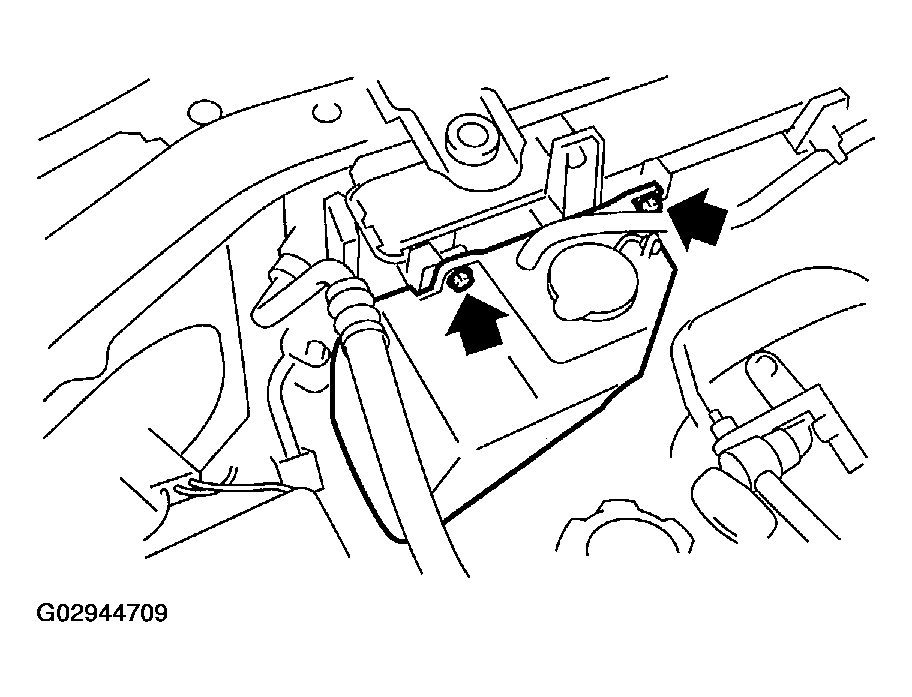

Fig 5: Removing Reservoir Tank
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the radiator inlet hose from radiator.

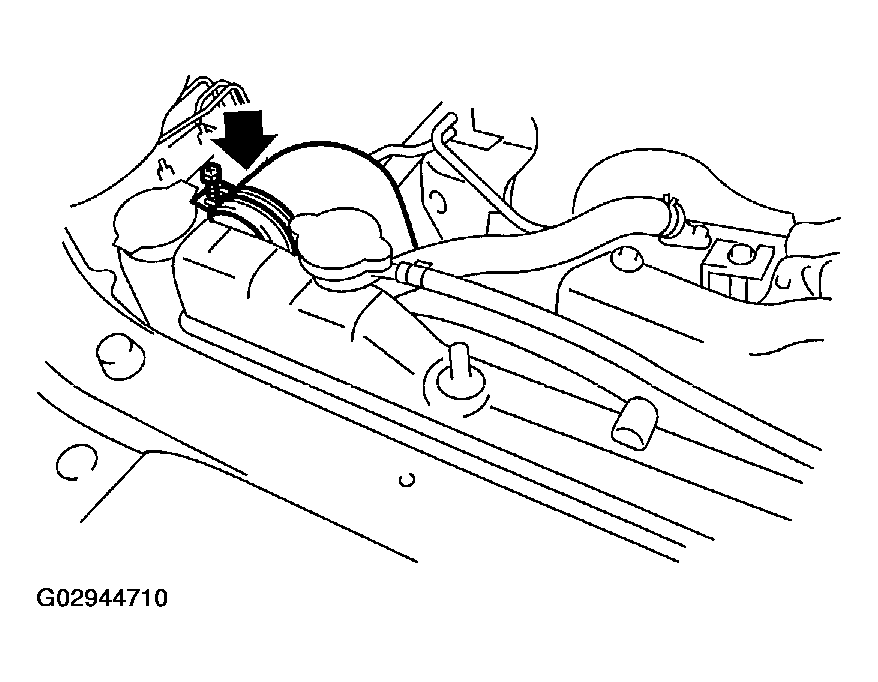

Fig 6: Disconnecting Radiator Inlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator upper brackets.

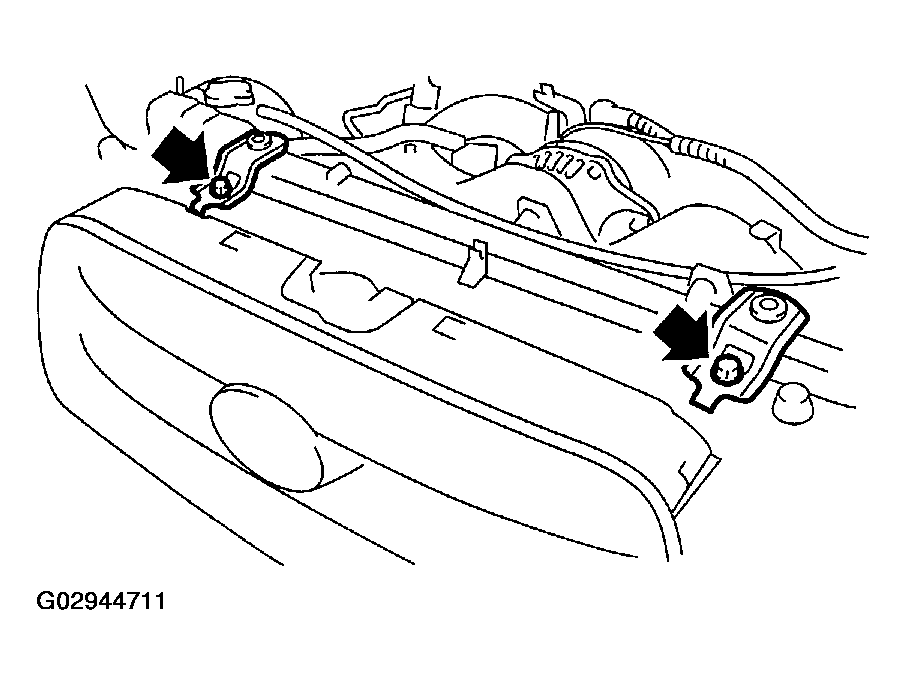

Fig 7: Removing Radiator Upper Brackets
Courtesy of SUBARU OF AMERICA, INC.
Detach the power steering hose from clip on radiator.

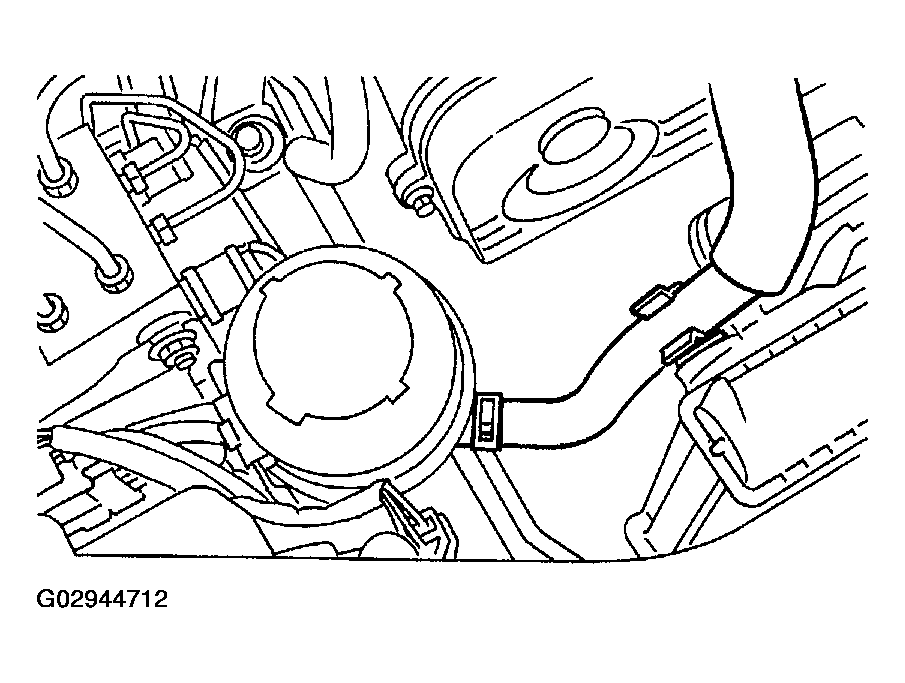

Fig 8: Connecting Power Steering Hose From Clip
Courtesy of SUBARU OF AMERICA, INC.
Lift the radiator up and away from the vehicle.
