Removal
Fuel Damper Valve: Removal
Release the fuel pressure. Refer to
RELEASING OF FUEL PRESSURE
, OPERATION, Fuel.
Remove the fuel damper valve from the fuel return line.

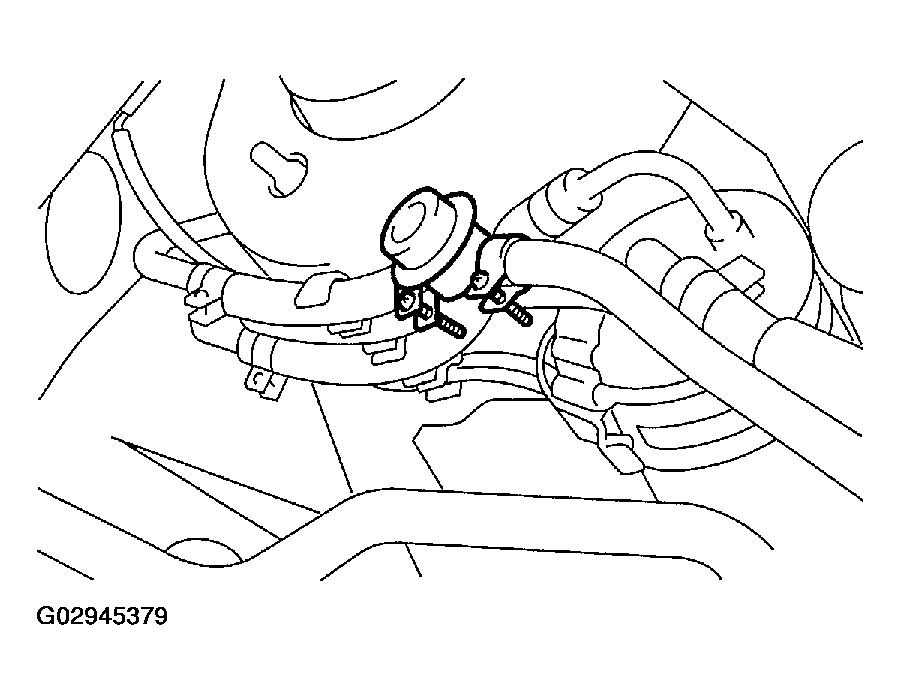

Fig 1: Removing Fuel Damper Valve From Fuel Return Line
Courtesy of SUBARU OF AMERICA, INC.
