Pressure Sensor: Removal

  1. Disconnect the ground cable from battery.

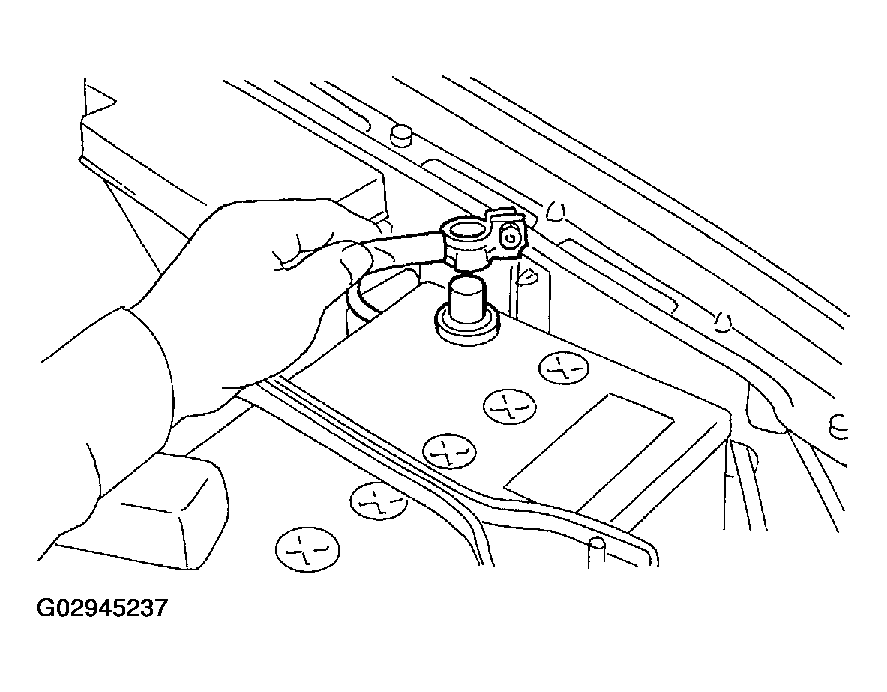

    Fig 1: Disconnecting Ground Cable From Battery
    G02945237Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from the pressure sensor.

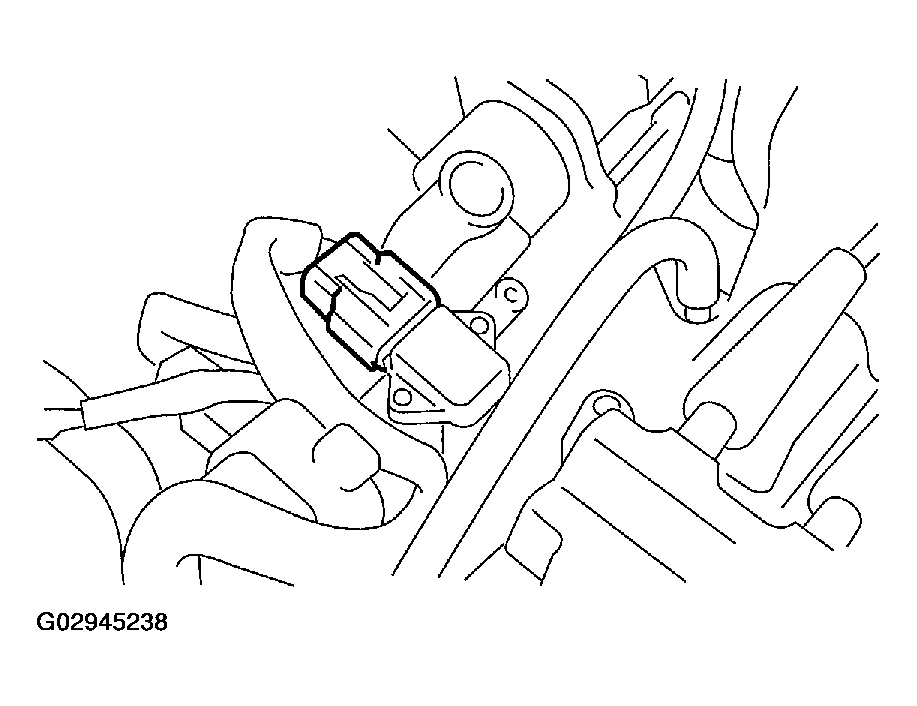

    Fig 2: Identifying Connector For Disconnection
    G02945238Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the pressure sensor.

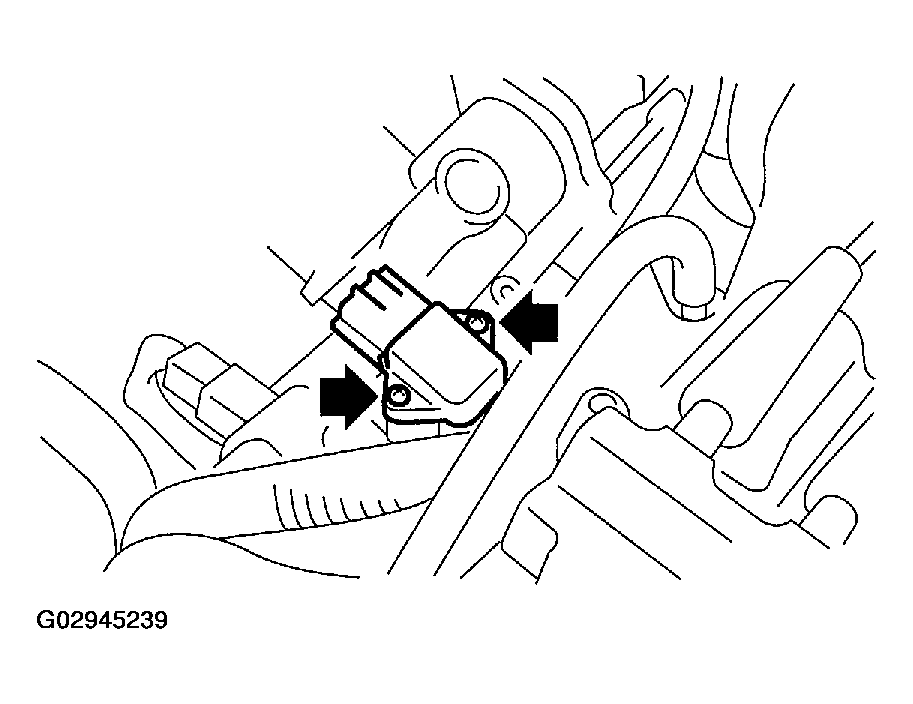

Fig 3: Locating Screws For Removing Pressure Sensor
G02945239Courtesy of SUBARU OF AMERICA, INC.
