Section 2 (Clutch System): Flywheel: Installation

WARNING: This page is about a different variant/trim than selected.

Install the flywheel and ST.
ST 498497100 CRANKSHAFT STOPPER

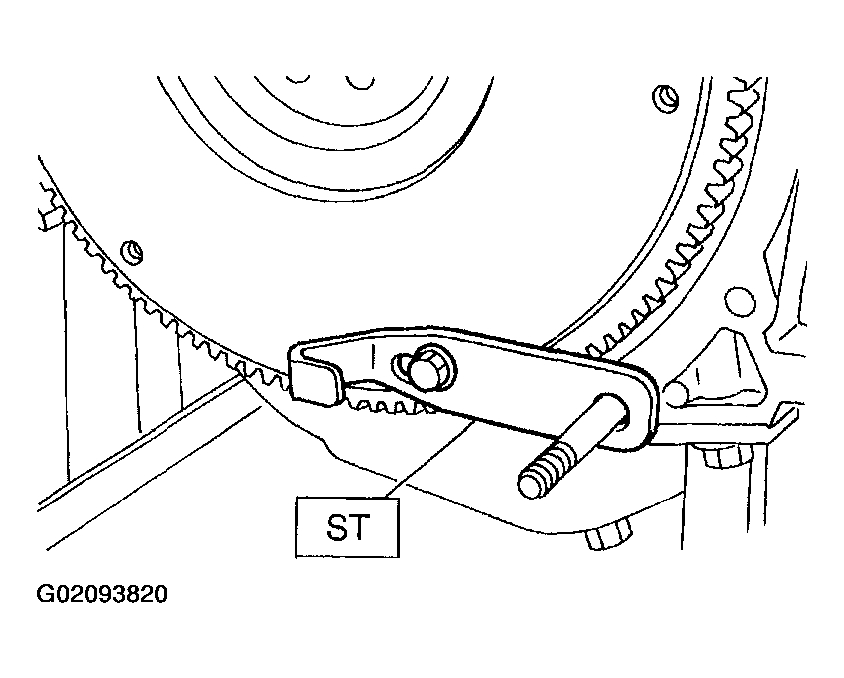

Fig 1: Installing Flywheel Using ST
Courtesy of SUBARU OF AMERICA, INC.
Tighten the flywheel attaching bolts to the specified torque.
NOTE: Tighten the flywheel installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross fashion.
1. Tightening torque: 72 N.m (7.3 kgf-m, 52.8 ft-lb)

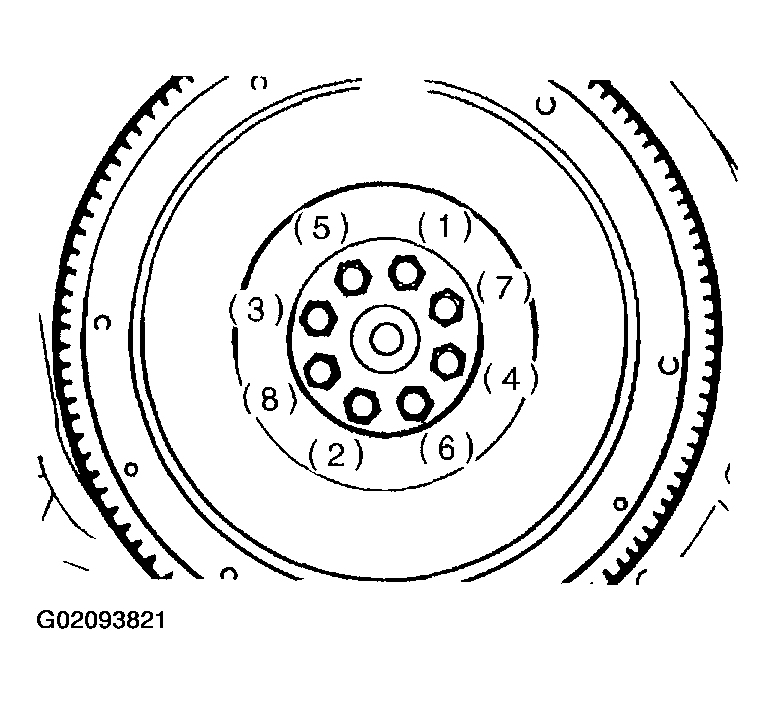

Fig 2: Tightening Flywheel Attaching Bolts In Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the clutch disc and cover. Refer to INSTALLATION , Clutch Disc and Cover.
Install the transmission assembly. Refer to INSTALLATION , Manual Transmission Assembly.
