Operating Cylinder: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the air cleaner case and air intake duct.
Refer to
REMOVAL
, Air Cleaner Case and
REMOVAL
, Air Intake Duct.

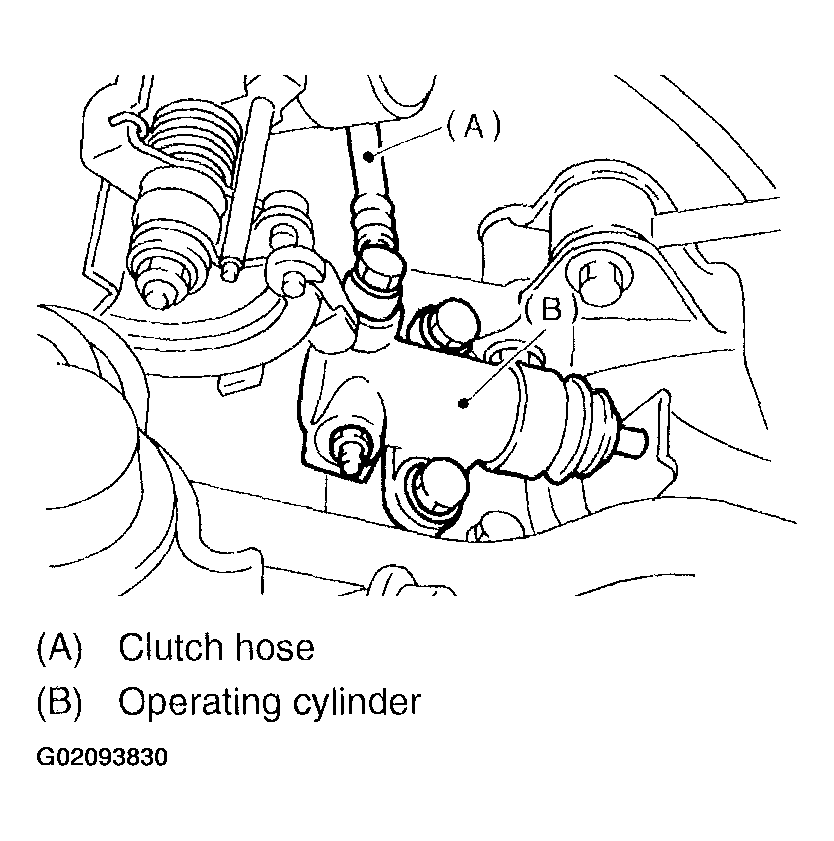

- Remove the clutch hose from operating cylinder.
NOTE:
Cover the hose joint to prevent clutch fluid from flowing out.
Courtesy of SUBARU OF AMERICA, INC.

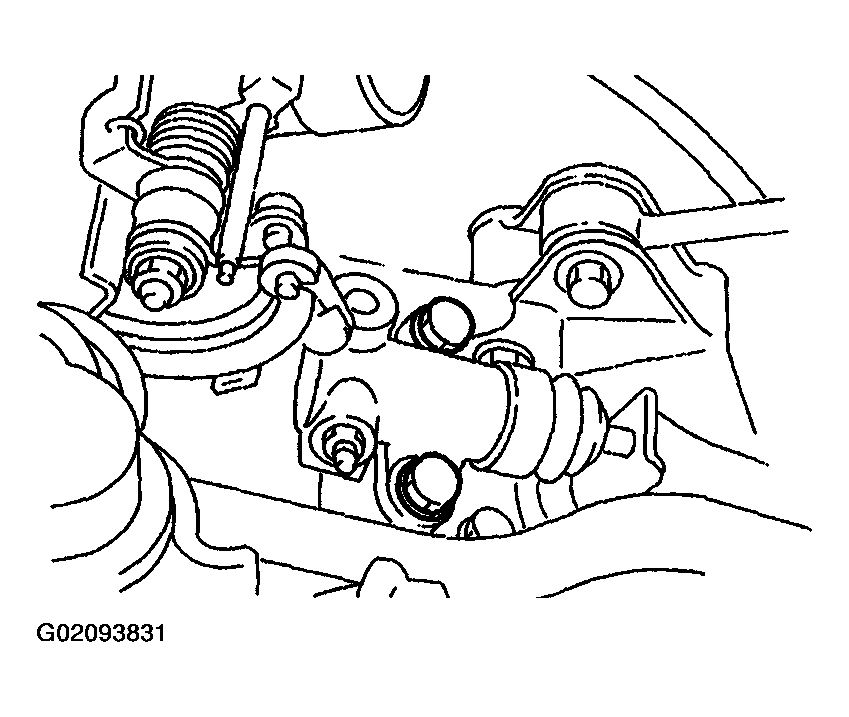

- Remove the operating cylinder from transmission.
Courtesy of SUBARU OF AMERICA, INC.
