Read Diagnostic Trouble Code

Prepare the Subaru Select Monitor kit.

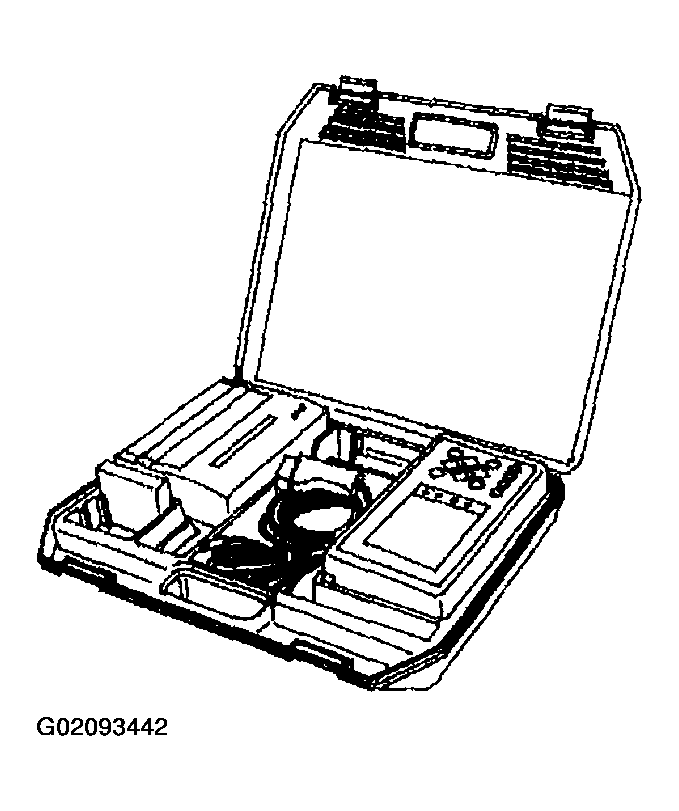

Fig 1: Identifying Subaru Select Monitor Kit
Courtesy of SUBARU OF AMERICA, INC.
Connect the diagnosis cable to Subaru Select Monitor.
Insert the cartridge into Subaru Select Monitor. Refer to PREPARATION TOOL , General Description.

Fig 2: Inserting Cartridge Into Subaru Select Monitor
Courtesy of SUBARU OF AMERICA, INC.
Connect the Subaru Select Monitor to data link connector.
1. Data link connector located in the lower portion of instrument panel (on driver's side).

  Fig 3: Locating Data Link Connector (Driver's Side)
  Courtesy of SUBARU OF AMERICA, INC.
2. Connect the diagnosis cable to data link connector.
NOTE: Do not connect scan tools except for Subaru Select Monitor and OBD-II general scan tool.
Turn the ignition switch to ON (engine OFF) and Subaru Select Monitor switch to ON.

Fig 4: Turning Ignition Switch To ON (Engine OFF)
Courtesy of SUBARU OF AMERICA, INC.
On the << Main Menu >> display screen, select the {Each System Check} and press [YES] key.
On the << System Selection Menu >> display screen, select the {Transmission Control System} and press [YES] key.
Press the [YES] key after displayed information of transmission type.
On the << Transmission Diagnosis >> display screen, select the {Diagnostic Code(s) Display} and press [YES] key.
On the << Diagnostic Code(s) Display >> display screen, select the {Latest Diagnostic Code(s)} or {Memorized Diagnostic Code(s)} and press [YES] key.

NOTE:

For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
For detailed concerning the diagnostic trouble codes (DTC), refer to the LIST OF DIAGNOSTIC TROUBLE CODE (DTC) .
