Electrical Specification

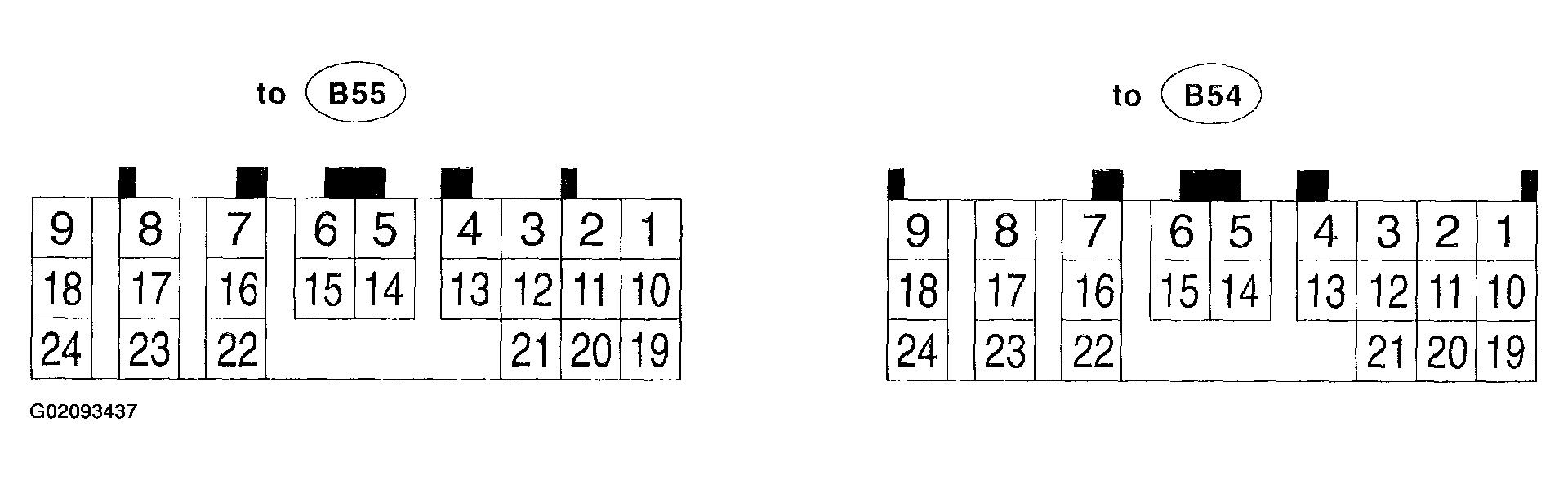

Fig 1: Identifying TCM I/O Signal Terminals

Courtesy of SUBARU OF AMERICA, INC.

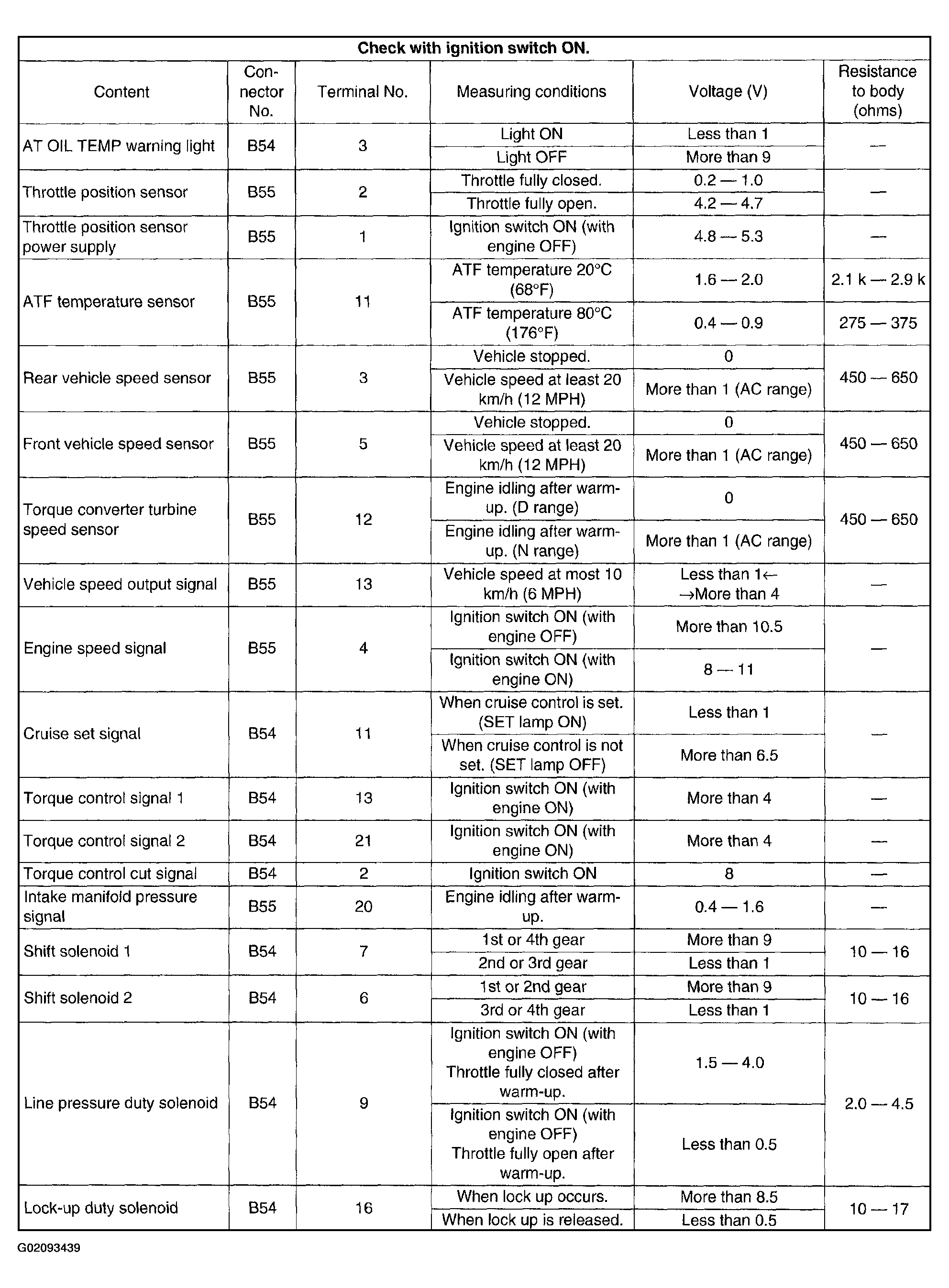

Fig 2: TCM I/O Signal Electrical Specifications Chart (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

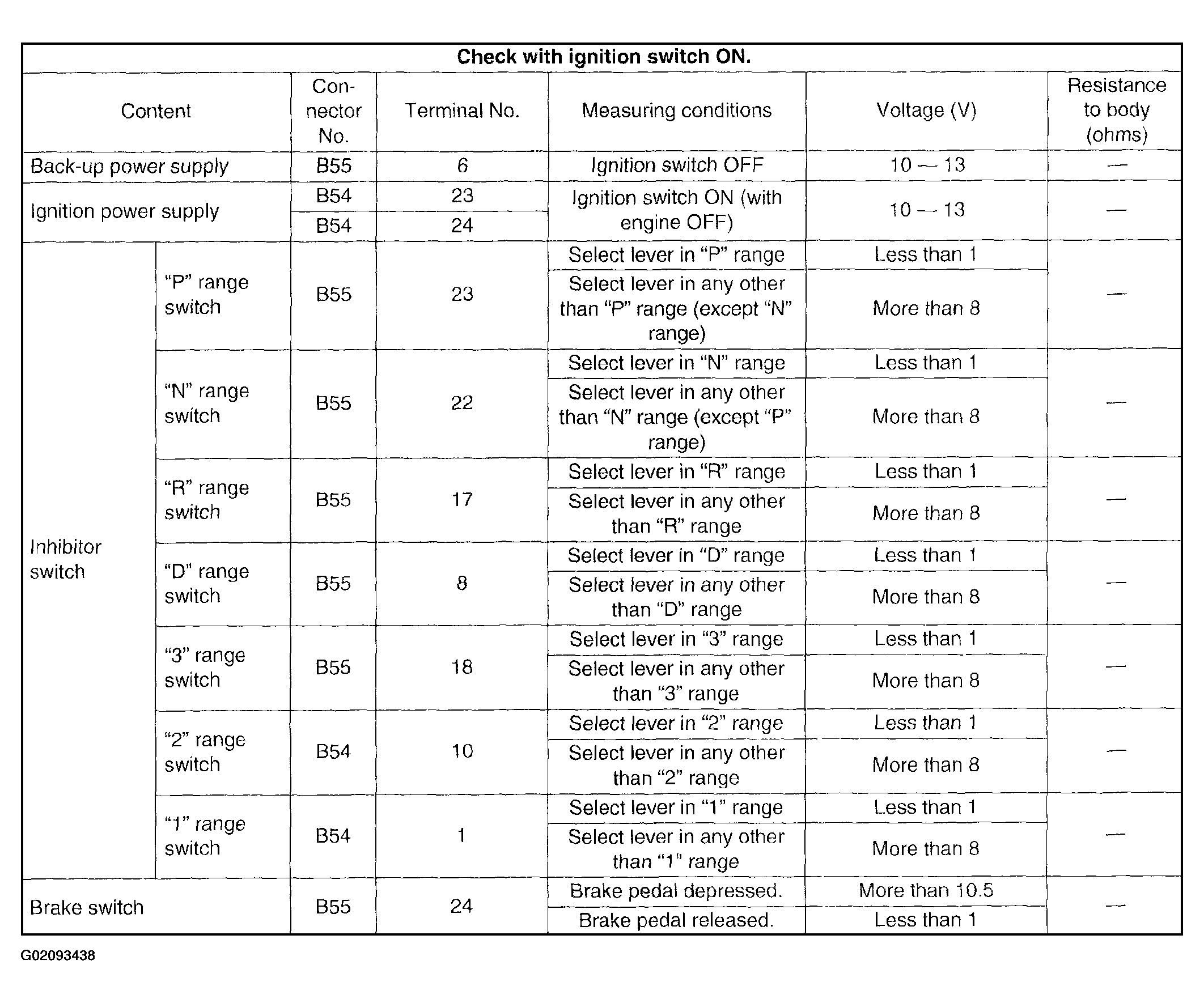

Fig 3: TCM I/O Signal Electrical Specifications Chart (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

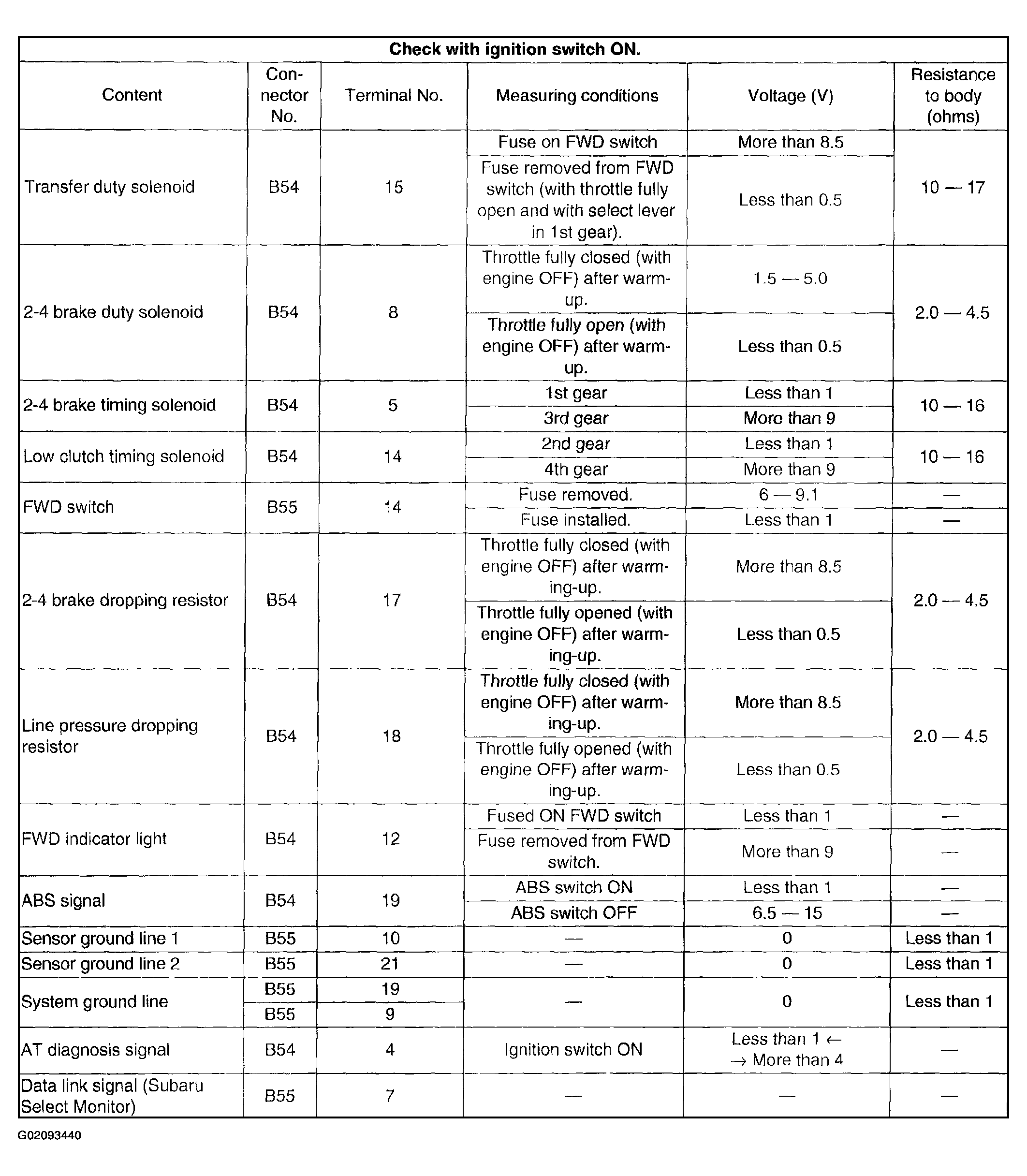

Fig 4: TCM I/O Signal Electrical Specifications Chart (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
