Automatic Transmission - Mechanism & Function
›
Electrohydraulic Control System
›
Control Item
Control Item

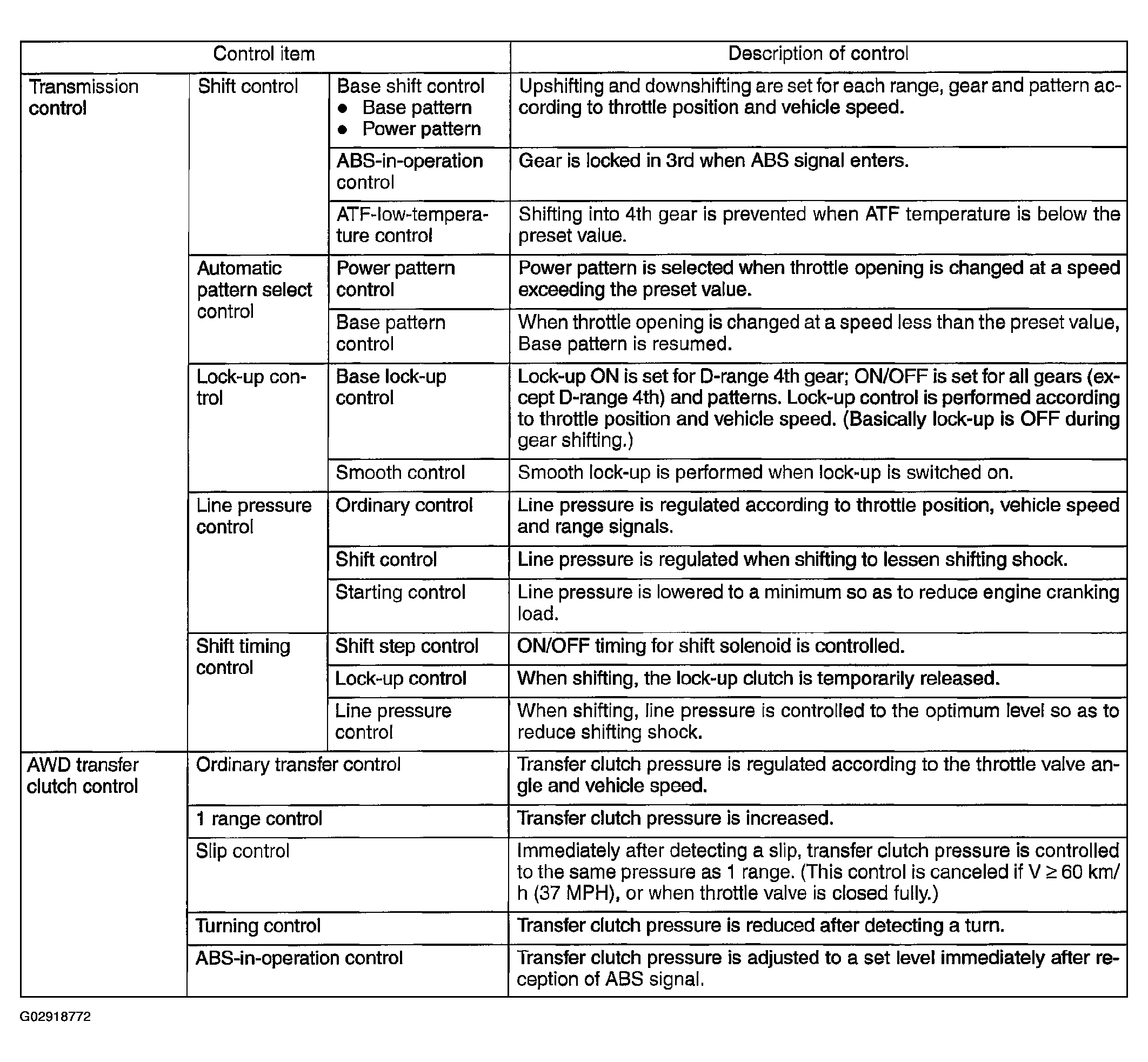

Fig 1: Electrohydraulic Control System Control Item Description Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
