Automatic Transmission - Mechanism & Function
›
Schematic Drawing
›
1ST Speed Of 1 Range
1ST Speed Of 1 Range

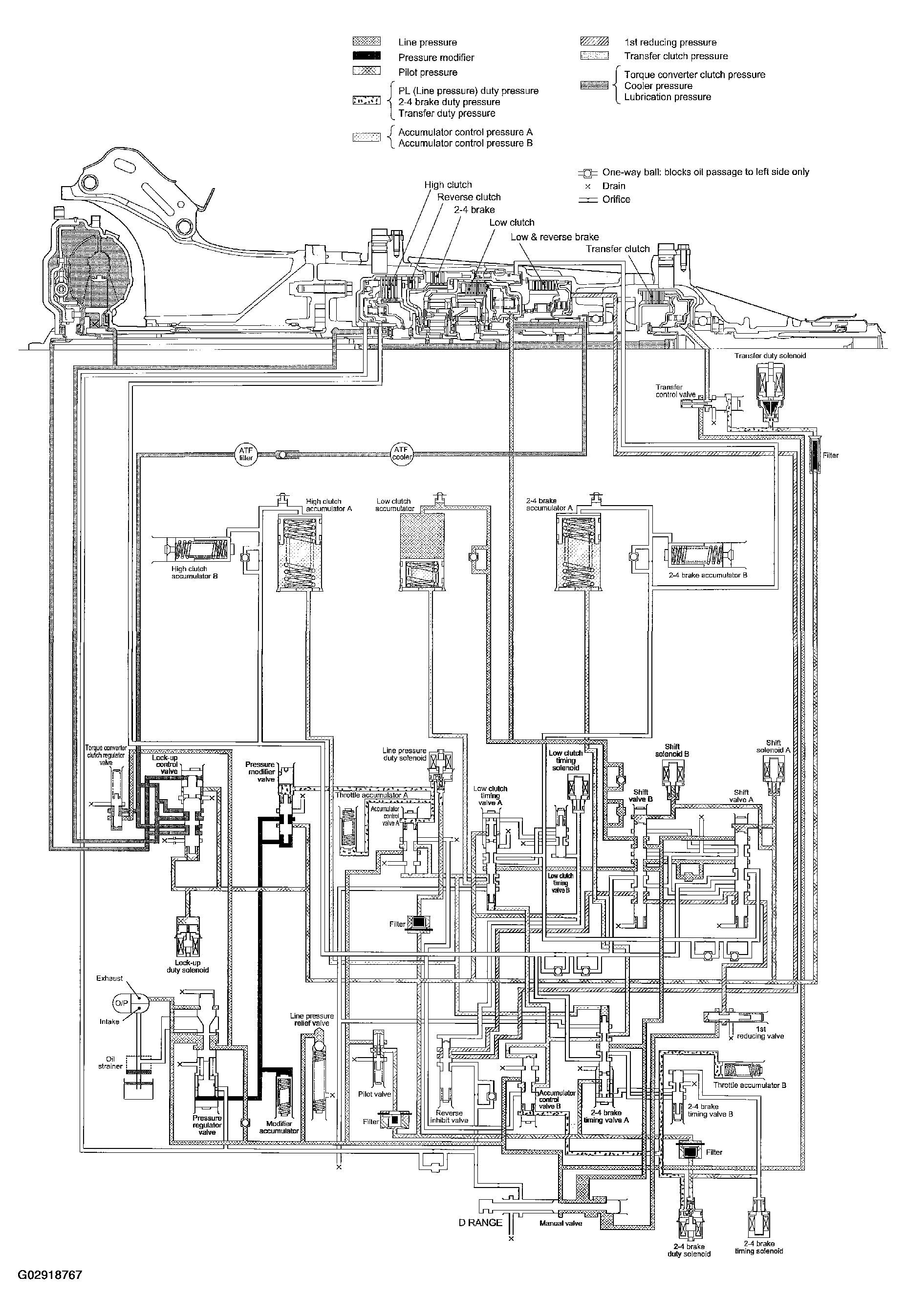

Fig 1: Hydraulic Schematic Diagram - 1st Speed Of 1 Range
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
