Automatic Transmission - Mechanism & Function
›
Schematic Drawing
›
R Range
R Range

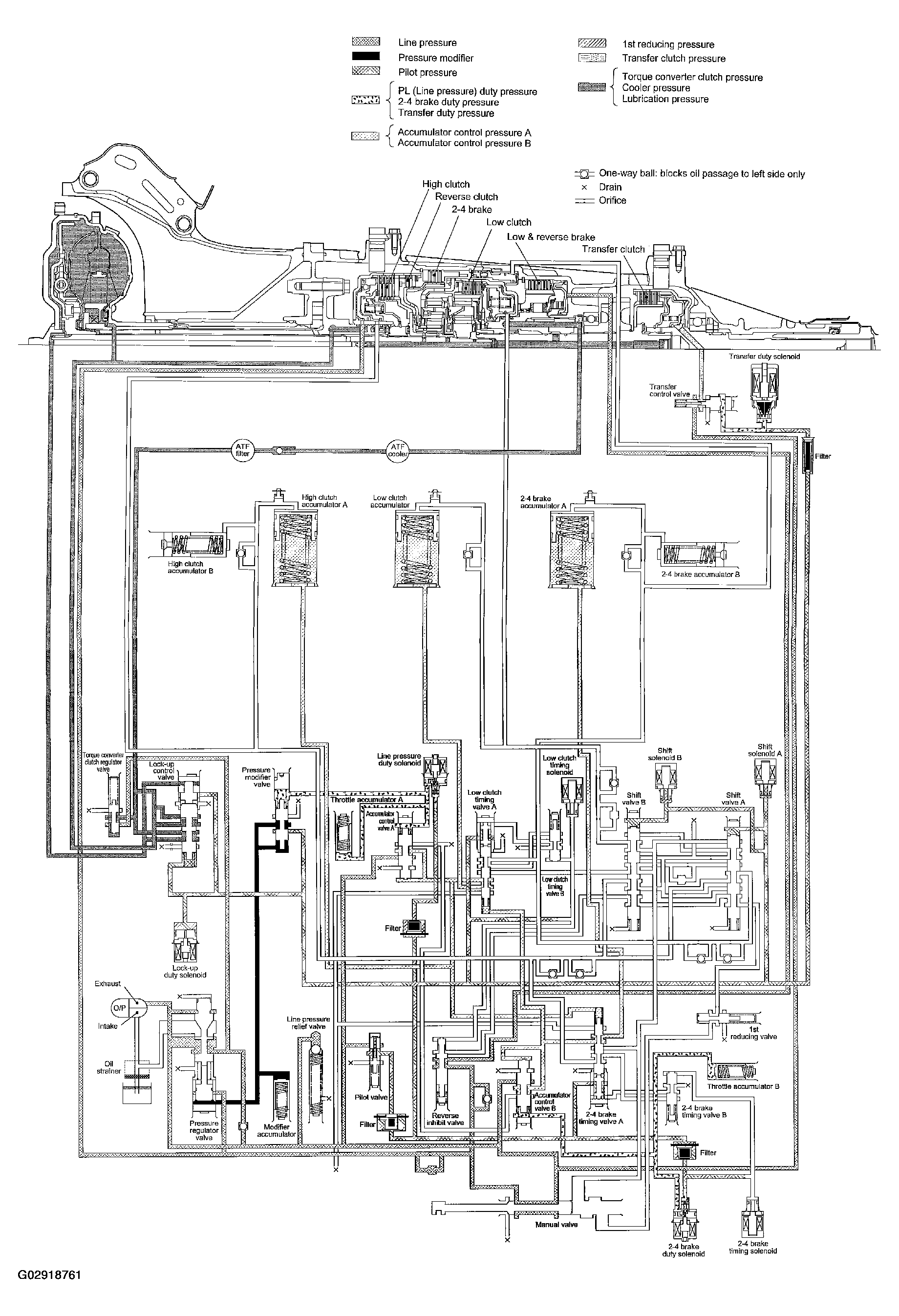

Fig 1: Hydraulic Schematic Diagram - R Range
Courtesy of SUBARU OF AMERICA, INC.
