Automatic Transmission - Mechanism & Function
›
Transmission Control Module (TCM)
›
System Diagram
System Diagram

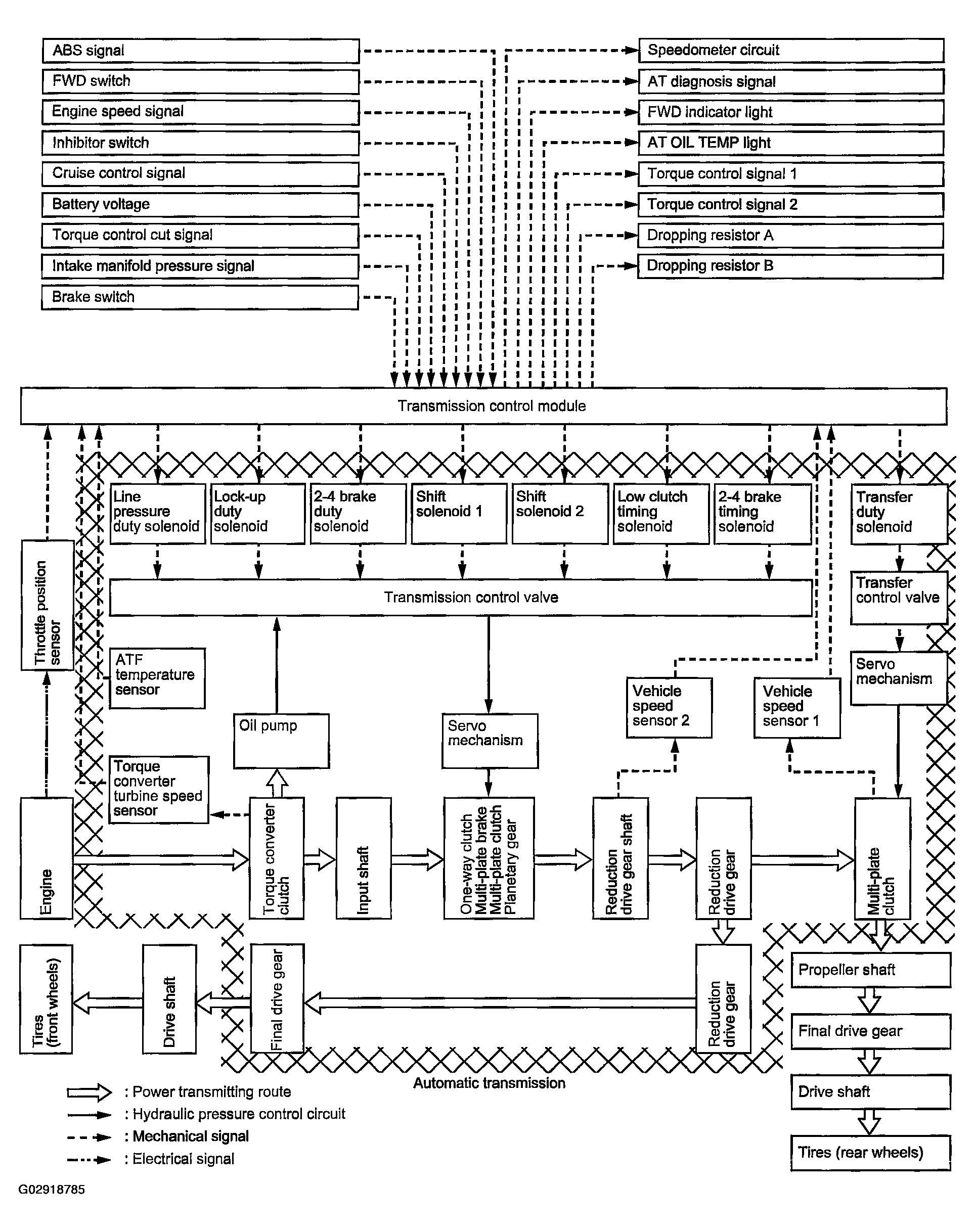

Fig 1: System Diagram - Transmission Control Module (TCM)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
