Automatic Transmission
›
General Description
›
Component
›
Transmission Case And Control Device
Transmission Case And Control Device

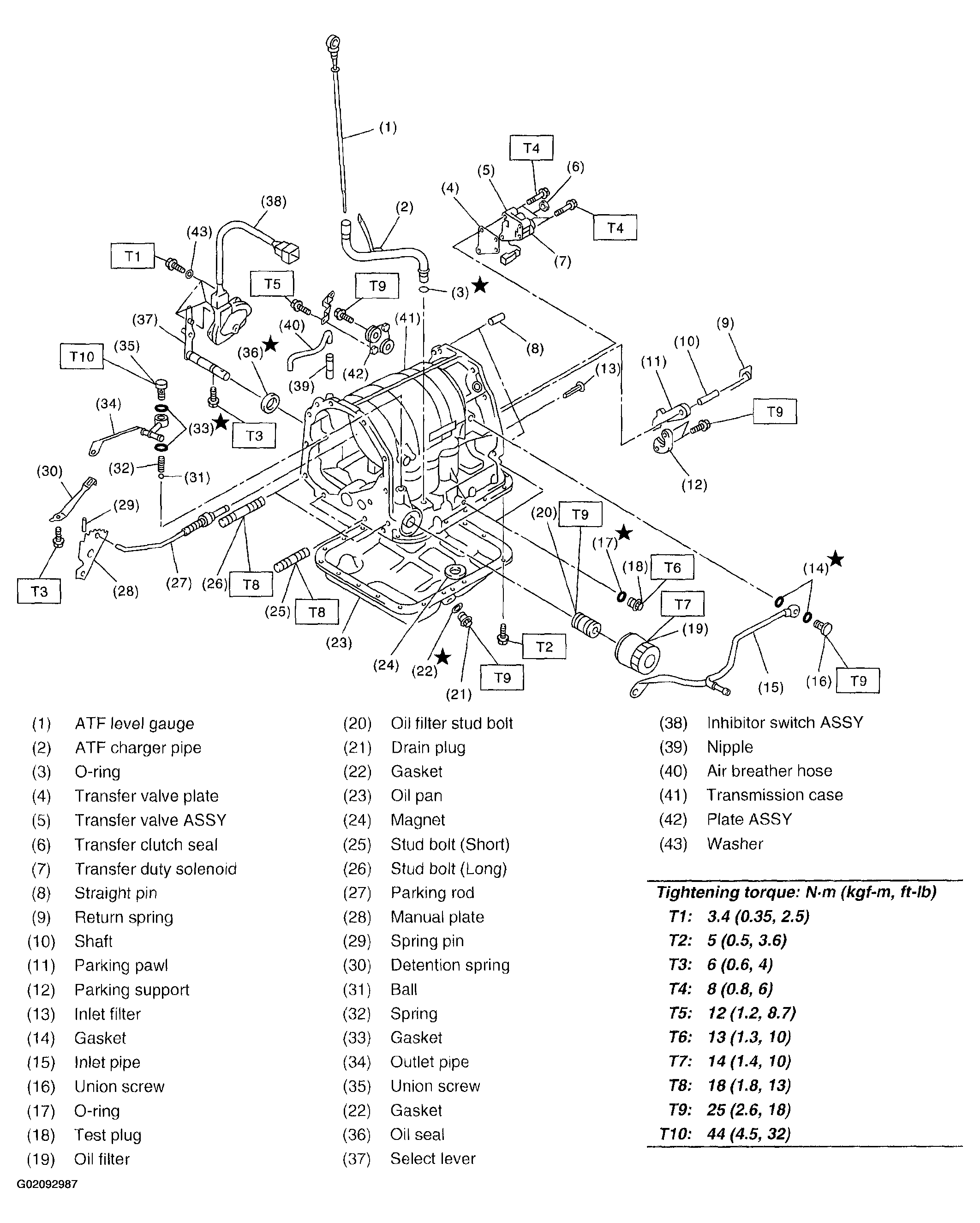

Fig 1: Exploded View Of Transmission Case & Control Device With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
