Automatic Transmission
›
General Description
›
Component
›
Transmission Mounting
Transmission Mounting

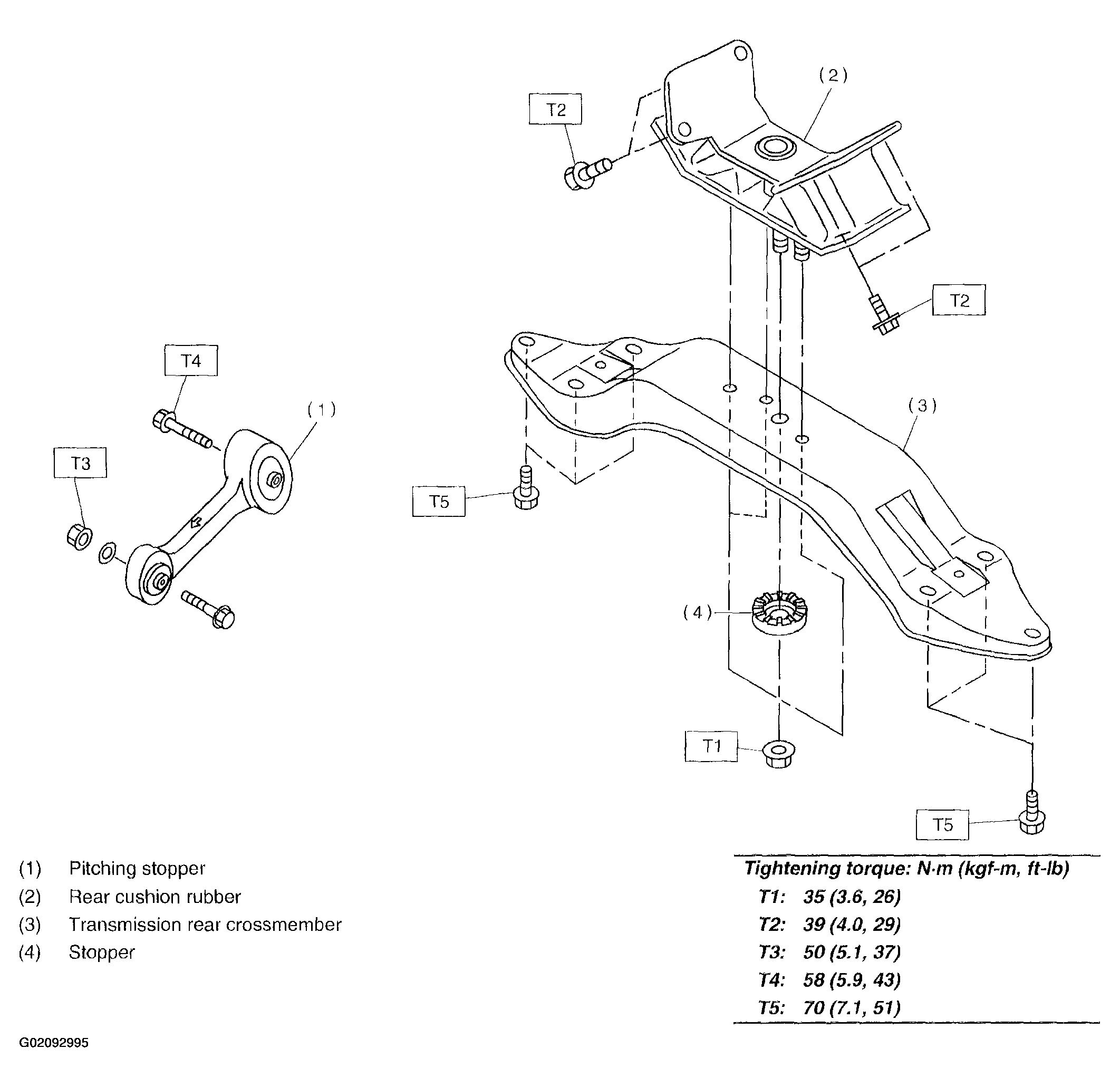

Fig 1: Exploded View Of Transmission Mounting With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
